Samsung J-2[j200g] Dead Port {SEC S5PC2 } Recovered Done By Ufi Box

174877s

174877s

Junior Member
Aug 10, 2018
2
0
India
#3
i have face this error How to solw

Insertion test...
Error: VCCQ overcurrent detected !!!
Aborted

Deepesh Sharma

Deepesh Sharma

Staff member
Super Moderator
Apr 4, 2017
1,173
1,575
India
Sonork ID
100.1614172
#4
i have face this error How to solw

Insertion test...
Error: VCCQ overcurrent detected !!!
Aborted
recheck your jumper wire and check of point vccq,Vcc may be shorted.

Bhavin

Bhavin

Member
Nov 27, 2018
8
1
Sonork ID
5192
#5
Again Fix Samsung J2(J200G) Dead Port -SEC S5PC210 Test B/D
By Reprogram with Ufi-Box

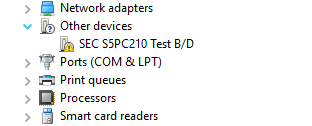

SEC S5PC210 Test B/D Dead Port
proxy.php?image=https%3A%2F%2Fi.postimg.cc%2FFKt3NK3z%2F1.png&hash=b42360d41ed07e96af4ae1d9f40f7ca0

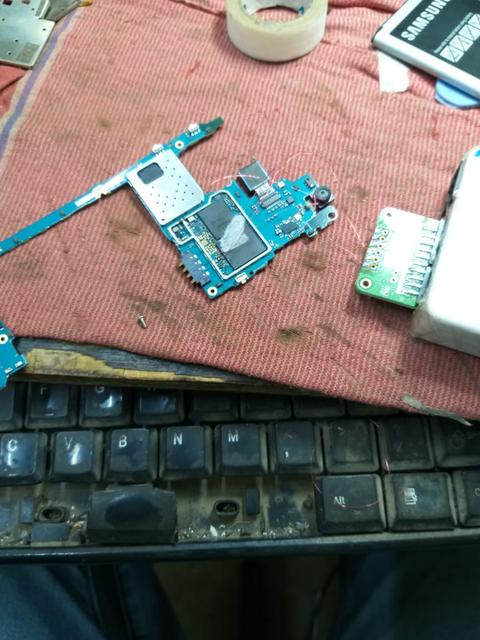

Image-1
proxy.php?image=https%3A%2F%2Fi.postimg.cc%2FcJQYHNBm%2F2.jpg&hash=252988fb63afd5ab73045ec17f15b492

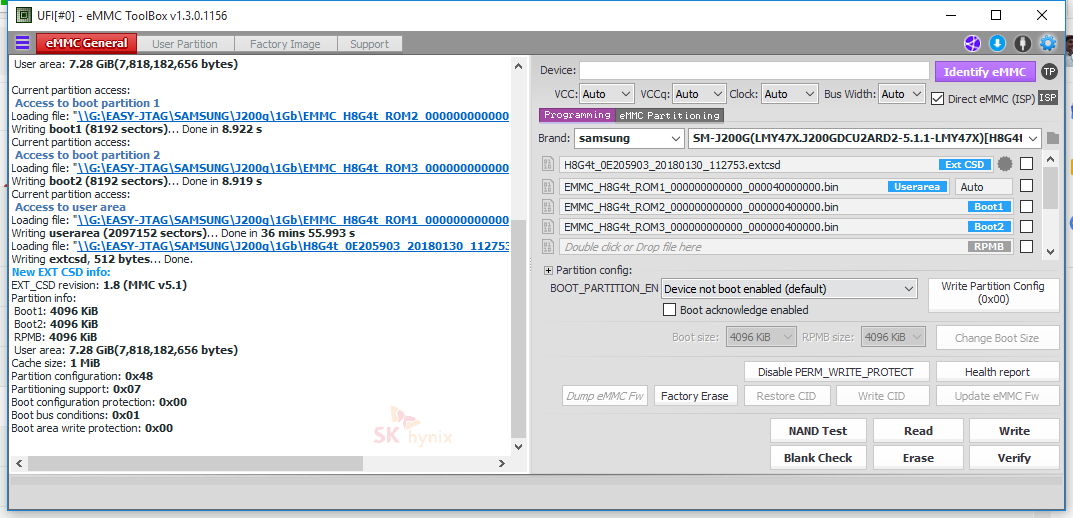

Ufi-Log
proxy.php?image=https%3A%2F%2Fi.postimg.cc%2FgJmhLBMP%2F3.png&hash=23438212ec8906e4ec758f5154a20fa2

Download-Mode
proxy.php?image=https%3A%2F%2Fi.postimg.cc%2F2yXLJjCz%2F5.jpg&hash=5db5de29878044309ad78a497d8814da

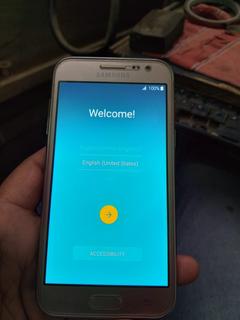

Handset Successfully Recoverd
proxy.php?image=https%3A%2F%2Fi.postimg.cc%2FQN67Vm1R%2F6.jpg&hash=398eebfc0f53031f4b2033a1fc7f31f7
Plz give me working download mode dump file i have j200g show only donwload mode emmc health problm i recover health succesfuly but now phone not showing download mode .. i write dump file from ufi support its not working file i think so help plz

Sent From SM-G928G Using Martview Forum App

J

Jane1

Active Member
Nov 23, 2018
35
2
#6
Deepesh Sharma:
J200G Is Exynos chipset, isn't? Does not need it any device to be boot enabled?

G

gsmkasba

Junior Member
Jan 30, 2019
2
0
Sonork ID
100.650600
#7
how to find ISP pin different model ...plz help me
