Help Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!

abo anas zayan

Active Member
Aug 22, 2017
29
5
egypt
set vcc to 2.8v and vccQ to 1.8v




iunlock

Active Member
Jul 18, 2019
19
8
not solved i need to remove frp on a3s, and a1k useless without Direct emmc not working


iunlock

Active Member
Jul 18, 2019
19
8

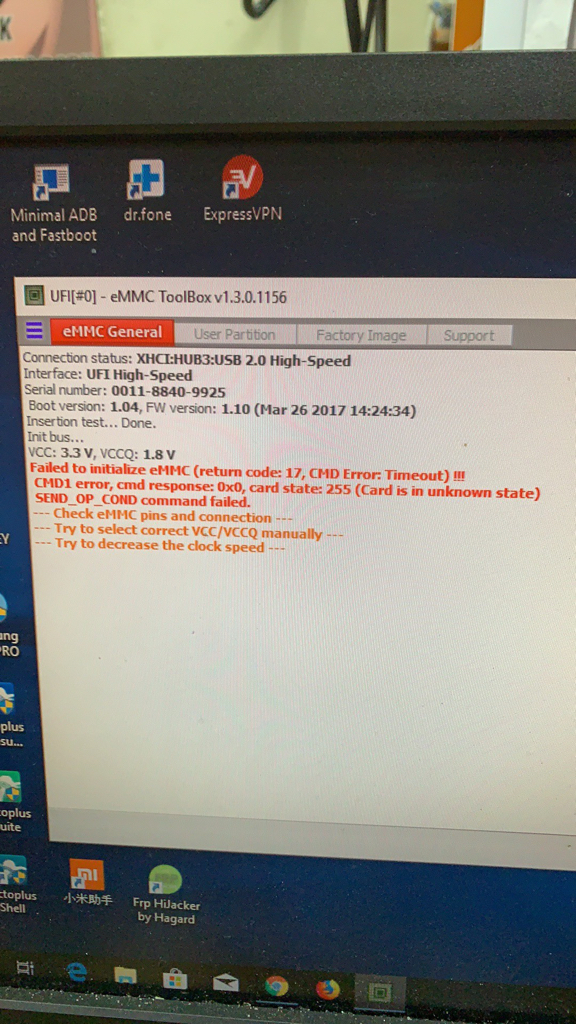

same error in screen shot bro all is set to Auto:

Connection status: XHCI:HUB3:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0565
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---

  • Angry
Reactions: tahirabc

Allen126

Active Member
Jun 1, 2019
71
6


actually i also have this problem, may i know how to solve this problem.
please help ...i am new user.

regards


Sent from my iPhone using Tapatalk


GSM KING MAKER

Moderator
Product Supporter
Mar 16, 2017
1,405
6,657
INDIA - TAMILNADU - KUMBAKONAM
Skype
GSMKINGMAKER
Sonork ID
100.1659975
PayPal:

Donate money to this user
same bro searching solution no where its solved i will let you know what happen with my issue i guess all new ISP adapters with UFI have problem
100% This Time Its Not Adapter Problem ! Sure Its Connection Problem ...
We Dont Know How U Connect ?
Dont Use Extension Connection ! First You Check Your Wired & Box Connections

  • Like
Reactions: Avi.acharjee

iunlock

Active Member
Jul 18, 2019
19
8
100% This Time Its Not Adapter Problem ! Sure Its Connection Problem ...
We Dont Know How U Connect ?
Dont Use Extension Connection ! First You Check Your Wired & Box Connections
i am gonna test this box with another ufi adapter from a friend then will let u know just tell me if my ISP adapter is faulty who will replace this??


iunlock

Active Member
Jul 18, 2019
19
8
Guys i solved my problem finally with modifying my V2 isp Adapter as need o modify on V1 remove some components on backside then make jumper also need to connect jumpers GND, DAT0,CMD and Clk thn for power vcc and vccq use usb cable did one Realme RMX1809

  • Like
Reactions: GSM KING MAKER

GSM KING MAKER

Moderator
Product Supporter
Mar 16, 2017
1,405
6,657
INDIA - TAMILNADU - KUMBAKONAM
Skype
GSMKINGMAKER
Sonork ID
100.1659975
PayPal:

Donate money to this user
Guys i solved my problem finally with modifying my V2 isp Adapter as need o modify on V1 remove some components on backside then make jumper also need to connect jumpers GND, DAT0,CMD and Clk thn for power vcc and vccq use usb cable did one Realme RMX1809

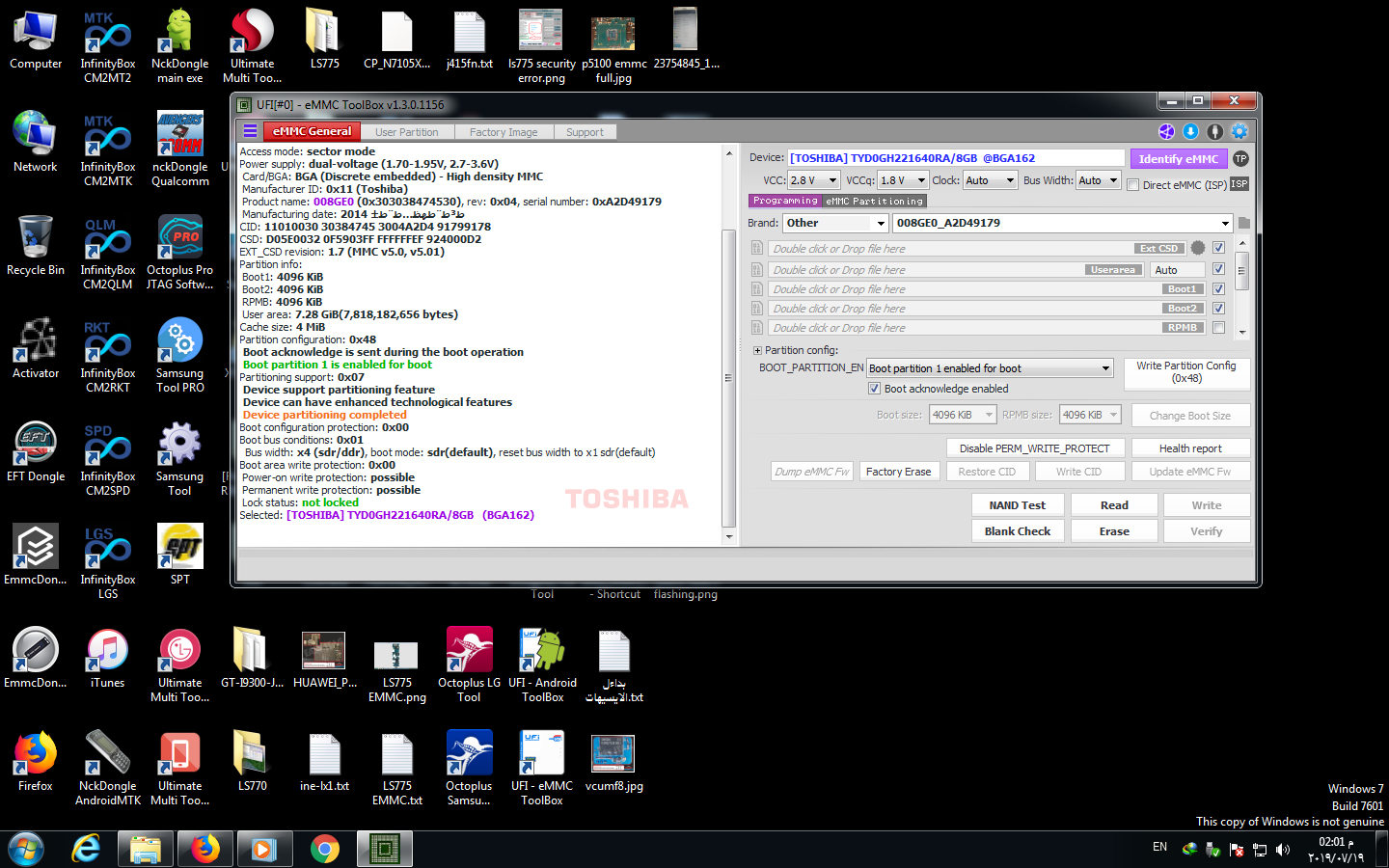

Good :Y: Possible Post Your Success Report Screenshot Here :)
