Help Galaxy J3 (J330F) can`t remove write protection

H

hafiz4saqib

Active Member
May 11, 2017
15
0
Pakistan
Skype
hafiz4saqib

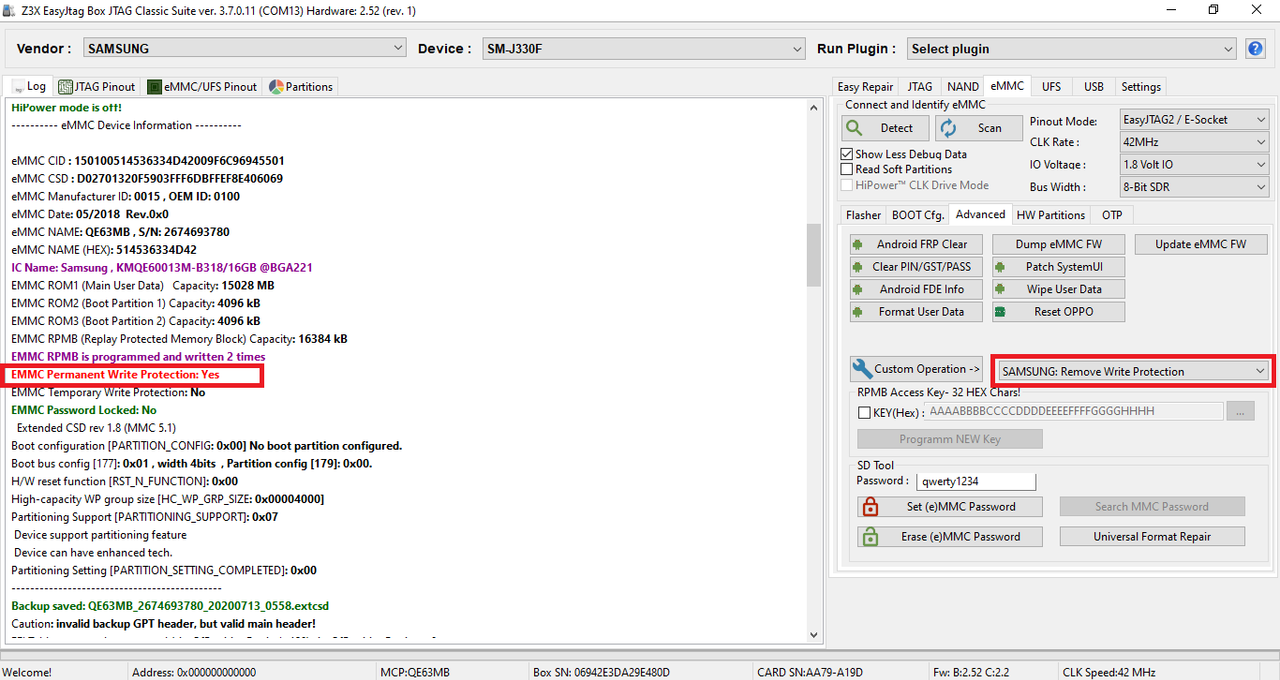

It can`t remove EMMC Permanent Write Protection: Yes
But with TP its showing EMMC Permanent Write Protection: No
And also there is no Update EMMC FW.
How to resolve this issue ?
Or its need new eMMC.

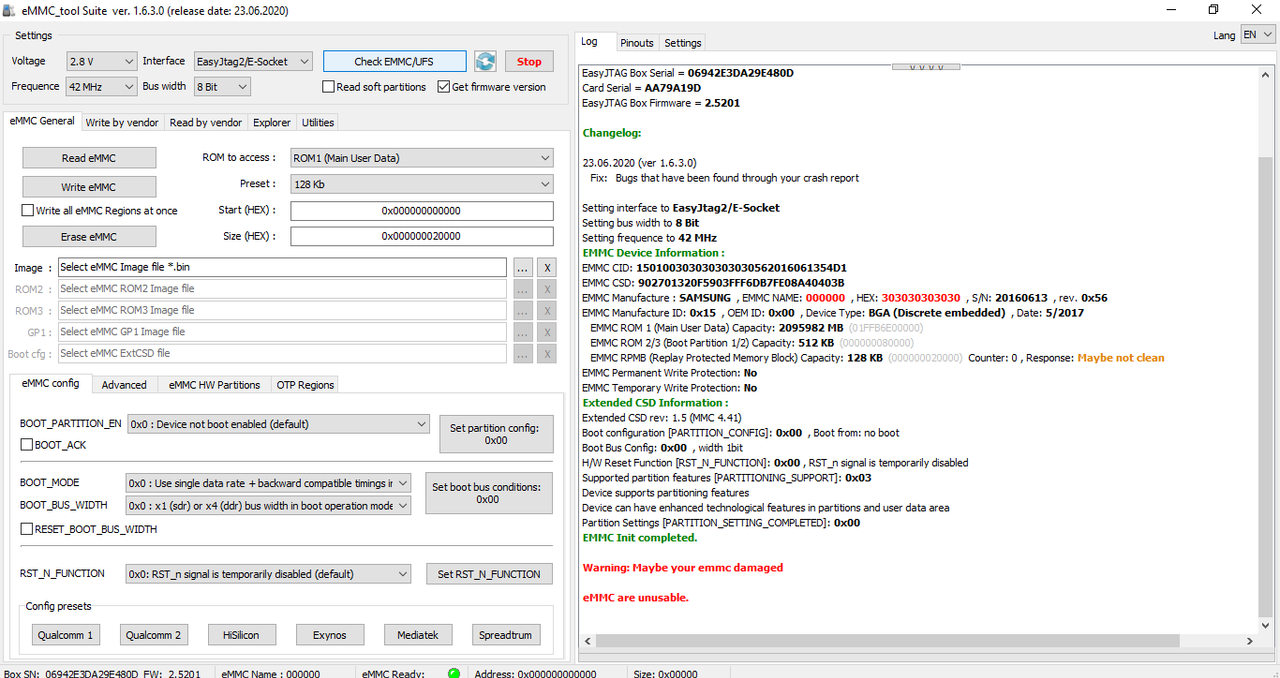

But in Easy Jtag PLus suite showing that EMMC are unsueable when I connect with TP.



Code:
EasyJtag Suite Classic ver.: 3.7.0.11 / wxWidgets 3.1.3-W-U started.
OS ver.: Windows 10 (build 19041), 64-bit edition. Admin rights FAIL
Android Explorer ver:1.0.0.13
Autorun Agent ver:1.0.0.0
Crash Reporting ver:1.4.0.3
eMMC Odin ver:1.0.0.6
QUALCOMM Direct ver:1.0.6936.8894
EasyJTAG SPI Plugin ver:1.1.1.13
Android ADB API ver:2.0.0.0
FTDI API ver:3.2.4.0
LibUSB API ver:1.2.6.0
Visual C++ Runtime ver:10.0.30319.1
Setting box Pinout ...

Box Drivers version: 10.0.19041.1
Z3X Card Serial : AA79-A19D , ver: 22
Z3X Card Activation [JTAGPLUS] : ACTIVATED
Z3X Card Activation [LG] : ACTIVATED
Z3X Card Activation [SAMS] : ACTIVATED
Z3X Card Activation [JTAG] : ACTIVATED


For more information press F1 to open local help or visit our wiki

Found 3 serial devices
COM13 USB\VID_1781&PID_AAAC&REV_0100&MI_00 USB Serial Device (COM13)
COM41 root\rimports RIM Virtual Serial Port v2 (COM41)
COM42 root\rimports RIM Virtual Serial Port v2 (COM42)
Selected pinout: GEN2 High Speed Pinout
Change EasyJTAG Pinout OK
Z3X EasyJtag Software ver. 3.7.0.11
Loading eMMC GEN2 Firmware... IO: 1800 mV
Initial pull results:
  clock: 975mV pin connected ok
  command: 980mV pin connected ok
  data0: 980mV pin connected ok
  data1: 976mV pin connected ok
  data2: 979mV pin connected ok
  data3: 979mV pin connected ok
  data4: 981mV pin connected ok
  data5: 979mV pin connected ok
  data6: 979mV pin connected ok
  data7: 979mV pin connected ok
Box S/N: 06942E3DA29E480D, ,FW Ver.: 02.52
Box IO Level:1800 mV
CLK Rate:42000 kHz
Bus Width:8bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------

eMMC CID : 150100514536334D42009F6C96945501
eMMC CSD : D02701320F5903FFF6DBFFEF8E406069
eMMC Manufacturer ID: 0015 , OEM ID: 0100
eMMC Date: 05/2018  Rev.0x0
eMMC NAME: QE63MB , S/N: 2674693780
eMMC NAME (HEX): 514536334D42
IC Name: Samsung , KMQE60013M-B318/16GB @BGA221
EMMC ROM1 (Main User Data)   Capacity: 15028 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC RPMB is programmed and written 2 times
EMMC Permanent Write Protection: Yes
EMMC Temporary Write Protection: No
EMMC Password Locked: No
  Extended CSD rev 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x01 , width 4bits  , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
 Device support partitioning feature
 Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: QE63MB_2674693780_20200713_0558.extcsd
Caution: invalid backup GPT header, but valid main header!
EFI Table seems to be corrupted (sizeOfPartitionEntries!=128) sizeOfPartitionEntries = 0
Warning! One or more CRCs don't match. You should repair the disk!
Caution: Found protective or hybrid MBR and corrupt GPT.
Real (Hardware) Disk/Image size: 1D5A000 sectors 14.7 GiB
Soft (Partitioned) Disk/Image size: 1D59FBC sectors 14.7 GiB
Disk identifier (GUID): 52444E41-494F-2044-4D4D-43204449534B
Logical sector size: 0x200  bytes ,First/Last usable sector: 34,30777310
Partition info successfully found
------ Android information ------
Detected LINUX(Android) SYSTEM : 0x000F000000 (2.687GB)
Short EXT fs info:
Size: 2.655GB
Block size: 4.0KB
Inode size: 256
Inodes: 174240
Short Android info:
Build ID:  R16NW
Display Build ID:  R16NW.J330FXXU3BRL2
Release Incremental ID:  J330FXXU3BRL2
Release Base ID:  8.0.0
Security Path:  2019-01-01
Device Model:  SM-J330F
Device Manufacturer:  samsung
Product ID:  j3y17lte
Device Name A:  j3y17lteser
Device Name B:  j3y17lte
Architecture ABI:  armeabi-v7a
Device manufacturer:  samsung
Build Description:  j3y17lteser-user 8.0.0 R16NW J330FXXU3BRL2 release-keys
PDA ver.:  J330FXXU3BRL2
Samsung CPU:  exynos7570
Device Board Name:  universal7570
Device Platform:  exynos5
FRP Partition Path:  /dev/block/persistent
Backup saved: BuildProp_20200713_0558.txt
---------------------------------------------
Detected USERDATA USERDATA : 0x00CCE00000 (11.468GB)
Unable to mount USERDATA , code : 95
Userdata Superblock contents::
 3A90DBC5 3BC77135 593DE49C FE0F23E5 F30DD862 EA9EC62E E90F56ED 46C602D6     :.ÛÅ;Çq5Y=äœþ.#åó.ØbêžÆ.é.VíFÆ.Ö;
 47ADABE9 7C86F230 32FB3DFB 87E295DF D65F3860 A1EC8D7B 4A34F802 E3898ADC     G*«é|†ò02û=û‡â•ßÖ_8`¡ì.{J4ø.㉊Ü;
 9951BA17 C49FDA0A 84924CCF 860A790E 97860319 70E61FBA 4D96FAC1 4FC51DB3     .Qº.ÄŸÚ.„’Lφ.y.—†..pæ.ºM–úÁOÅ.³;
 F18BE229 86E83873 A939C3BF BB2750E8 A90D3458 5C2EDE5E A9CFD381 18B257A7     ñ‹â)†è8s©9ÿ»'Pè©.4X\.Þ^©ÏÓ..²W§;
 6D4694F5 43E6C5E7 779C2F53 83177F59 25B8AEBC 96581D1D 352C9F0B 15AF53EA     mF”õCæÅçwœ/Sƒ..Y%¸®¼–X..5,Ÿ..¯Sê;
 6ACB87CC 05FD8CD2 7B76D559 0E582C37 C748DF23 6EFB0685 2C0EE2DA 93852960     jˇÌ.ýŒÒ{vÕY.X,7ÇHß#nû.…,.âÚ“…)`;
 01F04AD3 AAD3A0C9 8271A301 94DC7CB7 9430CF09 0ED3A13A BDCFD675 5BD173C3     .ðJÓªÓ*É‚q£.”Ü|·”0Ï    .Ó¡:½ÏÖu[ÑsÃ;
 F0D4F6A1 0D679B15 37EA0FF5 99F59111 7C5BEFE6 6AD4B1A5 7900FAC5 3F5B62E4     ðÔö¡.g›.7ê.õ.õ‘.|[ïæjÔ±¥y.úÅ?[bä;
Done.

Checking security ...
Running:SAMSUNG: Remove Write Protection...
Z3X EasyJtag Software ver. 3.7.0.11
Skip loading eMMC Addon Firmware
Box IO Level:1800 mV
CLK Rate:14000 kHz
Removing write protection...
Done.

Z3X EasyJtag Software ver. 3.7.0.11
Loading eMMC GEN2 Firmware... IO: 1800 mV
Initial pull results:
  clock: 974mV pin connected ok
  command: 980mV pin connected ok
  data0: 980mV pin connected ok
  data1: 975mV pin connected ok
  data2: 977mV pin connected ok
  data3: 979mV pin connected ok
  data4: 979mV pin connected ok
  data5: 979mV pin connected ok
  data6: 976mV pin connected ok
  data7: 976mV pin connected ok
Box S/N: 06942E3DA29E480D, ,FW Ver.: 02.52
Box IO Level:1800 mV
CLK Rate:42000 kHz
Bus Width:8bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------

eMMC CID : 150100514536334D42009F6C96945501
eMMC CSD : D02701320F5903FFF6DBFFEF8E406069
eMMC Manufacturer ID: 0015 , OEM ID: 0100
eMMC Date: 05/2018  Rev.0x0
eMMC NAME: QE63MB , S/N: 2674693780
eMMC NAME (HEX): 514536334D42
IC Name: Samsung , KMQE60013M-B318/16GB @BGA221
EMMC ROM1 (Main User Data)   Capacity: 15028 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC RPMB is programmed and written 2 times
EMMC Permanent Write Protection: Yes
EMMC Temporary Write Protection: No
EMMC Password Locked: No
  Extended CSD rev 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x01 , width 4bits  , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
 Device support partitioning feature
 Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: QE63MB_2674693780_20200713_0600.extcsd
Caution: invalid backup GPT header, but valid main header!
EFI Table seems to be corrupted (sizeOfPartitionEntries!=128) sizeOfPartitionEntries = 0
Warning! One or more CRCs don't match. You should repair the disk!
Caution: Found protective or hybrid MBR and corrupt GPT.
Real (Hardware) Disk/Image size: 1D5A000 sectors 14.7 GiB
Soft (Partitioned) Disk/Image size: 1D59FBC sectors 14.7 GiB
Disk identifier (GUID): 52444E41-494F-2044-4D4D-43204449534B
Logical sector size: 0x200  bytes ,First/Last usable sector: 34,30777310
Partition info successfully found
------ Android information ------
Detected LINUX(Android) SYSTEM : 0x000F000000 (2.687GB)
Short EXT fs info:
Size: 2.655GB
Block size: 4.0KB
Inode size: 256
Inodes: 174240
Short Android info:
Build ID:  R16NW
Display Build ID:  R16NW.J330FXXU3BRL2
Release Incremental ID:  J330FXXU3BRL2
Release Base ID:  8.0.0
Security Path:  2019-01-01
Device Model:  SM-J330F
Device Manufacturer:  samsung
Product ID:  j3y17lte
Device Name A:  j3y17lteser
Device Name B:  j3y17lte
Architecture ABI:  armeabi-v7a
Device manufacturer:  samsung
Build Description:  j3y17lteser-user 8.0.0 R16NW J330FXXU3BRL2 release-keys
PDA ver.:  J330FXXU3BRL2
Samsung CPU:  exynos7570
Device Board Name:  universal7570
Device Platform:  exynos5
FRP Partition Path:  /dev/block/persistent
Backup saved: BuildProp_20200713_0600.txt
---------------------------------------------
Detected USERDATA USERDATA : 0x00CCE00000 (11.468GB)
Unable to mount USERDATA , code : 95
Userdata Superblock contents::
 3A90DBC5 3BC77135 593DE49C FE0F23E5 F30DD862 EA9EC62E E90F56ED 46C602D6     :.ÛÅ;Çq5Y=äœþ.#åó.ØbêžÆ.é.VíFÆ.Ö;
 47ADABE9 7C86F230 32FB3DFB 87E295DF D65F3860 A1EC8D7B 4A34F802 E3898ADC     G*«é|†ò02û=û‡â•ßÖ_8`¡ì.{J4ø.㉊Ü;
 9951BA17 C49FDA0A 84924CCF 860A790E 97860319 70E61FBA 4D96FAC1 4FC51DB3     .Qº.ÄŸÚ.„’Lφ.y.—†..pæ.ºM–úÁOÅ.³;
 F18BE229 86E83873 A939C3BF BB2750E8 A90D3458 5C2EDE5E A9CFD381 18B257A7     ñ‹â)†è8s©9ÿ»'Pè©.4X\.Þ^©ÏÓ..²W§;
 6D4694F5 43E6C5E7 779C2F53 83177F59 25B8AEBC 96581D1D 352C9F0B 15AF53EA     mF”õCæÅçwœ/Sƒ..Y%¸®¼–X..5,Ÿ..¯Sê;
 6ACB87CC 05FD8CD2 7B76D559 0E582C37 C748DF23 6EFB0685 2C0EE2DA 93852960     jˇÌ.ýŒÒ{vÕY.X,7ÇHß#nû.…,.âÚ“…)`;
 01F04AD3 AAD3A0C9 8271A301 94DC7CB7 9430CF09 0ED3A13A BDCFD675 5BD173C3     .ðJÓªÓ*É‚q£.”Ü|·”0Ï    .Ó¡:½ÏÖu[ÑsÃ;
 F0D4F6A1 0D679B15 37EA0FF5 99F59111 7C5BEFE6 6AD4B1A5 7900FAC5 3F5B62E4     ðÔö¡.g›.7ê.õ.õ‘.|[ïæjÔ±¥y.úÅ?[bä;
Done.

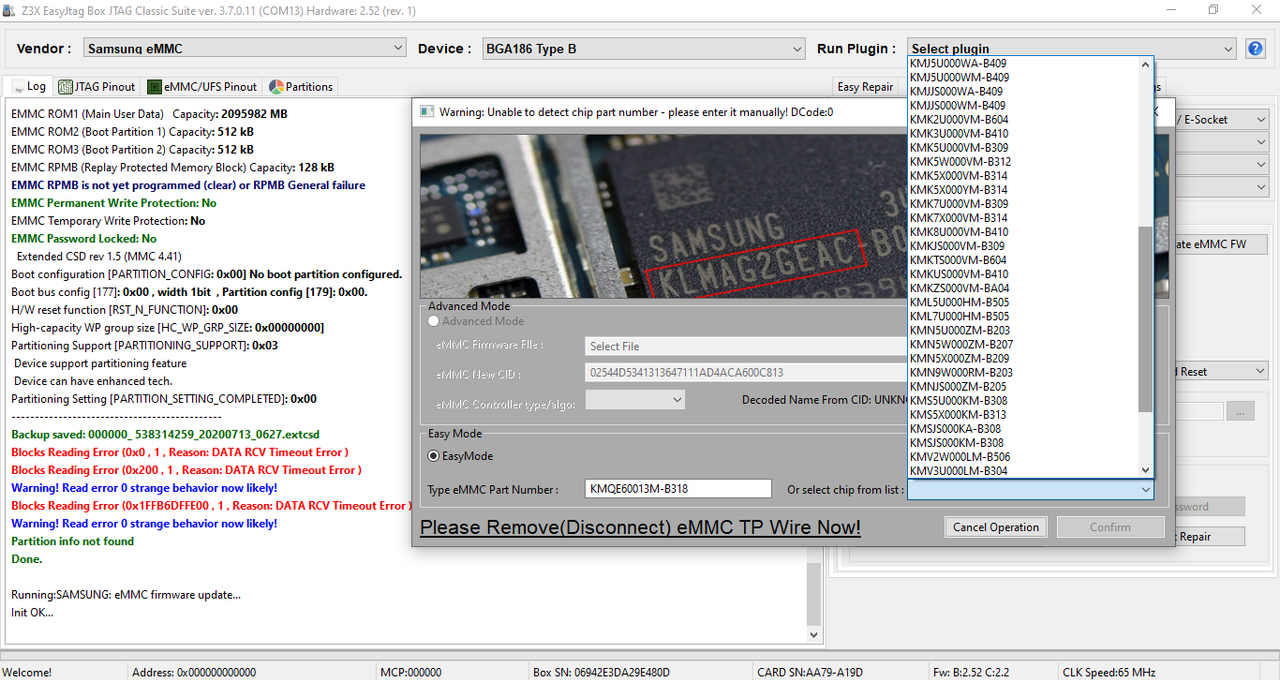

Log with TP
Code:
Z3X EasyJtag Software ver. 3.7.0.11
Loading eMMC GEN2 Firmware... IO: 1800 mV
Initial pull results:
  clock: 971mV pin connected ok
  command: 976mV pin connected ok
  data0: 977mV pin connected ok
  data1: 972mV pin connected ok
  data2: 974mV pin connected ok
  data3: 975mV pin connected ok
  data4: 976mV pin connected ok
  data5: 976mV pin connected ok
  data6: 975mV pin connected ok
  data7: 974mV pin connected ok
Box S/N: 06942E3DA29E480D, ,FW Ver.: 02.52
Box IO Level:1800 mV
CLK Rate:42000 kHz
Bus Width:8bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------

eMMC CID : 150100303030303030562016061354D1
eMMC CSD : 902701320F5903FFF6DB7FE08A40403B
eMMC Manufacturer ID: 0015 , OEM ID: 0100
eMMC Date: 05/2017  Rev.0x56
eMMC NAME: 000000 , S/N:  538314259
eMMC NAME (HEX): 303030303030
EMMC ROM1 (Main User Data)   Capacity: 2095982 MB
EMMC ROM2 (Boot Partition 1) Capacity: 512 kB
EMMC ROM3 (Boot Partition 2) Capacity: 512 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 128 kB
EMMC RPMB is not yet programmed (clear) or RPMB General failure
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
  Extended CSD rev 1.5 (MMC 4.41)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit  , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity WP group size [HC_WP_GRP_SIZE: 0x00000000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x03
 Device support partitioning feature
 Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: 000000_ 538314259_20200713_0619.extcsd
Blocks Reading Error (0x0 , 1 , Reason: DATA RCV Timeout Error )
Blocks Reading Error (0x200 , 1 , Reason: DATA RCV Timeout Error )
Warning! Read error 0 strange behavior now likely!
Blocks Reading Error (0x1FFB6DFFE00 , 1 , Reason: DATA RCV Timeout Error )
Warning! Read error 0 strange behavior now likely!
Partition info not found
Done.


Attachments

  • 1594608717198.png
    140.7 KB · Views: 19
You must log in or register to reply here.
Top
