How to Write/Use Spd Pac File On Ufi-Emmc Tool(How Program Spd Chip Using Pac File In Ufi-Box)Solution

Deepesh Sharma

Staff member
Super Moderator
Apr 4, 2017
1,382
1,847
India
Sonork ID
100.1614172
How to Write/Use Spd Pac File On Ufi-Box Emmc Tool(How Program Spd Chip Using Pac File In Ufi-Box)Solution
Hi As In Title Many User Confuse How Use Ufi-Box In Spd Pac File NOw We Explain All thing with Full Image Guide

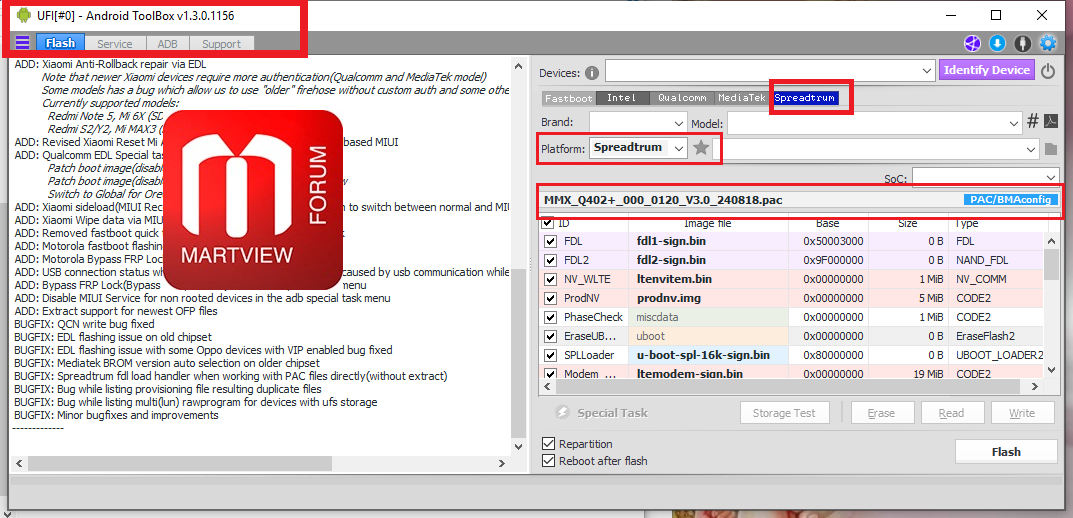

Step-1 Open Ufi-Andriod Tool Box And Select Vendor(Spreadtrum) Then Select Your Flash FIle(Pac Format).

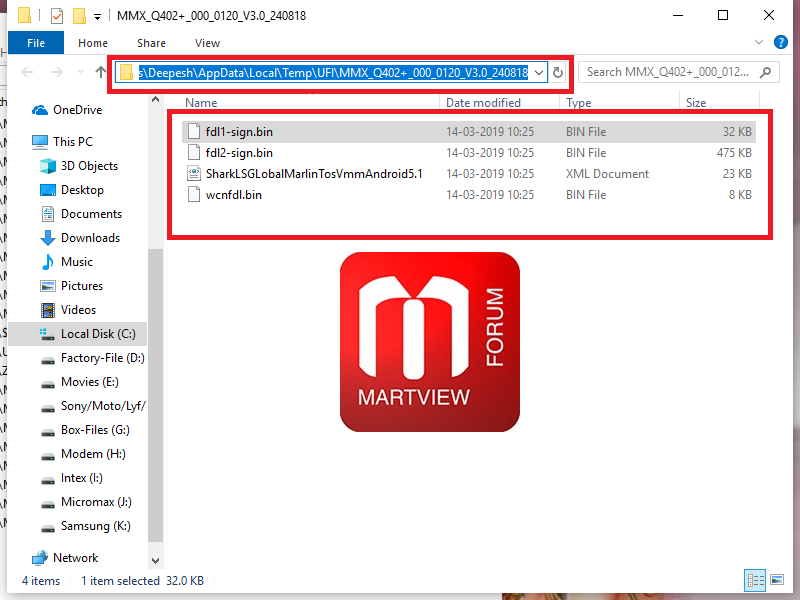

Step-2 Now All File Extract HEre Open This Path-C:\Users\AppData\Local\Temp\UFI\MMX_Q402+_000_0120_V3.0_240818


Step-3

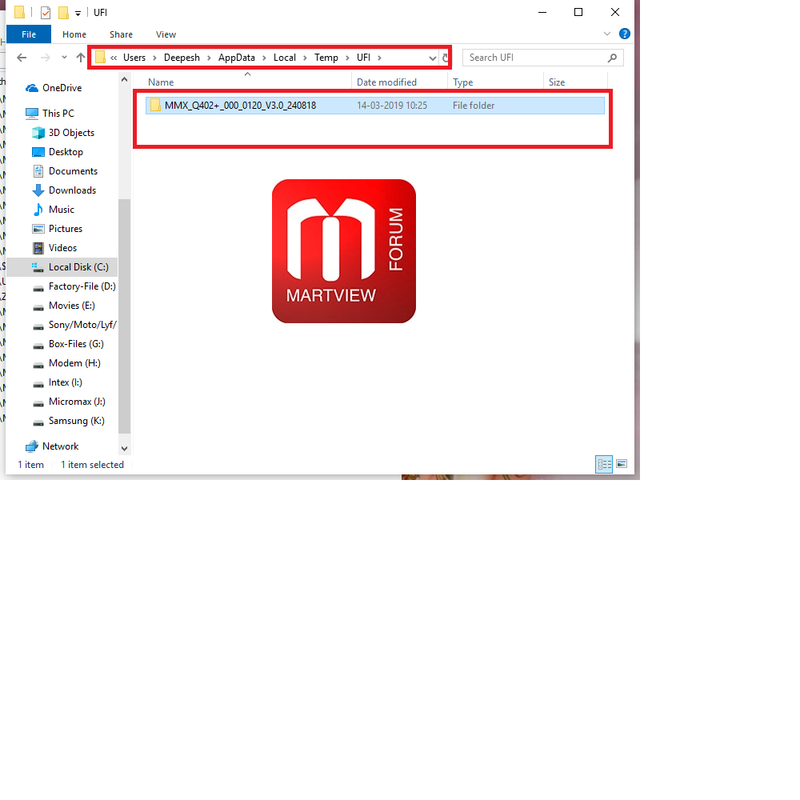

Copy Your Model Folder As See In Image And Paste As You Wish(After Close Ufi Andriod Tool You Cant Found This Folder)


Step-4-

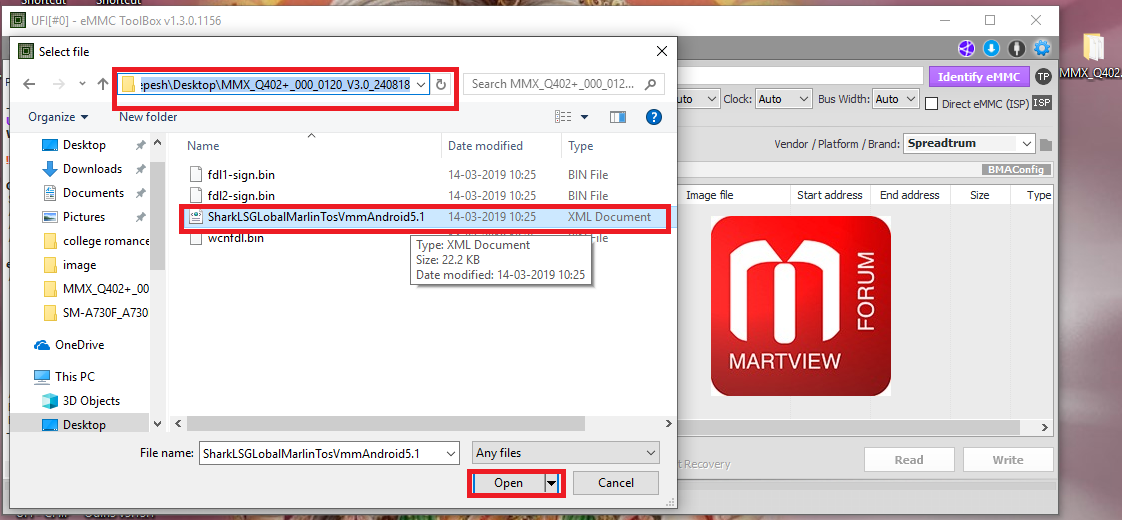

Now Close Ufi- Andriod Tool And Open Ufi-Emmc Tool Select Vendor-Spreadtrum And Select BMA Config File In Your Copy Folder

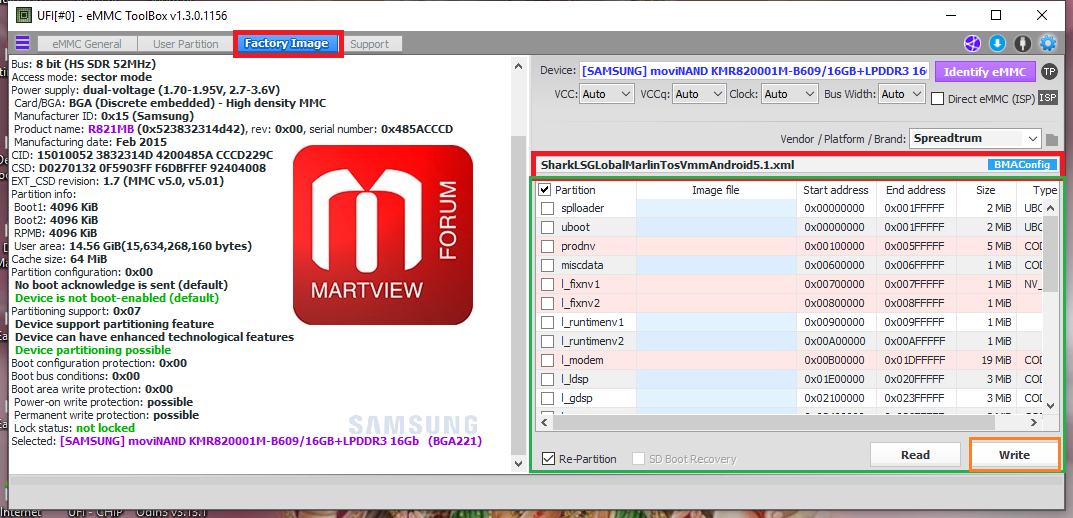

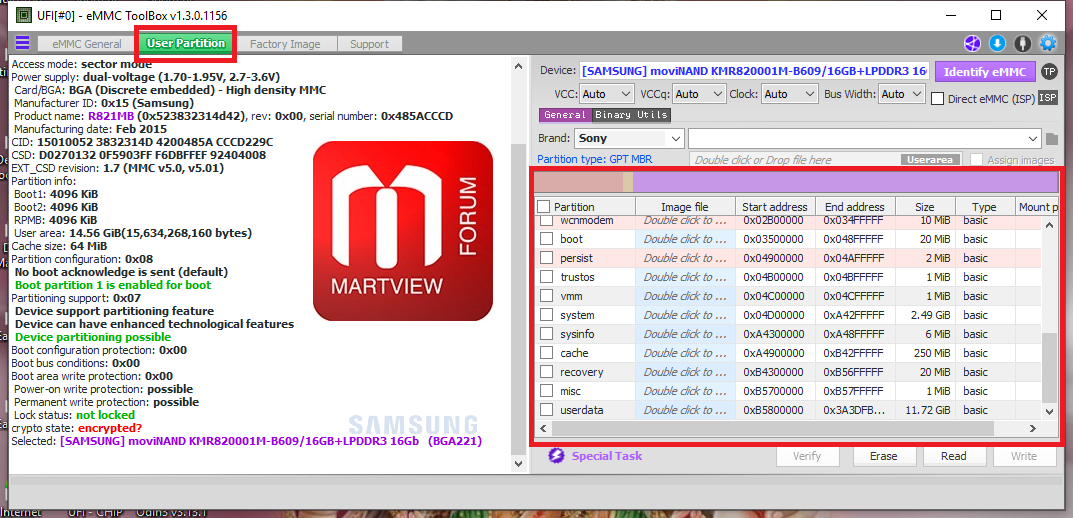

Step-5 After Select File You Will See All Partition As Image Below Then Select Write


Congratulation After Write You Successfully ReProgramed Your Emmc For Your Handset



If Still, you Have Any Problem In Spd Pac File Feel free to Write HEre Your Problem Or Contact Us .
Note-This Very Help For New User's Please Share And Like This Post.
Stay Connect With Us For MOre Hot News.


SAMSER0786

Junior Member
Sep 12, 2018
4
2
Skype
samser0786
How to Write/Use Spd Pac File On Ufi-Box Emmc Tool(How Program Spd Chip Using Pac File In Ufi-Box)Solution
Hi As In Title Many User Confuse How Use Ufi-Box In Spd Pac File NOw We Explain All thing with Full Image Guide

Step-1 Open Ufi-Andriod Tool Box And Select Vendor(Spreadtrum) Then Select Your Flash FIle(Pac Format).


Step-2 Now All File Extract HEre Open This Path-C:\Users\AppData\Local\Temp\UFI\MMX_Q402+_000_0120_V3.0_240818


Step-3 Copy Your Model Folder As See In Image And Paste As You Wish(After Close Ufi Andriod Tool You Cant Found This Folder)


Step-4-
Now Close Ufi- Andriod Tool And Open Ufi-Emmc Tool Select Vendor-Spreadtrum And Select BMA Config File In Your Copy Folder


Step-5 After Select File You Will See All Partition As Image Below Then Select Write


Congratulation After Write You Successfully ReProgramed Your Emmc For Your Handset



If Still, you Have Any Problem In Spd Pac File Feel free to Write HEre Your Problem Or Contact Us .
Note-This Very Help For New User's Please Share And Like This Post.
Stay Connect With Us For MOre Hot News.
This is no perfect way.....for spd Pac file


Ghanshyam

Active Member
Mar 9, 2019
21
0
Its working and helpful for me
How to Write/Use Spd Pac File On Ufi-Box Emmc Tool(How Program Spd Chip Using Pac File In Ufi-Box)Solution
Hi As In Title Many User Confuse How Use Ufi-Box In Spd Pac File NOw We Explain All thing with Full Image Guide

Step-1 Open Ufi-Andriod Tool Box And Select Vendor(Spreadtrum) Then Select Your Flash FIle(Pac Format).


Step-2 Now All File Extract HEre Open This Path-C:\Users\AppData\Local\Temp\UFI\MMX_Q402+_000_0120_V3.0_240818


Step-3
Copy Your Model Folder As See In Image And Paste As You Wish(After Close Ufi Andriod Tool You Cant Found This Folder)


Step-4-
Now Close Ufi- Andriod Tool And Open Ufi-Emmc Tool Select Vendor-Spreadtrum And Select BMA Config File In Your Copy Folder


Step-5 After Select File You Will See All Partition As Image Below Then Select Write


Congratulation After Write You Successfully ReProgramed Your Emmc For Your Handset



If Still, you Have Any Problem In Spd Pac File Feel free to Write HEre Your Problem Or Contact Us .
Note-This Very Help For New User's Please Share And Like This Post.
Stay Connect With Us For MOre Hot News.
Sent From Redmi Note 4 Using Martview Forum App


umarimrl

Junior Member
Apr 8, 2019
4
0
hello brother i read emmc full partition now i want to make pac file because i have one of chines spd phone sc9820 but firmware not available i read emmc with ok phone then how to create pak file i have quantity of these phones please help

this is the log detail
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 4 bit (HS SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x11 (Toshiba)
Product name: 004GE0 (0x303034474530), rev: 0x01, serial number: 0x99D623C6
Manufacturing date: Feb 2015
CID: 11010030 30344745 300199D6 23C622C6
CSD: D05E0032 0F5903FF FFFFFFE7 924000E2
EXT_CSD revision: 1.6 (MMC v4.5, v4.51)
Partition info:
Boot1: 2048 KiB
Boot2: 2048 KiB
RPMB: 512 KiB
User area: 3.69 GiB(3,959,422,976 bytes)
Cache size: 4 MiB
Hardware reset function: 1
Partition configuration: 0x00
No boot acknowledge is sent (default)
Device is not boot-enabled (default)
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\004GE0_99D623C6.ext_csd"
ANDROID System Info:
platform: sc8830, cpu abi: armeabi-v7a
manufacturer: Starmobile
board: Starmobile FS Evo1, name: Starmobile FS Evo1
brand: Starmobile, model: Starmobile FS Evo1
build id: KTU84P, version: 5.1.1 Lollipop (Starmobile_FS_Evo1_V09_09292017 )
build description: sp9820w_6c20-user 4.4.4 KTU84P eng.jackwu.20170929.144024 test-keys
Internal storage: 3.13 GiB
crypto state: unencrypted
