How to program EEprom Sharp LED TV using UFI CHIP Prog
This EEprom LED TV using Winbond W25Q6 with SOP8 200mm interface.

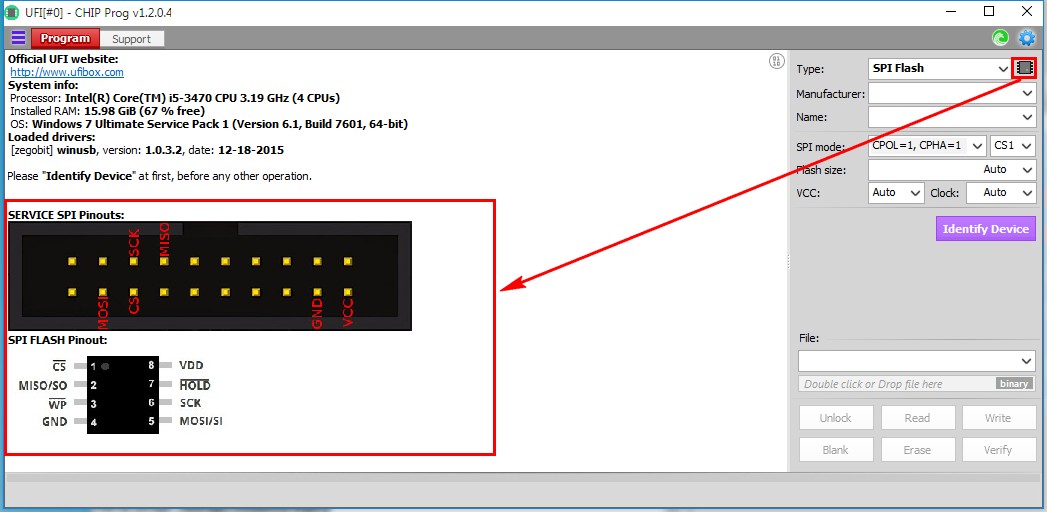

You can find UFI SPI service Pinout by click on the chip icon
proxy.php?image=https%3A%2F%2Fs11.postimg.cc%2Fpwnz4j61f%2Fimage.jpg&hash=f73da6a8d2474accec0558868edf3c6e

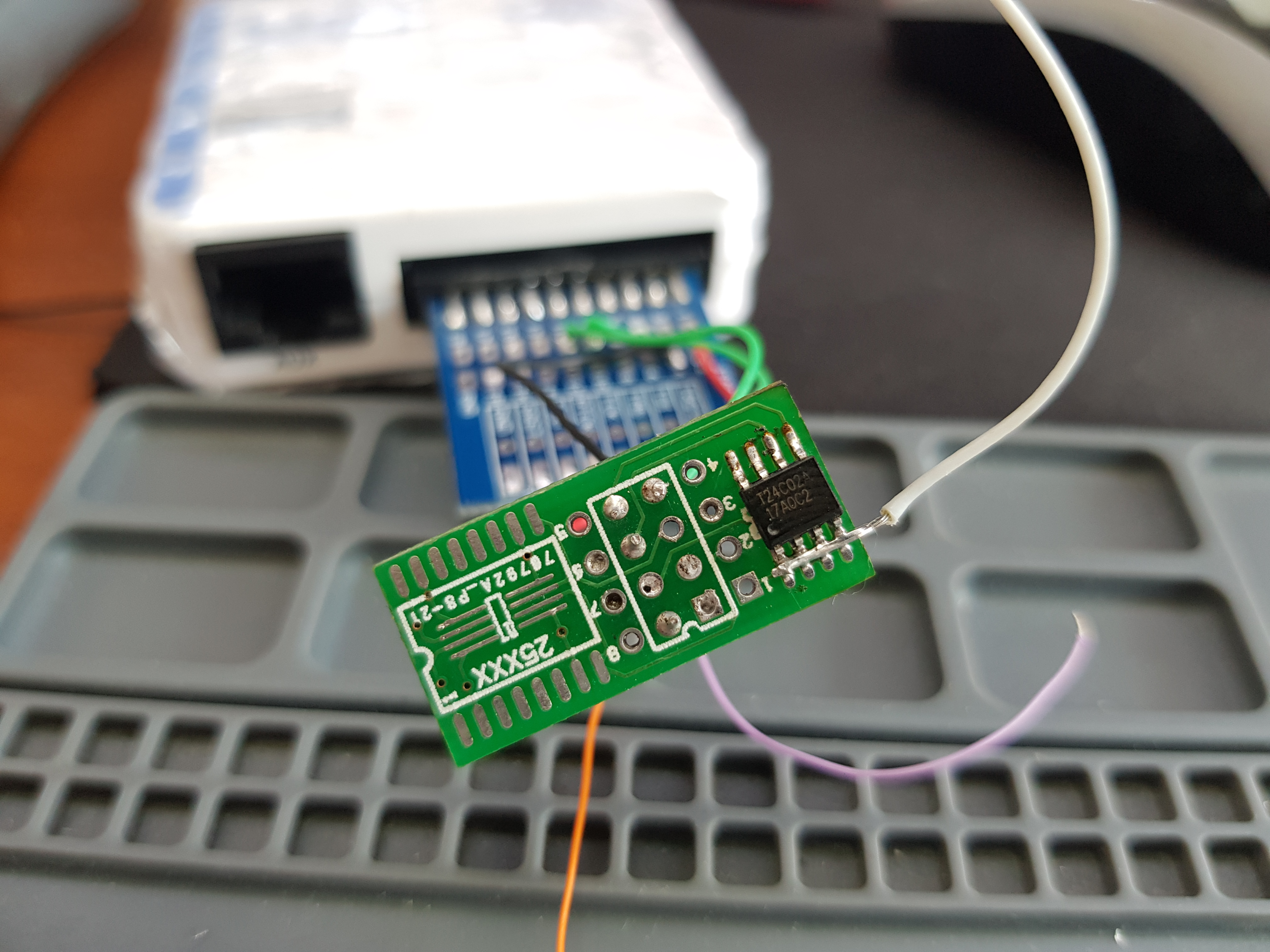

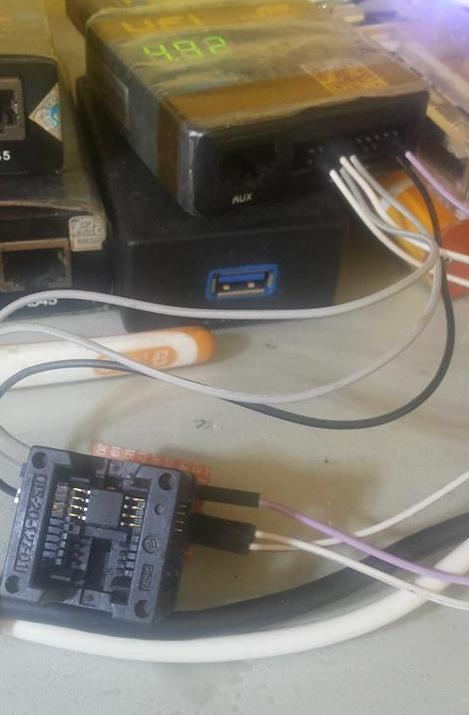

Now you can direct soldering to UFI Service Pinout with wire.
UFI CHIP Prog Adapter will be available soon
proxy.php?image=https%3A%2F%2Fs30.postimg.cc%2F5ht5j7rdd%2Fimage.jpg&hash=1c4728ca691cdb65653e1c0e2512a2c0

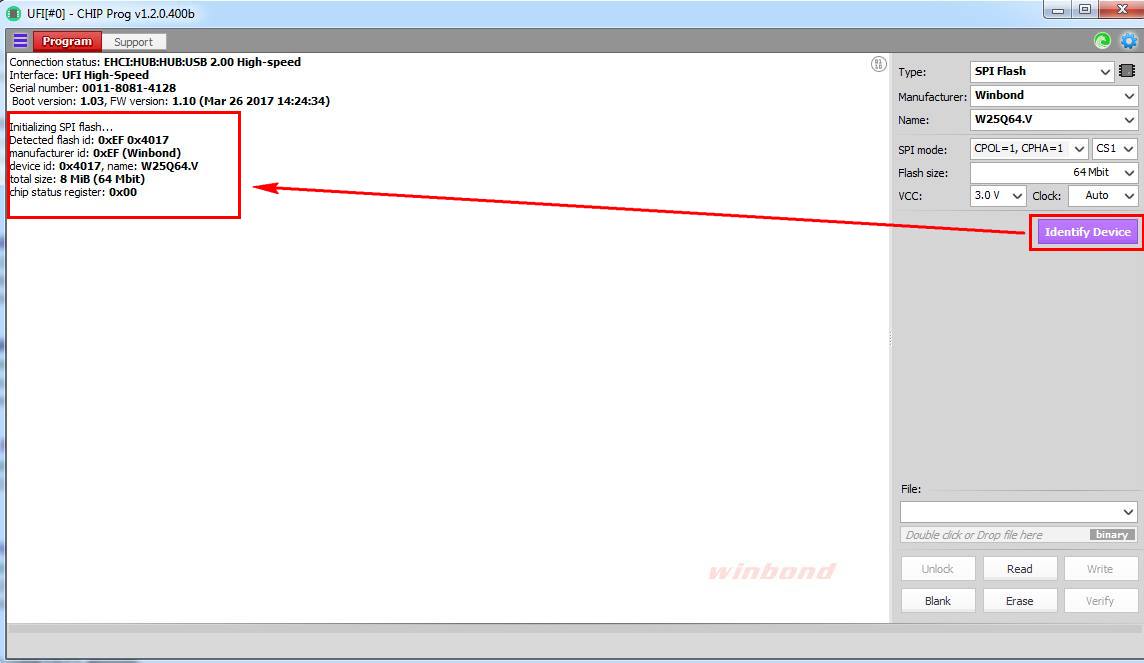

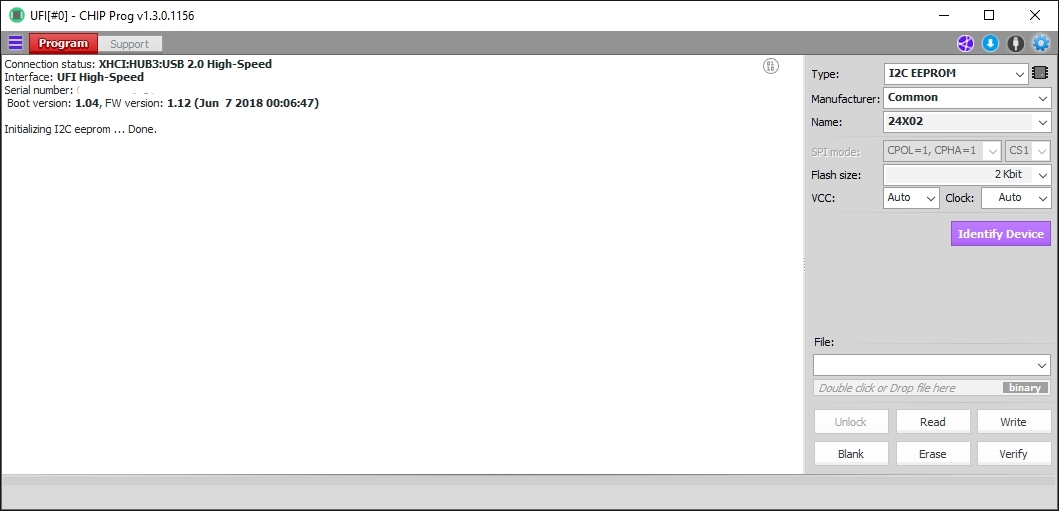

Identify Device

proxy.php?image=https%3A%2F%2Fs3.postimg.cc%2F5zrjk8xhv%2Fimage.jpg&hash=d7a67b65471297d1fc4af97d8bc5da89

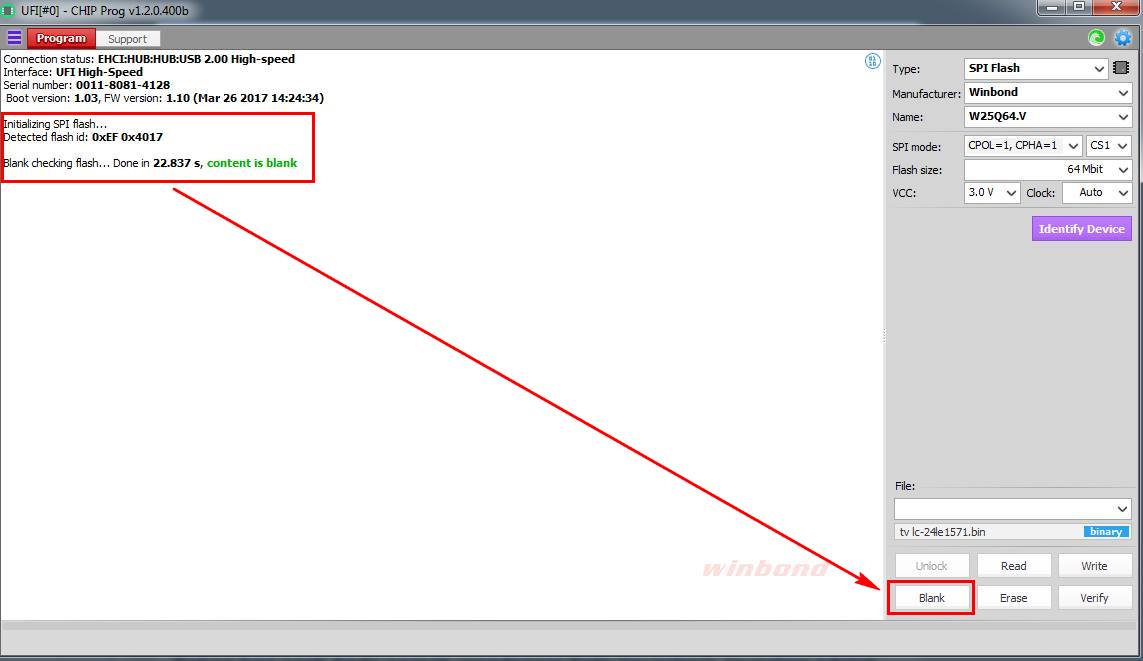

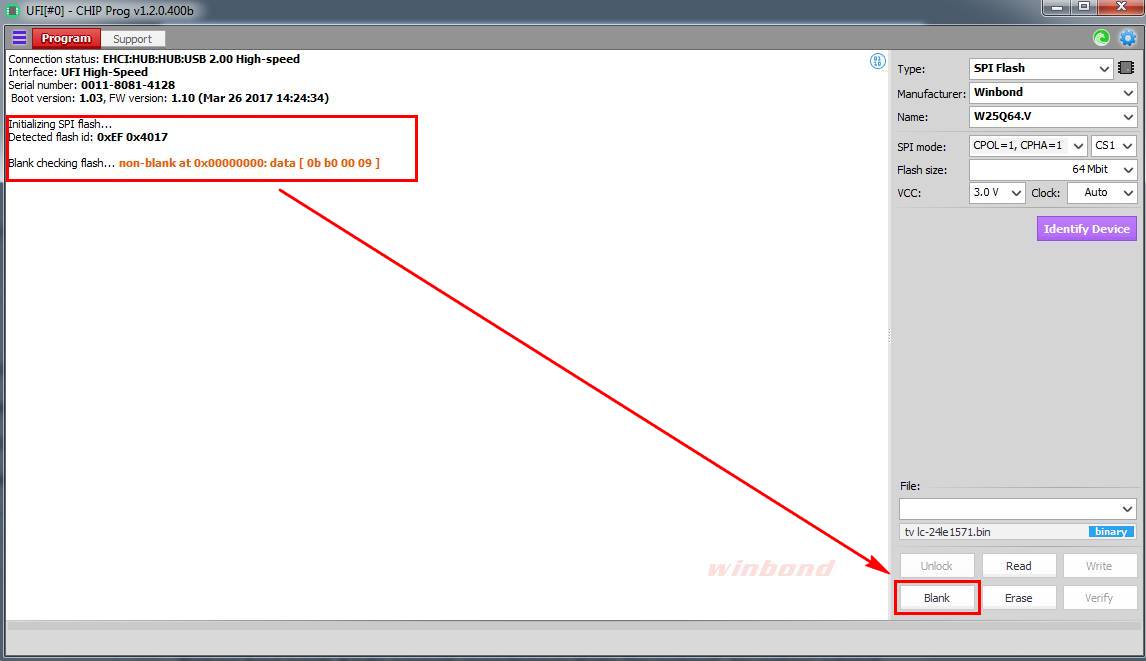

Blank Check

proxy.php?image=https%3A%2F%2Fs8.postimg.cc%2F6ehk4pn2t%2Fimage.jpg&hash=353c0a66b17cf16e7cf6e46f082e7b4b

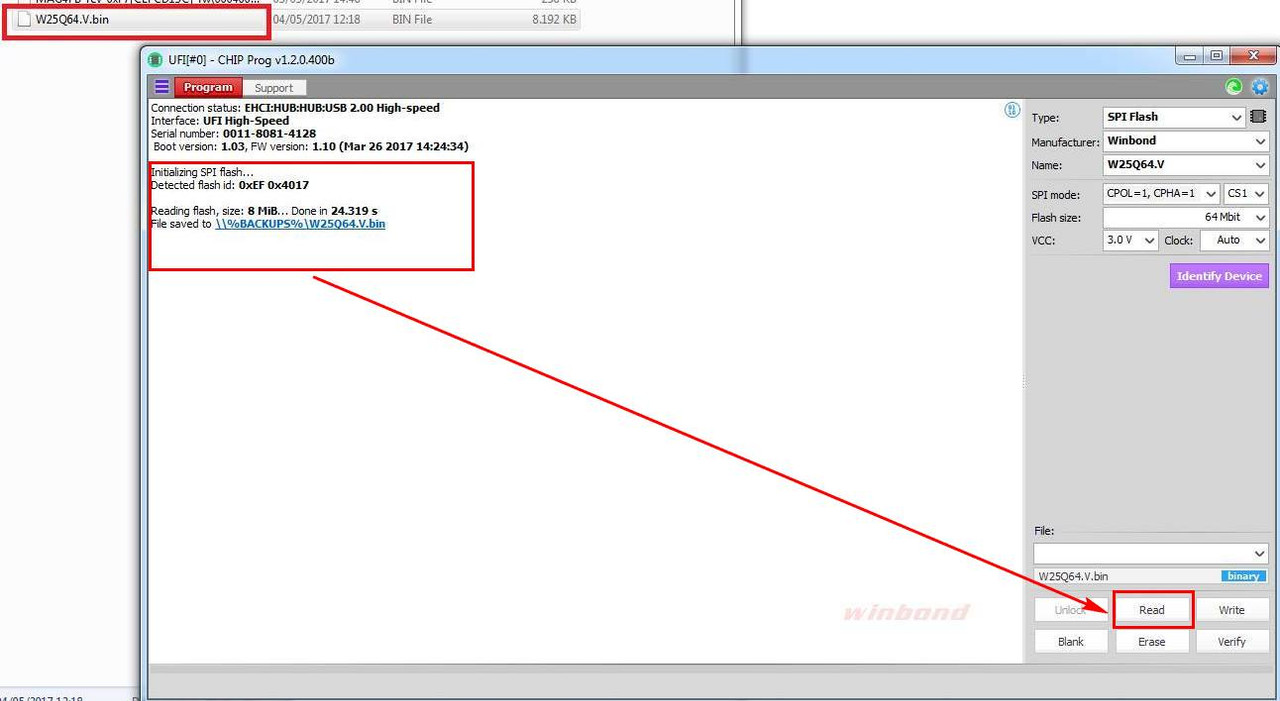

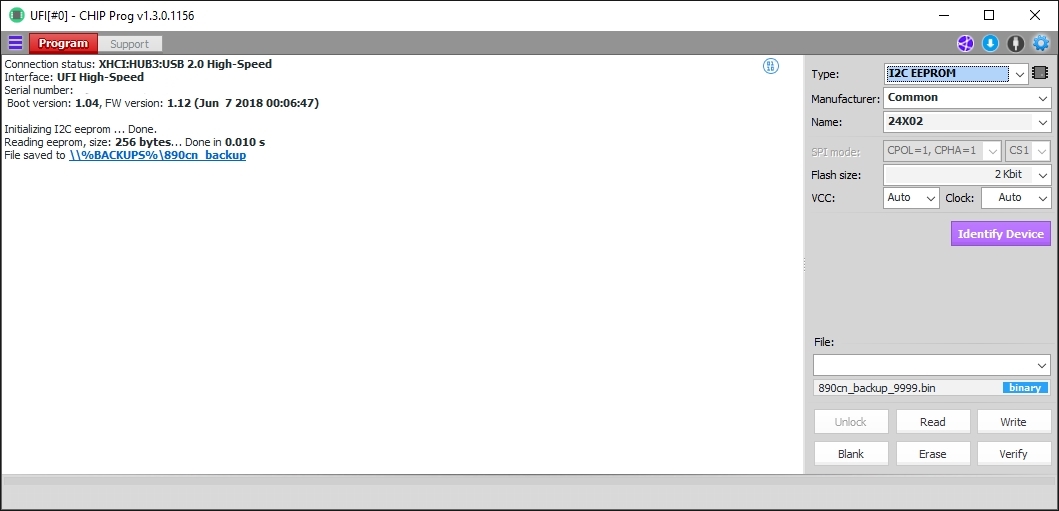

Read Flash

proxy.php?image=https%3A%2F%2Fs16.postimg.cc%2Fwzm8wjpn9%2Fimage.jpg&hash=61b683ecf7d0999aaccb0052769d68a4

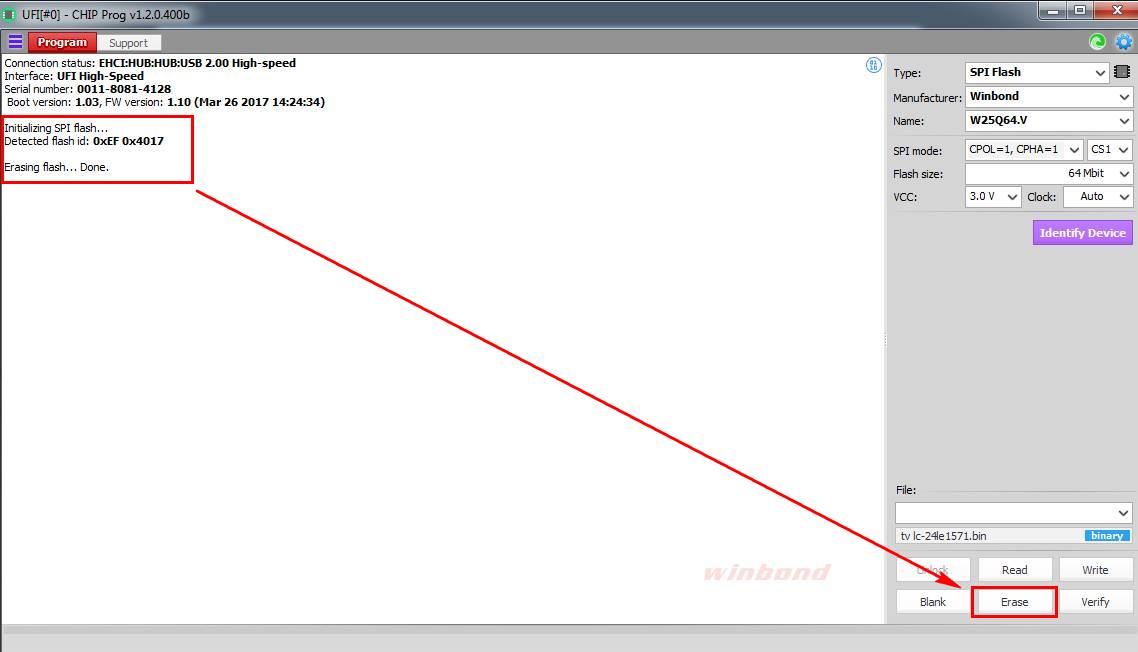

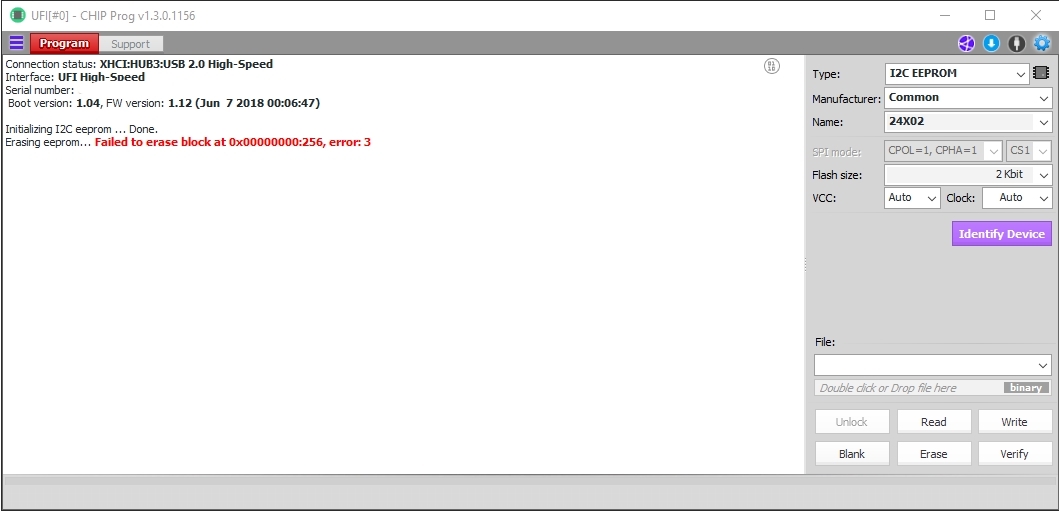

Erase Flash

proxy.php?image=https%3A%2F%2Fs8.postimg.cc%2Ffaphvczfp%2Fimage.jpg&hash=da3496b30e9d8bcebedc3e1e2c498e86


Blank Check

proxy.php?image=https%3A%2F%2Fs12.postimg.cc%2Fvh4jlpqhp%2Fimage.jpg&hash=5b71f77df72e1f3f3d314b39353de599

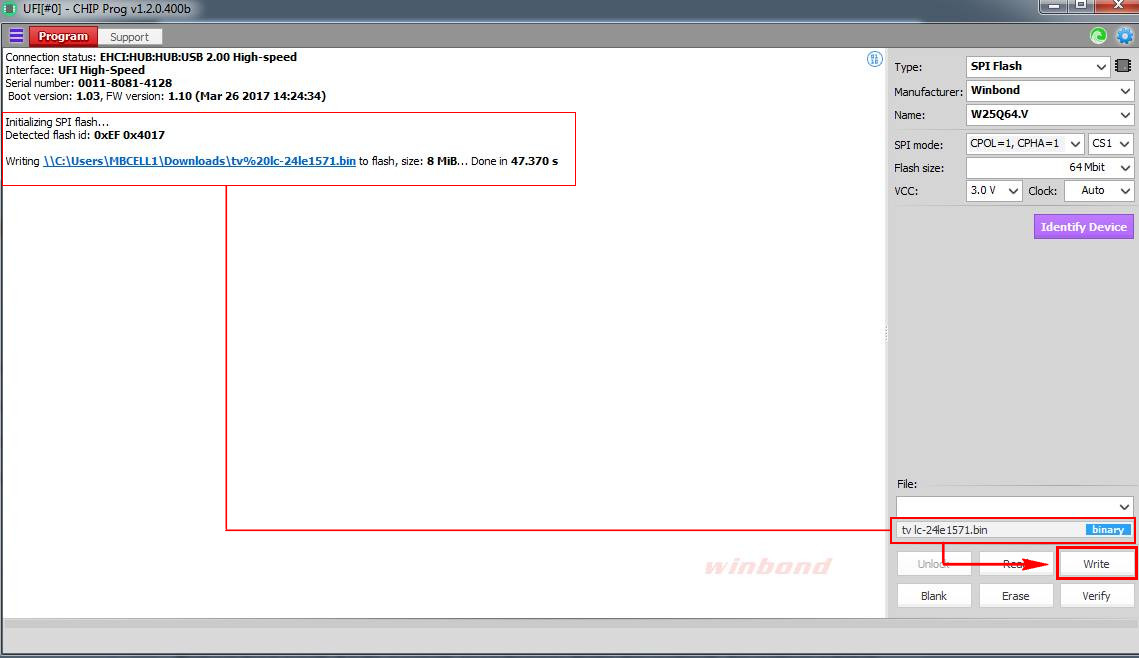

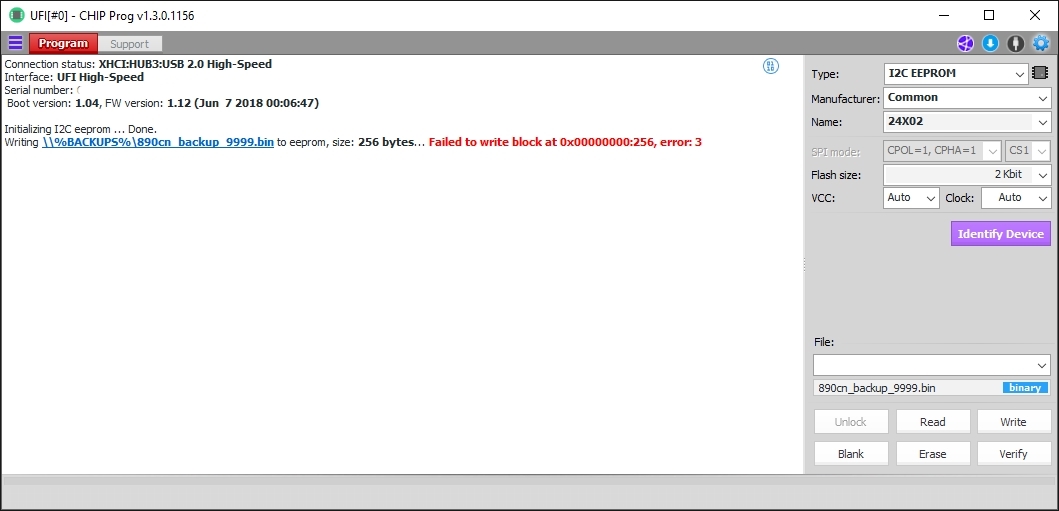

Write Flash

proxy.php?image=https%3A%2F%2Fs21.postimg.cc%2Fxdygurqlz%2Fjwpuaflw.jpg&hash=e2b9e55df0271e6e6f126d09dab1a122

credit : Ali Mubarock
