Help BGA 254 emmc pinout need help please

[test99]

Hellow good day to all I need
BGA 254 EMMC correct pinout
I have oppo r17 password problem
I can fullout the emmc chip and itry to find isp pinout for the next oppo r17 client no need to fullout emmc chip if I find the isp pinout

Hopefully can help me if I correctly find the isp pinout I will post here the isp pinout



[Madgoeslim]

Hello,

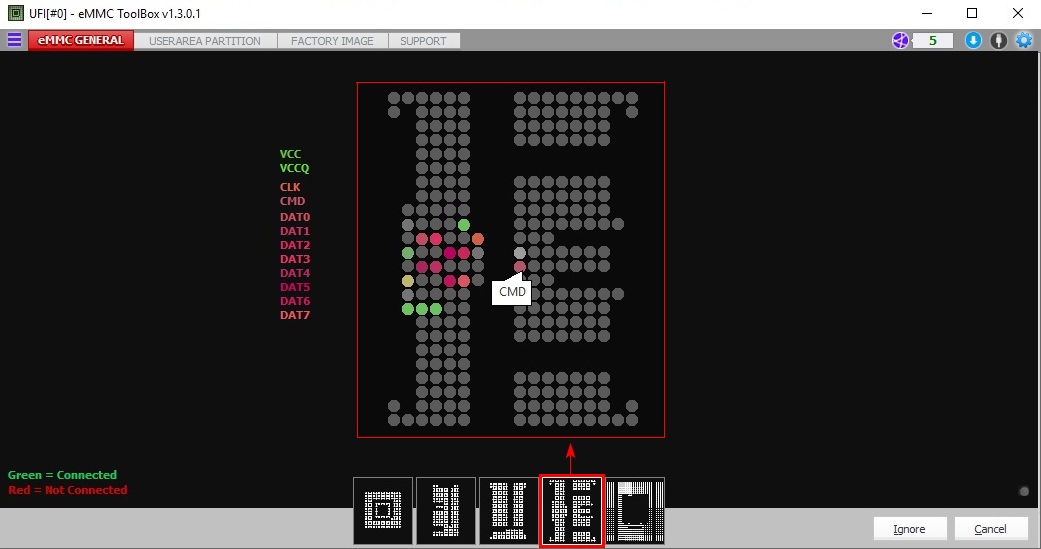

Correct pinout available at UFI eMMC ToolBox.
Just do "Identify eMMC" without eMMC Adapter,
the Insertion Test window will appear,
and you can select BGA 254 to see the connection pinout there.

Please login to view image

photo hosting



[elvin]

i have too...



[rameshwar sharma]

BGA-254 emmc pinout On Board

Please login to view image
