Start Connect v2.92
Selected config: 0_base/base_v2316
Protocol: Boot [DA] Factory
Port: BROM + PL; Force BROM: Off; USB High-Speed: On
DA Key: custom; L-SLA: Off; Auto-EMI: On
Power device Off and connect cable now
Remember Volume Up/Down or Test-Point
Waiting for device...
[ BOOTROM #42 ] MediaTek USB Port (COM42)
Waiting for boot Ack...
Boot Init... Ok
MT6765 HWs: 0x8A00 HWv: 0xCA00 HWc: 0x0766 SWv: 0x0000 Evo: 0x0000 Helio Cervino|P35|G35|G36|G37|G50 Type: [Raphael]
SecLevel: 0x00E5 SBC+SDA+EXT; BROM/BL ver: 0x05/0xFE [BOOTROM]
SoC support by Boot [FF] FireFly: Yes
MEID: 94CFA263918F5D133117049B051C9C77
SOCID: 7FD70BAD0A9666F342136EFA1F3BB9ADD40B73F591A10D30FD6EB7CE434AC1A1
VNID: C6D0EA0BBC5685EF568E97BB655D357BB1ECEAD9B039A7379D597011B10F5E03
SLA: Local Auth [Forced]
configure libusb... Ok
Auth v1... Ok Ok Ok
Looking for EMI... Found Verified Stored
SLA start handshake? Auth Passed; SecLevel: 0x00E0
EMI loaded by MEID
[07fb00a6] C:\InfinityBox\CM2MT2\boot\0_base\base_v2316\MTK_AllInOne_DA.1d5fdec4.bin
Looking for bootcode... Ok
Vendor ID: 255 generic
Sending DA1... Ok [Required: Yes, Adjustable: Yes, Adjusted: Yes]
Jump to DA... Ok
Sync... Ok
DA sync... Ok
Set PowerKey... Ok
Set PowerSource... Ok
Set ChecksumLevel [none]... Ok
DA Set Params... Ok
Mode: BROM EXT_RAM NOT initialized
EMMC CID: 15010044503644414202B511DC7CA8C9 crc Ok
Vendor: Samsung OEM: 0x0100 ID: 445036444142 [DP6DAB] PRV: 0x02 Serial: 3037846652 0xB511DC7C
MM/YY: 10/2021
EMI FireFly preloader_x688b_h659.bin with 20 memory types [9bd5dabc] slots: no
EMMC LP_DDR4X [90014A684445615033] Hynix 0x014A [hDEaP3] RAM: 6.00 Gb
EMMC LP_DDR4X [90014A68423861503E] Hynix 0x014A [hB8aP>] RAM: 3.00 Gb
EMMC LP_DDR4X [150100444836444142] Samsung 0x0100 [DH6DAB] RAM: 4.00 Gb
EMMC LP_DDR4X [150100445636444242] Samsung 0x0100 [DV6DBB] RAM: 4.00 Gb
EMMC LP_DDR4X [13014E47314A395339] Micron 0x014E [G1J9S9] RAM: 4.00 Gb
EMMC LP_DDR4X [90014A484347386134] Hynix 0x014A [HCG8a4] RAM: 4.00 Gb
EMMC LP_DDR4X [90014A484347386134] Hynix 0x014A [HCG8a4] RAM: 6.00 Gb
EMMC LP_DDR4X [90014A68433861503E] Hynix 0x014A [hC8aP>] RAM: 4.00 Gb
EMMC LP_DDR4X [90014A68433861503E] Hynix 0x014A [hC8aP>] RAM: 6.00 Gb
EMMC LP_DDR4X [90014A684339615033] Hynix 0x014A [hC9aP3] RAM: 4.00 Gb
EMMC LP_DDR4X [90014A68433861503E] Hynix 0x014A [hC8aP>] RAM: 3.00 Gb
EMMC LP_DDR4X [150100445036384D42] Samsung 0x0100 [DP68MB] RAM: 3.00 Gb
EMMC LP_DDR4X [13014E53304A394B39] Micron 0x014E [S0J9K9] RAM: 4.00 Gb
EMMC LP_DDR4X [150100445636444142] Samsung 0x0100 [DV6DAB] RAM: 4.00 Gb
EMMC LP_DDR4X [150100445036444142] Samsung 0x0100 [DP6DAB] RAM: 4.00 Gb
EMMC LP_DDR4X [150100445636444D42] Samsung 0x0100 [DV6DMB] RAM: 4.00 Gb
EMMC LP_DDR4X [150100444436384D42] Samsung 0x0100 [DD68MB] RAM: 3.00 Gb
EMMC LP_DDR4X [150100445036444242] Samsung 0x0100 [DP6DBB] RAM: 4.00 Gb
EMMC LP_DDR4X [150100445836384D42] Samsung 0x0100 [DX68MB] RAM: 3.00 Gb
EMMC LP_DDR4X [90014A68423861503E] Hynix 0x014A [hB8aP>] RAM: 3.00 Gb
Push EMI... EXT_RAM CFG Passed
Boot DA2... Ok [Required: Yes, Adjustable: Yes, Adjusted: Yes]
DA Sync... Ok
DA Auth no need
Get hardware info...
SRAM: 0x0003A000 232.00 Kb
DRAM: 0x100000000 4.00 Gb
EMMC CID: 15010044503644414202B511DC7CA8C9 crc Ok
Vendor: Samsung OEM: 0x0100 ID: 445036444142 [DP6DAB] PRV: 0x02 Serial: 3037846652 0xB511DC7C
MM/YY: 10/2021
BOOT1: 0x00400000 4.00 Mb
BOOT2: 0x00400000 4.00 Mb
RPMB: 0x01000000 16.00 Mb
USER: 0xE8F800000 58.24 Gb
MT6765 HWs: 0x8A00 HWv: 0xCA00 HWc: 0x0766 SWv: 0x0000 Evo: 0x0000 Helio Cervino|P35|G35|G36|G37|G50 Type: [Raphael]
MEID: 94CFA263918F5D133117049B051C9C77
SOCID: 7FD70BAD0A9666F342136EFA1F3BB9ADD40B73F591A10D30FD6EB7CE434AC1A1
HRID: A40C5F1C52073FAFAA43A702FF62F176
RNID: 80F01A62E7B2507DA7933DAC5FE80A76
VNID: C6D0EA0BBC5685EF568E97BB655D357BB1ECEAD9B039A7379D597011B10F5E03
USB: HIGH-SPEED
[Adjustable: Yes, Adjusted: Yes, Allow errors: Yes, Collision: 56|4]
Boot done 19 sec
[ff3] ping... Ok v03.00.06.02.01.00
EMMC Life Ok
RPMB key not set, insecure device
Get 1st partition table... Ok 203 us GPT Ok
PGPT 41 entries
Read [preloader]... Ok 297 us
preloader (0) MT6765 preloader_x688b_h659.bin with 20 memory types [d280759b] slots: no
Read [preloader_backup]... Ok 296 us
preloader (1) MT6765 preloader_x688b_h659.bin with 20 memory types [d280759b] slots: no
BROM: On; sbc: On; daa: On; sla: Off;
Device has no slots
Probe LK...
lk [c8409d52] x688b_h659-c6978bb65-20221101160310-20230324181130
Device has no slots
Probe boot...
recovery;gzip;ramdisk size 19.40 Mb;2 found
boot;gzip;ramdisk size 1.45 Mb;1 found Ok 985 us
Verify firmware [MT6765_INFINIX_MOBILITY_LIMITED_Infinix_X688B_OSv11_X688B-H659ABCDEFGHIJKLMNO-R-GL-230324V619_RP1A.200720.011_x688b_h659]... Exist (1) 1 sec
Probe userdata...
Load userdata... Ok 16 us userData: [FS f2fs] plain
Backup 57 items to C:\InfinityBox\CM2MT2\backup\MT6765__94CFA263918F5D133117049B051C9C77_infinix-mobility-limited-infinix-x688b-x688b-gl\
Read [seccfg] Ok 546 us
Read [nvram] Ok 4 sec
Read [nvdata] Ok 4 sec
Read [proinfo] Ok 219 us
Read [lk] Ok 93 us
Read [nvcfg] Ok 2 sec
Read [protect1] Ok 562 us
Read [pgpt] Ok 16 us
Read [persist] Ok 3 sec
Read [preloader] Ok 296 us
probe files...
Done 10 files 17 sec
Compress: C:\InfinityBox\CM2MT2\backup\MT6765__94CFA263918F5D133117049B051C9C77_infinix-mobility-limited-infinix-x688b-x688b-gl\ Ok
Verify C:\InfinityBox\CM2MT2\backup\MT6765__94CFA263918F5D133117049B051C9C77_infinix-mobility-limited-infinix-x688b-x688b-gl.7z Enough [infinix-mobility-limited-infinix-x688b-x688b-gl] 3 sec
Load nvram...
NVRAM: 162 items; State: Ok
WiFi MAC: FC:29:E3:B0:42:ED
BT MAC: FC:29:E3:B0:42:EC
IMEI1: 359617272396464
IMEI2: 359617272396472
PSN1: 076832521K028058
get modem info... TK_MD_BASIC_MDBIN_PCB01_MT6765_S00.MOLY_LR12A_R3_MP_V149_4_P65
Secondary RPMB... present
Probe FRP... Most probably Off
Probe bootloader... Seems as locked
Stop [Job 20107079] Connect v2.92 1 min 8 sec => Keep connection

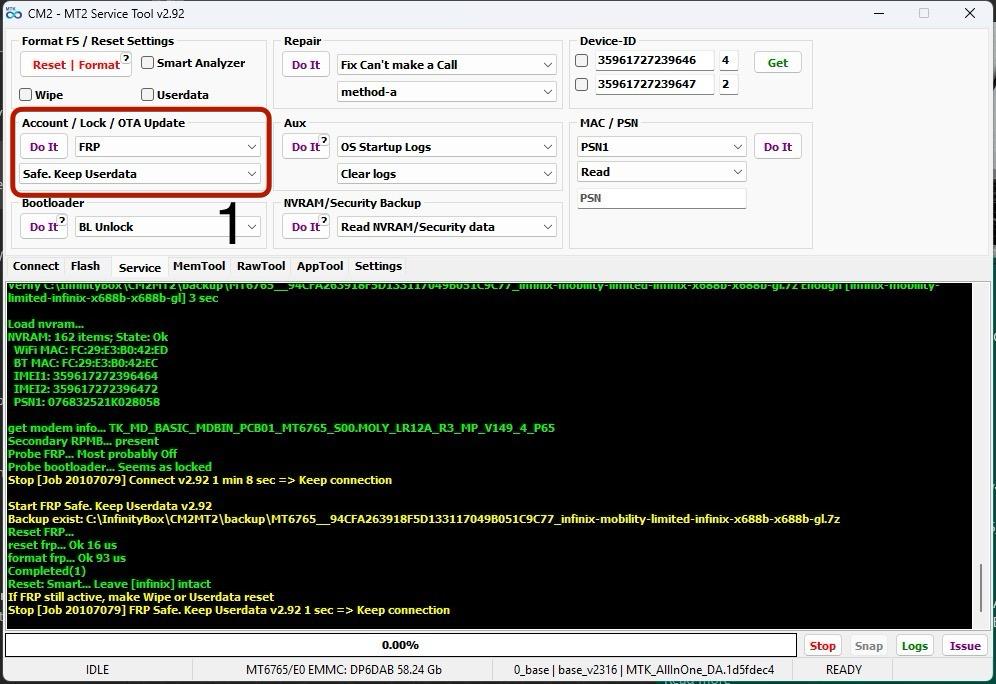

Start FRP Safe. Keep Userdata v2.92
Backup exist: C:\InfinityBox\CM2MT2\backup\MT6765__94CFA263918F5D133117049B051C9C77_infinix-mobility-limited-infinix-x688b-x688b-gl.7z
Reset FRP...
reset frp... Ok 16 us
format frp... Ok 93 us
Completed(1)
Reset: Smart... Leave [infinix] intact
If FRP still active, make Wipe or Userdata reset
Stop [Job 20107079] FRP Safe. Keep Userdata v2.92 1 sec => Keep connection
