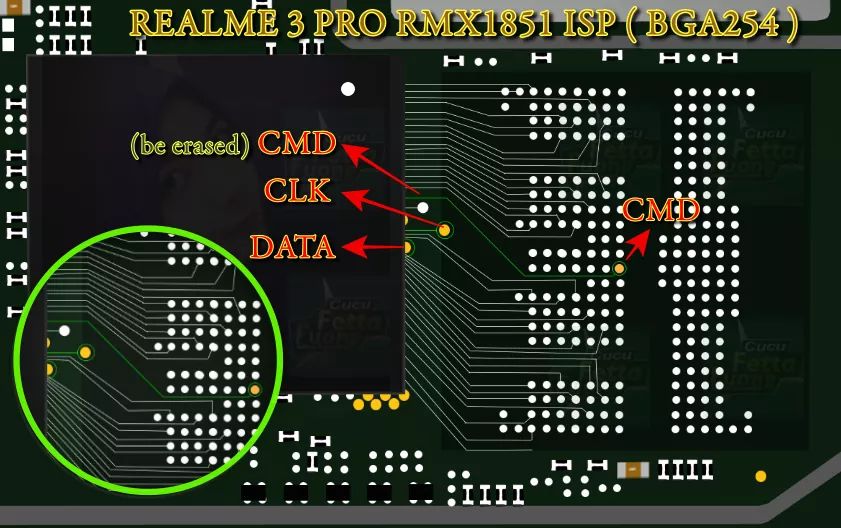

Realme 3pro ( rmx1851 ) isp pinout By Dr.ResearchCenter Team
Dr.ResearchCenter Team
Dr.ResearchCenter Team
Last edited:
Realme 3pro ( rmx1851 ) isp pinout By Dr.ResearchCenter Team
- Thread starter Dr.sunilsingh
- Start date
(SOFTWARE~DEVELOPER)
Active Member
- Jul 16, 2019
- 17
- 9
- PayPal:
-
Thank you very much sirRealme 3pro ( rmx1851 ) isp pinout By Dr.ResearchCenter Team
Dr.ResearchCenter Team
tested sir thx you isp goodRealme 3pro ( rmx1851 ) isp pinout By Dr.ResearchCenter Team
Dr.ResearchCenter Team
reliableshop
Active Member
Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-9637
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... CLK not properly connected
Init bus...
VCC: 2.8 V, VCCQ: 1.8 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---
Interface: UFI High-Speed
Serial number: 0011-8840-9637
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... CLK not properly connected
Init bus...
VCC: 2.8 V, VCCQ: 1.8 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---
not wo
not working isp pin outRealme 3pro ( rmx1851 ) isp pinout By Dr.ResearchCenter Team
Dr.ResearchCenter Team
