Samsung Galaxy Grand 2 SM-G7102 eMMC Pinout | Direct Points + eMMC File (ATF)
eMMC BOOT Repair 4.4.2 G7102DXUBNH1
SM-G7102_4.4.2_G7102DXUBNH1.mmc
Other:
eMMC BOOT Repair 4.4.2 G7102XXUBNG4
SM-G7102_8GB_4.4.2_G7102XXUBNG4.mmc

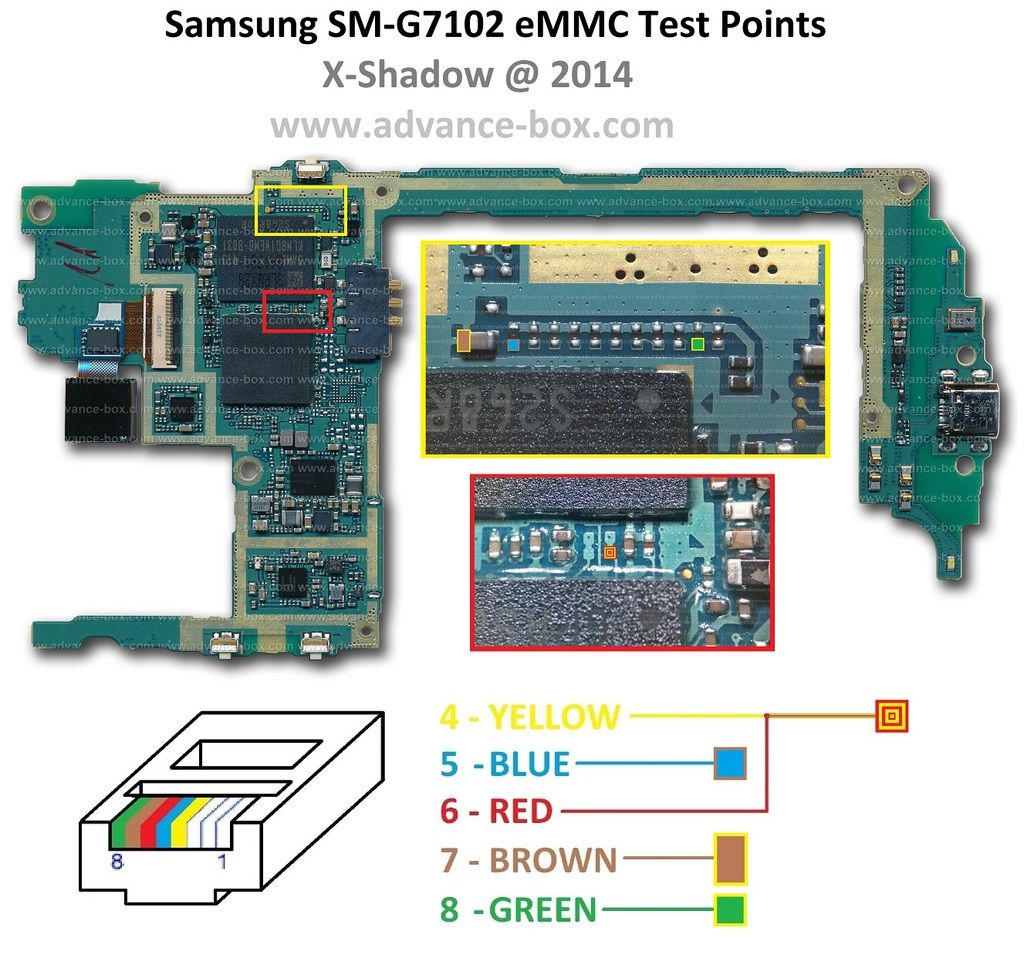

Test Point Picture (ONLY 4 Wires + USB Cable):
Procedure:
eMMC Files need to open it via
ATF Plus -----> eMMC Tool
After you load it there, all will be automatic.
After Finish Flash BL File + PIT of this version FW above, Done!!!
NOTE: Can use other FW version, Important that later Flash Same version of Fw used above for repair.
It's all
