HOT SAMSUNG A32 A325f FRP RESET CM2 VIA TEST POINT

jaanjaan

Friend's Martview
Aug 26, 2017
177
87
punjab
Skype
[email protected]
Boot done!

Product Brand : samsung
Product Device : a32
Product Model : SM-A325F
Product Name : a32xx
Patch Level : RP1A.200720.012
Display ID : RP1A.200720.012.A325FXXU1AUH2
Build Time : 04.08.2021
Ver. CodeName : REL
Ver. Release : 11
Sec. Patch : 2021-08-01
Product Info : a32
Product Board : k69v1_64_titan_marmot
Board Platform : mt6768
Product Manfct : samsung

NVRAM : TITAN_A32LTE_R0MP1_K69V1_64_BSP_MDBIN_PCB01_MT6768_S00.MOLY_LR12A_R3_TC10_6M_PR_A32_LTE_SP_V2_P30
NVRAM : 0xBF13C189
NVRAM : State : Ok!
INFO : WiFi MAC : 000000000000
INFO : BlTh MAC : 000046000001
INFO : IMEI[1] : D1A19D2E47D37C0
INFO : IMEI[2] : FBD678A89A168D6

Backup sensetive data [ 16 ]
Backup path : Backup\MT6768__2DE8050649622654E6EDDC11F72D476E\
[5] Read : NVRAM
[27] Read : NVDATA
[33] Read : PROINFO
[13] Read : LK
[26] Read : NVCFG
[17] Read : PROTECT1
[18] Read : PROTECT2
[1] Read : PGPT
[0] Read : PRELOADER
[2] Read : EFS
[3] Read : SEC_EFS
[32] Read : PERSISTENT
Backup done!


STORAGE : Life Status : eMMC : OK!
STORAGE : OTP Status : NOT Enabled!

Done!
Elapsed: 00:00:49

Operation : Memory Tool Init [ v2.28 ]

1. Make sure device is powered off. Power off, if need. Wait 20 seconds after
2. Insert USB cable in phone
Waiting for device connection ...

PTFN : MediaTek USB Port_V1632 (COM5)
MODE : BOOTROM
PORT : 5
Waiting BOOT ack ...
BROM : Skip ACK verify
BROM : Init BROM
BROM init passed!
CHIP : MT6768 , SBID : 0x8A00 , HWVR : 0xCA00 , SWVR : 0x0000
CODE : Talbot
TYPE : MODERN [RAPHAEL]
BROM : MEID : 2DE8050649622654E6EDDC11F72D476E
BROM : SecLevel : 0x000000E5
BROM : SecMode : SBC+SDA+EXT
BROM : BROM|BL : 0x05|0xFE
BROM : BOOTROM
BROM : SOCID : 6CBA28242EDE6B31F8826B720709C4782B2765566700A9F256B2009AE5355BF8
BROM : SLA : Local Auth
BROM : SLA : Auth Started!
BROM : SLA : Auth Passed!
BROM : SLA : 0x0000001F
BROM : PreBoot stage #1
BROM : PreBoot stage #2
AGENT : 0_base : BASE_v2112 | Manual : Disabled
AGENT : Look for suitable BootChain in DA ...
AGENT : MTK_AllInOne_DA.bin
AGENT : Found MT6768
AGENT : MTK_DOWNLOAD_AGENT
BROM : Sending 1st DA ...
BROM : DA sent
BROM :Transfer control to DA ...
DA : AGENT started!
DA : SYNC
DA : MODE : BROM
DA : EXT_RAM NOT initialized!
EMI : DEV : FireFly
EMI : SRC : preloader_k69v1_64_titan_marmot.bin
EMI : CNT : 000C
EMI : Init EMI from INTERNAL DB
EMI : EXT_RAM CFG Passed!
DA : BOOT to 2nd DA ...
DA : 2ND stage confirmed!
DA : SYNC with DA passed!
DA : Receiving HW info

SRAM: 0x00070000 [ 448.00 KB ]
DRAM: 0x100000000 [ 4.00 GB ]

EMMC: CID : 15010033563643414200AA50DC072809
EMMC: VEN : SAMSUNG : OEM : 0 : ID : 335636434142
EMMC: VEN : SAMSUNG : 3V6CAB
EMMC: SNN : 2857425927 ( 0xAA50DC07) , MF : 2/2021

EMMC:
BOOT1 : 0x00400000 [ 4.00 MB ]
BOOT2 : 0x00400000 [ 4.00 MB ]
RPMB : 0x01000000 [ 16.00 MB ]
USER : 0x1D1F000000 [ 116.48 GB ]

CHIP : MT6768 , SBID : 0x8A00 , HWVR : 0xCA00 , SWVR : 0x0002 , EVOL : 0x0000

RNID : E4A48C17A5B7BC5817A05BC1637D72D1

DA : USB : HIGH-SPEED

Boot done!

Set default path : C:\InfinityBox\CM2MT2\phdata\

Ready!

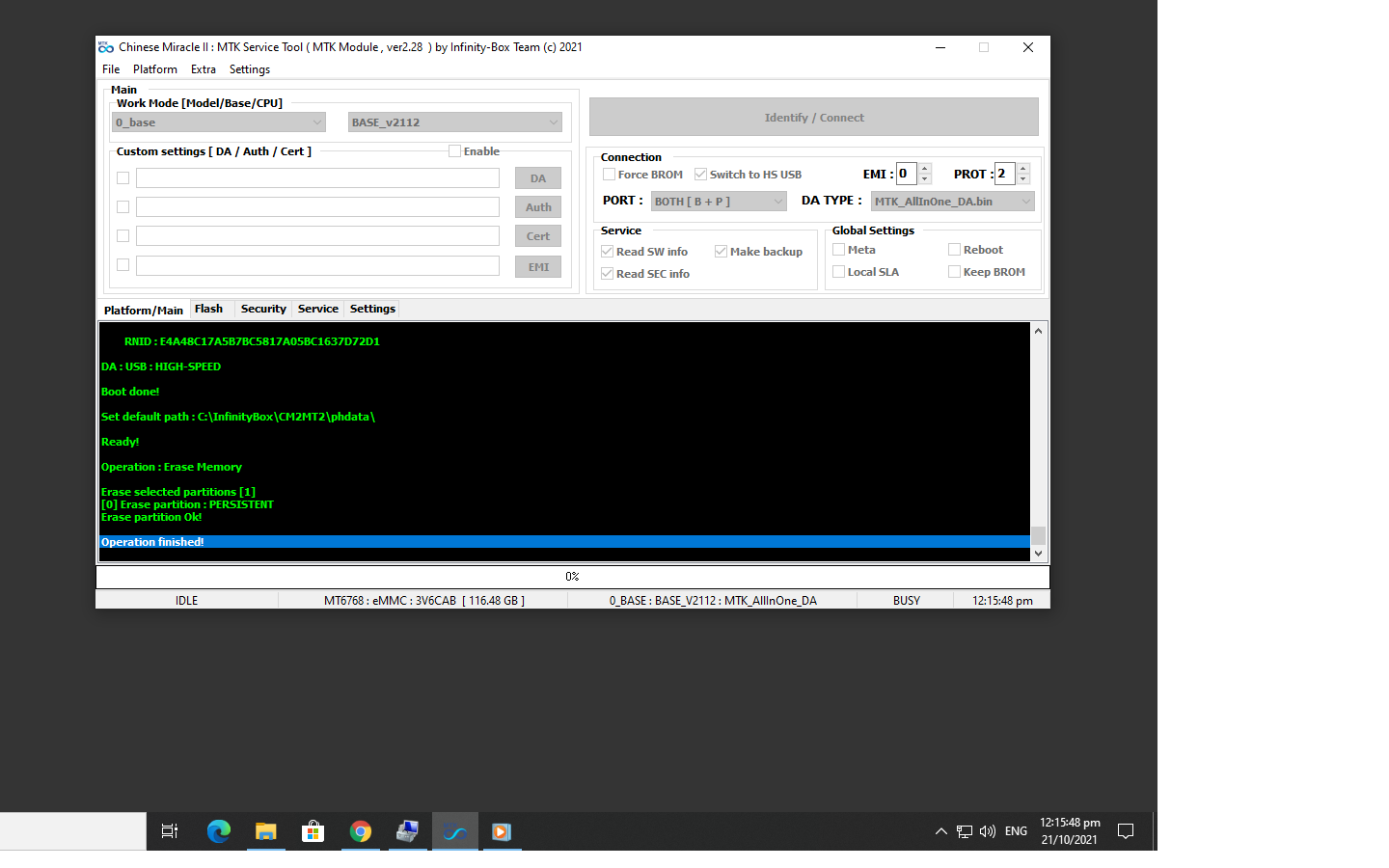

Operation : Erase Memory

Erase selected partitions [1]
[0] Erase partition : PERSISTENT
Erase partition Ok!

Operation finished!




jaanjaan

Friend's Martview
Aug 26, 2017
177
87
punjab
Skype
[email protected]
process pls?

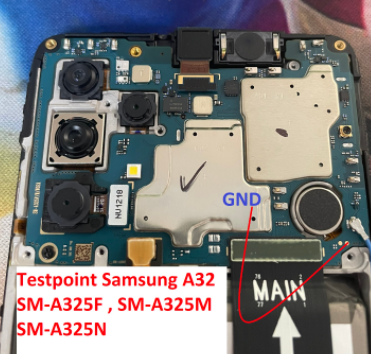

1st of all open your mobile and find the test ponit like see my post 2nd open cm2mt2 2.28 and identify your mobile and connect test point and pluge usb cable then again cm2 tab and goto Extra tab and read memory
Turn off your Samsung mobile Samsung A32 (A325F A325F/D A325M)

Remove the back cover

Unplug the battery

Open CM2 MT2.exe
Click on Identify / Connect

Short-test the test points and connect the usb cable.

Wait a moment

After reading, disconnect the Samsung a32 mobile

Then

Click on extra , it will open the CM2 memory tool (Emmc).
Click on Init Device

Short test points and connect the usb cable

Wait a few seconds to fully initialize the cm2 phone.

Scroll down and find "PERSISTENT".

Highlight (CHECK) PERSISTENTON and expand the

Right click on RD : FILE : c:/xxxxxxxxxx

And read selected (for backup)
After successful backup

Right-click again on RD : FILE : c:/xxxxxxxxxx and click Wipe Selected.
A "Apop up message " will appear on the screen.

Click "YES".
Wait until the process is complete
After success, unplug the Samsung a32 from the wall outlet, connect the battery and turn it on.

Congratulations, the Samsung a32 lock has been removed.



For better understanding watch video guide
subscribe my youtube chanal


sorce
sorce


khalidaka

Junior Member
Dec 10, 2016
1
1
karachi
hi bro need nvrm file
Load IDBase v718267 Ok!

UserName and/or Password not set! Can't continue!

Update failed! Check settings and/or internet connection!

Operation : Identify [ v2.28 ]

Mode : FLASH

1. Make sure device is powered off. Power off, if need. Wait 20 seconds after
2. Insert USB cable in phone
Waiting for device connection ...

PTFN : MediaTek USB Port_V1632 (COM41)
MODE : BOOTROM
PORT : 41
Waiting BOOT ack ...
BROM : Skip ACK verify
BROM : Init BROM
BROM init passed!
CHIP : MT6768 , SBID : 0x8A00 , HWVR : 0xCA00 , SWVR : 0x0000
CODE : Talbot
TYPE : MODERN [RAPHAEL]
BROM : MEID : 3C55ECA293A2E62A06A8635C282435B7
BROM : SecLevel : 0x000000E5
BROM : SecMode : SBC+SDA+EXT
BROM : BROM|BL : 0x05|0xFE
BROM : BOOTROM
BROM : SOCID : 890C4AB00A6C9FC14AF649FB646B605B5DA476B0EDCD99673DF3D66E38D70421
BROM : SLA : Local Auth
BROM : SLA : Auth Started!
BROM : FF : Look for EMI
BROM : FF : EMI found!
BROM : SLA : Auth Passed!
BROM : SLA : 0x0000001F
BROM : PreBoot stage #1
BROM : PreBoot stage #2
AGENT : 0_base : BASE_v2112 | Manual : Disabled
AGENT : Look for suitable BootChain in DA ...
AGENT : MTK_AllInOne_DA.bin
AGENT : Found MT6768
AGENT : MTK_DOWNLOAD_AGENT
BROM : Sending 1st DA ...
BROM : DA sent
BROM :Transfer control to DA ...
DA : AGENT started!
DA : SYNC
DA : MODE : BROM
DA : EXT_RAM NOT initialized!
EMI : DEV : FireFly
EMI : SRC : preloader_k69v1_64_titan_marmot.bin
EMI : CNT : 000C
EMI : Init EMI from INTERNAL DB
EMI : EXT_RAM CFG Passed!
DA : BOOT to 2nd DA ...
DA : 2ND stage confirmed!
DA : SYNC with DA passed!
DA : Receiving HW info

SRAM: 0x00070000 [ 448.00 KB ]
DRAM: 0x100000000 [ 4.00 GB ]

EMMC: CID : 1501003356364341420044F8D4CB3875
EMMC: VEN : SAMSUNG : OEM : 0 : ID : 335636434142
EMMC: VEN : SAMSUNG : 3V6CAB
EMMC: SNN : 1157158091 ( 0x44F8D4CB) , MF : 3/2021

EMMC:
BOOT1 : 0x00400000 [ 4.00 MB ]
BOOT2 : 0x00400000 [ 4.00 MB ]
RPMB : 0x01000000 [ 16.00 MB ]
USER : 0x1D1F000000 [ 116.48 GB ]

CHIP : MT6768 , SBID : 0x8A00 , HWVR : 0xCA00 , SWVR : 0x0002 , EVOL : 0x0000

RNID : B06299E397A8B0F81FDA1DAD7D17A652

DA : USB : HIGH-SPEED

Boot done!

Product Brand : samsung
Product Device : a32
Product Model : SM-A325F
Product Name : a32xx
Patch Level : RP1A.200720.012
Display ID : RP1A.200720.012.A325FXXU2AUJ4
Build Time : 18.10.2021
Ver. CodeName : REL
Ver. Release : 11
Sec. Patch : 2021-11-01
Product Info : a32
Product Board : k69v1_64_titan_marmot
Board Platform : mt6768
Product Manfct : samsung



NVRAM : TITAN_A32LTE_R0MP1_K69V1_64_BSP_MDBIN_PCB01_MT6768_S00.MOLY_LR12A_R3_TC10_6M_PR_A32_LTE_SP_V2_P35
NVRAM : Damaged!


Backup sensetive data [ 16 ]
Backup path : Backup\MT6768__3C55ECA293A2E62A06A8635C282435B7\
[5] Read : NVRAM
[27] Read : NVDATA
[33] Read : PROINFO
[13] Read : LK
[26] Read : NVCFG
[17] Read : PROTECT1
[18] Read : PROTECT2
[1] Read : PGPT
[0] Read : PRELOADER
[2] Read : EFS
[3] Read : SEC_EFS
[32] Read : PERSISTENT
Backup done!


STORAGE : Life Status : eMMC : OK!
STORAGE : OTP Status : NOT Enabled!

Done!
Elapsed: 00:00:47

  • Like
Reactions: farnianfar
