Samsung G-615F Dead Boot Repair/ Dead Mtk Port Recover Sucessfully

[Deepesh Sharma]

Samsung J7 Max[G615F] Dead Mtk Port Set Alive Sucessfully
Got Water Damage Handset Fully Dead
1St Reboll Power Ic Now Set Come In Dead Port MTK USB Port

Dead MTK Port

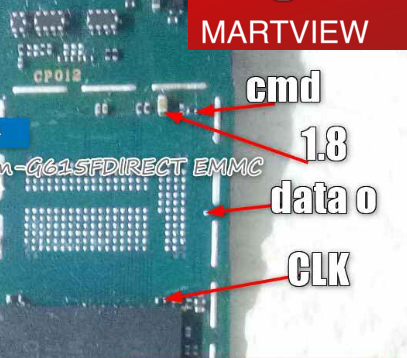

G615 ISP PINOUT

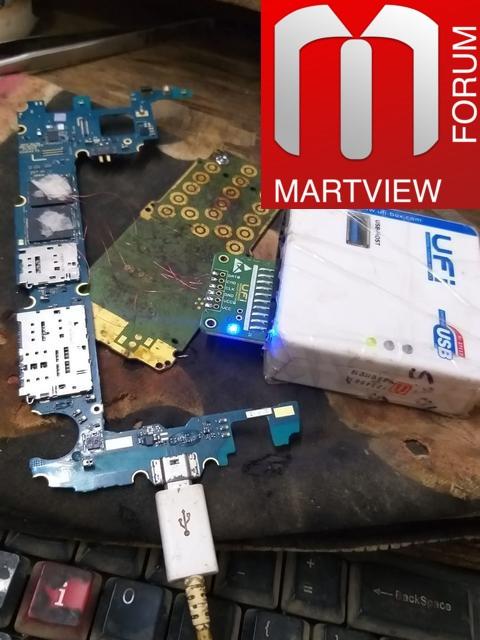

CONNECT WITH ISP PINOUT

Please login to view image

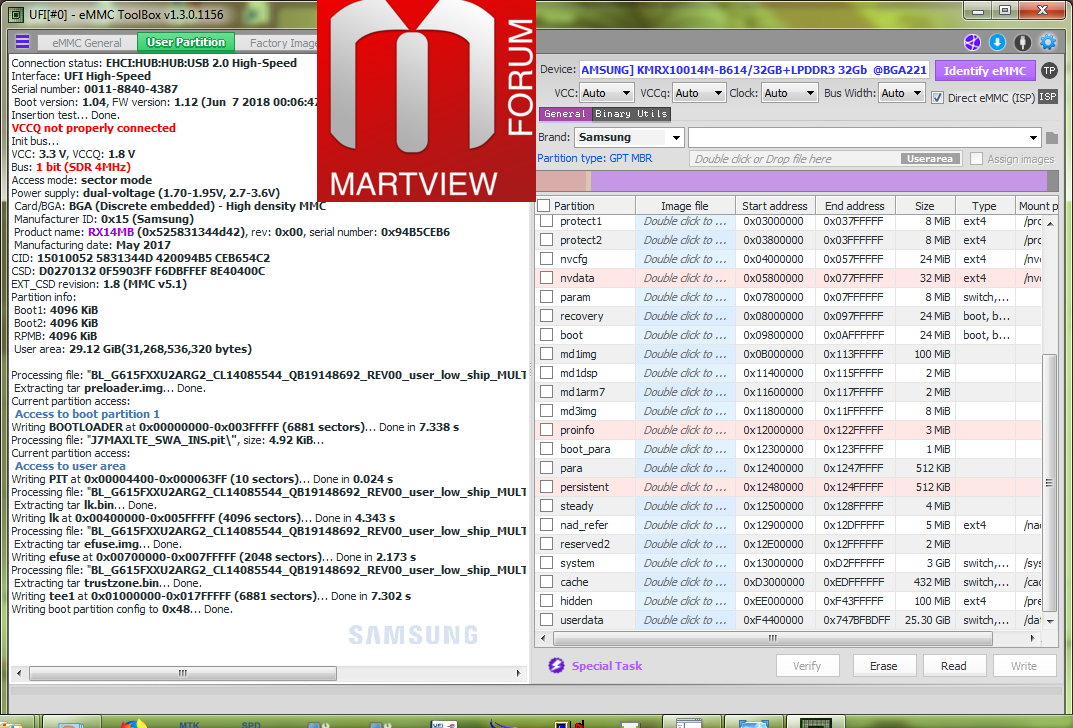

UFI LOG-1

Please login to view image

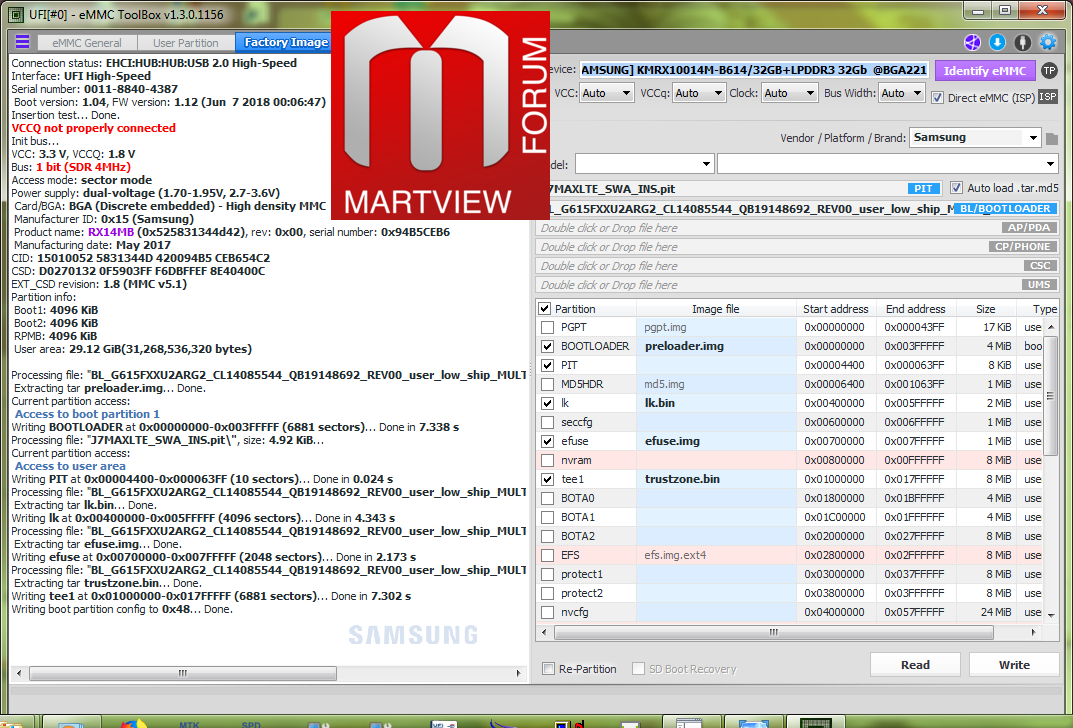

UFI LOG-2

Please login to view image

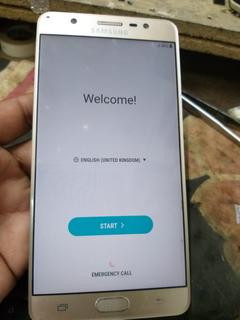

HANDSET ALIVE SUCESSFULLY

Please login to view image

After Emmc Repair BY Ufi Set Working Fine NOW



[ferouzkassim]

the more i see logs of this tool i tend to like it more soooo powerful bt requires creative minds so as long as it can access emmc then ur good to go



[reliableshop]

Please login to view image

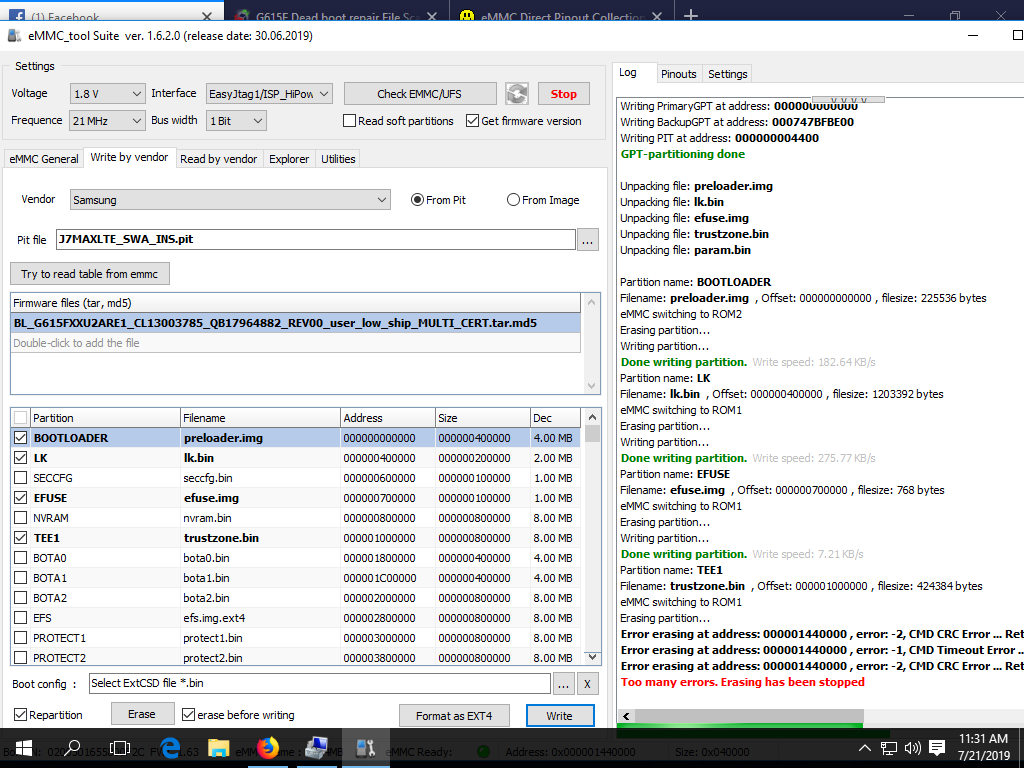

after flash combination U1 file set going dead.
showing error at partition what is the problem and ufi will solve or not? now set codition only mtk port showing



[palash]

bro can give user part



[reliableshop]

bro can give user part

right now i don't have same set but after 15 days customer bring to me after that i will post user part



[arhanmobile]

Please Send Pit File bro sam-g615f



[Jane1]

Samsung J7 Max[G615F] Dead Mtk Port Set Alive Sucessfully
Got Water Damage Handset Fully Dead
1St Reboll Power Ic Now Set Come In Dead Port MTK USB Port

Dead MTK Port

Please login to view image

G615 ISP PINOUT

Please login to view image

CONNECT WITH ISP PINOUT

Please login to view image

UFI LOG-1

Please login to view image

UFI LOG-2

Please login to view image

HANDSET ALIVE SUCESSFULLY

Please login to view image

After Emmc Repair BY Ufi Set Working Fine NOW

Why did you choose ONLY 4 files : preloader.img ,lk.bin ,efuse.img and trustzone.bin ?
Is there any rule which files to flash??
Thanks



[fayyazu7]

Assalamualaikum
Anyone help me I am repair boot G615F
ufi box then same problem MTK driver



[sujilurup]

anyone help me for dead boot g615f with ufi or jtag



[sujilurup]

dead 615f combination file
