Samsung J701F Working ISP Pinout

HITECH CARE

Active Member
Nov 5, 2018
28
86


May People Try With This ISP Pinout But Handset Not Connect
Reason There Is Minor Mistake In Pinout

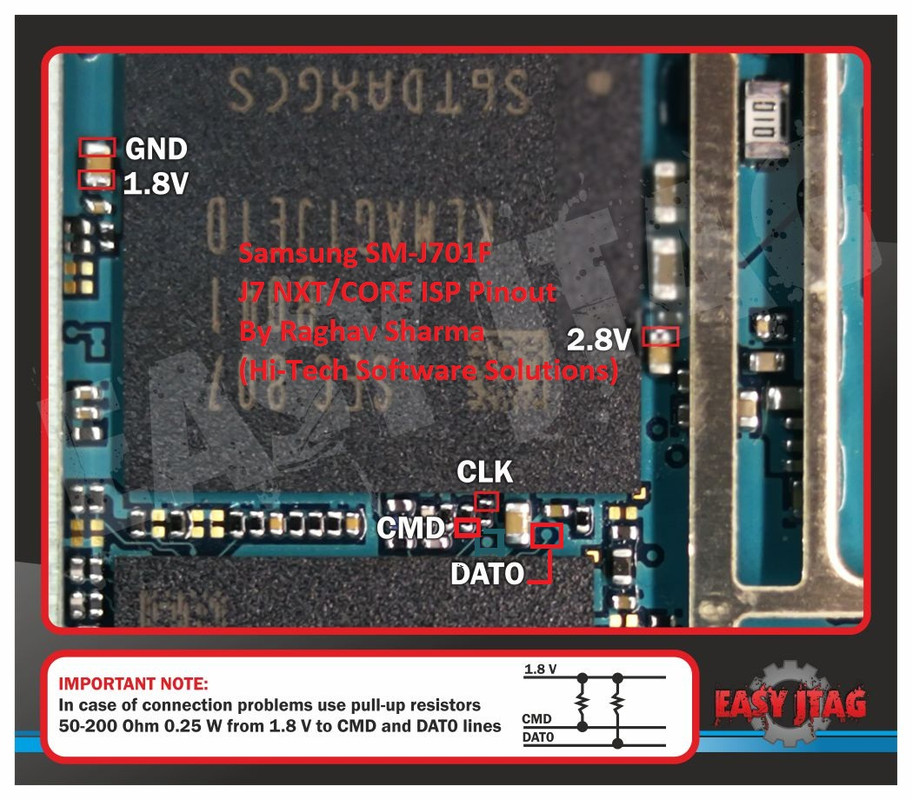

Here I Am Posting Correct ISP Pinout For Samsung SM-J701F J7 NXT/Core

Don't Forget To Hit Like Button If You Like My Post Thanks
Br. Hi-Tech Care


vkdsai

Junior Member
Mar 11, 2019
4
0
hello sir
i m new in here can u give me vcc vccq pin out in this pic
thanks in advanced


vkdsai

Junior Member
Mar 11, 2019
4
0
hello sir
i m doing this but it always say vccq not connected properly and then gives error
Failed to initialize eMMC (return code: 20, CMD Error: Invalid response) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.


All TECH 4 You

Friend's Martview
Feb 26, 2019
673
288
Ahemdabad,Gujrat
pleae solve my problem
i have same problem try with correct pinout but still not connect only showing this error:Can't init device, Reason: CMD Timeout Error


Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 2800 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:536 mV
CMD Active Level:2567 mV
Box IO Level:2800 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
Can't init device, Reason: CMD Timeout Error
Done.

Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 3300 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:567 mV
CMD Active Level:2877 mV
Box IO Level:3300 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
Can't init device, Reason: CMD Timeout Error
Done.

Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 3300 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:2258 mV
CMD Active Level:2846 mV
Box IO Level:3300 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
Can't init device, Reason: CMD Timeout Error
Done.


All TECH 4 You

Friend's Martview
Feb 26, 2019
673
288
Ahemdabad,Gujrat



Sorry Sir But Still Same Problem What Do Next Please Tell Me

Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 1800 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:587 mV
CMD Active Level:1722 mV
Box IO Level:1800 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
Can't init device, Reason: OCR Ready Timeout Error [Check VCC or eMMC DEAD]
Done.

Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 2800 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:649 mV
CMD Active Level:2536 mV
Box IO Level:2800 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
Can't init device, Reason: OCR Ready Timeout Error [Check VCC or eMMC DEAD]
Done.

Z3X EasyJtag Software ver. 3.6.1.9
Loading eMMC GEN1 Firmware... IO: 3300 mV
Box S/N: 0B0170135E37F259, ,FW Ver.: 01.63
CMD Pullup Level:505 mV
CMD Active Level:2794 mV
Box IO Level:3300 mV
CLK Rate:7000 kHz
Bus Width:1bit,SDR
HiPower mode is ON!
Can't init device, Reason: OCR Ready Timeout Error [Check VCC or eMMC DEAD]
Done.


razakhan

Active Member
Aug 17, 2018
26
7
Islamabad Pakistan
Skype
razakhan544
