Martview MS-3D 3D Screwdriver

Xiaomi Redmi 6(cereus)Dead/EMMC Change/reprogramming Done By UFIBOX EMMC Tool

Thanos_92

Thanos_92

Friend's Martview
Oct 25, 2018
131
136

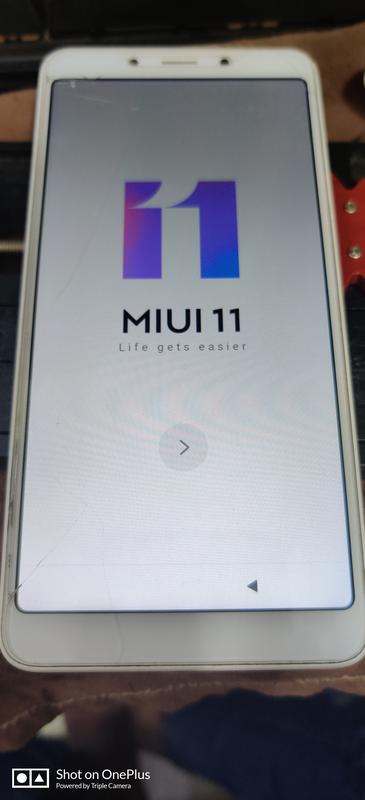

Xiaomi Redmi 6(cereus)Dead/EMMC Change/reprogramming Done By UFIBOX EMMC Tool

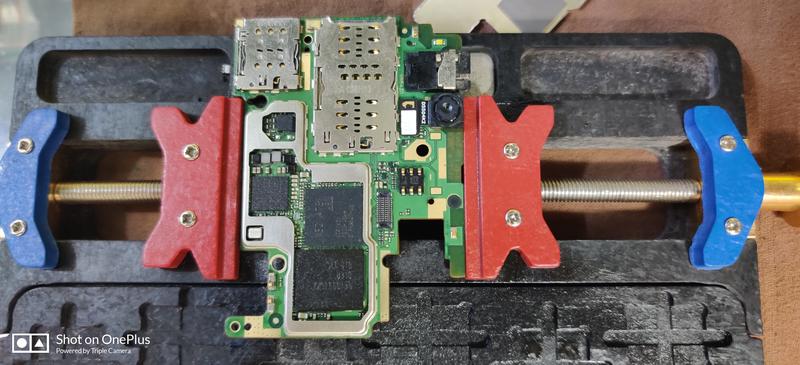

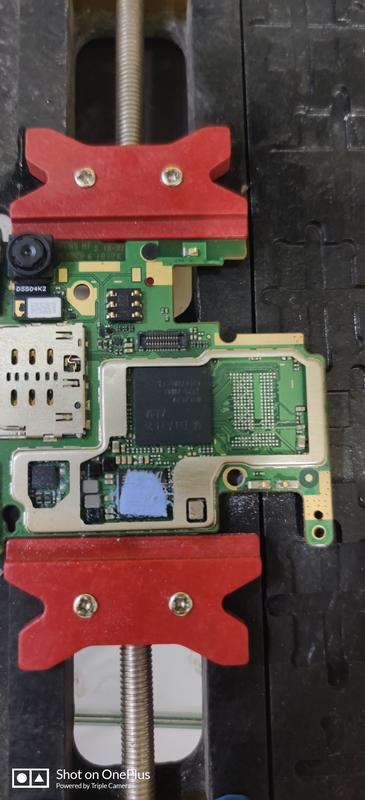

Dead MICRON EMMC Changed To [Samsung] QE63MB

Write Firmware By vendor:
Connection status: XHCI:HUB3:HUB3:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-3514
Boot version: 1.05, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 8 bit (HS SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QE63MB (0x514536334d42), rev: 0x03, serial number: 0x1C5DD28C
Manufacturing date: Feb 2018
CID: 15010051 4536334D 42031C5D D28C254E
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 14.56 GiB(15,634,268,160 bytes)
Writing preloader header... Done
Current partition access:
Access to boot partition 1
Writing preloader at 0x00000000 (463 sectors)... Done in 0.027 s
Writing boot partition config to 0x48... Done
Processing file: "recovery.img"... Writing recovery at 0x00108000 (131072 sectors)... Done in 9.134 s
Processing file: "md1img.img"... Writing md1img at 0x13580000 (110877 sectors)... Done in 5.106 s
Processing file: "spmfw.img"... Writing spmfw at 0x19980000 (102 sectors)... Done in 0.004 s
Processing file: "scp.img"... Writing scp1 at 0x19A80000 (1103 sectors)... Done in 0.050 s
Processing file: "scp.img"... Writing scp2 at 0x19B80000 (1103 sectors)... Done in 0.052 s
Processing file: "sspm.img"... Writing sspm_1 at 0x19C80000 (846 sectors)... Done in 0.042 s
Processing file: "sspm.img"... Writing sspm_2 at 0x19D80000 (846 sectors)... Done in 0.039 s
Processing file: "vbmeta.img"... Writing vbmeta at 0x1FE80000 (8 sectors)... Done in 0.001 s
Processing file: "lk.img"... Writing lk at 0x20680000 (1364 sectors)... Done in 0.061 s
Processing file: "lk.img"... Writing lk2 at 0x20780000 (1364 sectors)... Done in 0.062 s
Processing file: "boot.img"... Writing boot at 0x20880000 (131072 sectors)... Done in 6.070 s
Processing file: "logo.bin"... Writing logo at 0x24880000 (2296 sectors)... Done in 0.104 s
Processing file: "odmdtbo.img"... Writing odmdtbo at 0x28880000 (32768 sectors)... Done in 1.529 s
Processing file: "cust.img"... Writing sparse image cust at 0x29880000 (1048576 sectors)... Done in 37.492 s
Processing file: "tee.img"... Writing tee1 at 0x49880000 (6630 sectors)... Done in 0.305 s
Processing file: "tee.img"... Writing tee2 at 0x49D80000 (6630 sectors)... Done in 0.318 s
Processing file: "vendor.img"... Writing sparse image vendor at 0x4A800000 (1572864 sectors)... Done in 32.811 s
Processing file: "system.img"... Writing sparse image system at 0x7A800000 (5242880 sectors)... Done in 4 mins 3.692 s
Processing file: "cache.img"... Writing sparse image cache at 0x11B000000 (524288 sectors)... Done in 0.017 s
Processing file: "userdata.img"... Writing sparse image userdata at 0x12B000000 (6291456 sectors)... Done in 19.032 s
Writing boot partition config to 0x48... Done
Click to expand...


EMMC INFO:
Connection status: XHCI:HUB3:HUB3:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-3514
Boot version: 1.05, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 8 bit (HS SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QE63MB (0x514536334d42), rev: 0x03, serial number: 0x1C5DD28C
Manufacturing date: Feb 2018
CID: 15010051 4536334D 42031C5D D28C254E
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 14.56 GiB(15,634,268,160 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: MT6765, cpu abi: armeabi-v7a
manufacturer: Xiaomi
board: cereus, name: cereus
brand: xiaomi, model: Redmi 6
build model list: Redmi 6
build id: PPR1.180610.011, version: 8.1.0 Oreo (SW_S98507AE1_V009_M13_XM_C3D_USR)
build description: cereus-user 9 PPR1.180610.011 V11.0.1.0.PCGMIXM release-keys
Internal storage: 3 GiB
crypto state: unencrypted
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMQE60013M-B318/16GB+LPDDR3 16Gb (BGA221)

Click to expand...












Regards.

  • Like
Reactions: atstech and Admin
S

smtel

Active Member
Oct 24, 2018
23
5
If you dont have backup (Dead MICRON EMMC ) , your Redmi 6 will be without imei. Therefore there is no point in replacing memory, only if you watch youtube etc..

Thanos_92

Thanos_92

Friend's Martview
Oct 25, 2018
131
136
smtel said:
If you dont have backup (Dead MICRON EMMC ) , your Redmi 6 will be without imei. Therefore there is no point in replacing memory, only if you watch youtube etc..
Click to expand...

I have other backup ,eng rom etc so Restore its og imei is not a big deal and its already fully recovered device

Thanos_92

Thanos_92

Friend's Martview
Oct 25, 2018
131
136
smtel said:
If you dont have backup (Dead MICRON EMMC ) , your Redmi 6 will be without imei. Therefore there is no point in replacing memory, only if you watch youtube etc..
Click to expand...

I have other backup ,eng rom etc so Restore its og imei is not a big deal

  • Like
Reactions: bozbala
Hojiakbar

Hojiakbar

Friend's Martview
Mar 5, 2020
115
67
UZBEKISTAN
smtel said:
If you dont have backup (Dead MICRON EMMC ) , your Redmi 6 will be without imei. Therefore there is no point in replacing memory, only if you watch youtube etc..
Click to expand...
Hi bro I'm change emmc phone turned on but NV DATA corrupted
no backup emmc is dead
How to me

G

ganig24

Junior Member
May 25, 2017
3
0
india
Thanos_92 said:
Write eng rom
Write 2nd imei only
Flash stock rom.
Click to expand...

after do this method handset booted well and network also came in 2nd sim , but sometimes setting is not opening and hang on settings, am try with 3 pic all is same error and after update ota system destroyed error

Thanos_92

Thanos_92

Friend's Martview
Oct 25, 2018
131
136
ganig24 said:
after do this method handset booted well and network also came in 2nd sim , but sometimes setting is not opening and hang on settings, am try with 3 pic all is same error and after update ota system destroyed error
Click to expand...

Disable ota update by using ufi android toolbox adb

  • Like
Reactions: ganig24
Varoxx

Varoxx

Active Member
Nov 6, 2019
82
49
just put on Redmi 6 or 6a emmc flash from samsung J330f and flashing firmware with any tool
its ok tested by me
