UFI Software Version 1.4.0.1491
UFI Software Version 1.4.0.1491
!!! WARNING: Do not rename "BRAND" and "MODEL" list to be different as at support site, certain features might not working properly !!!
eMMC ToolBox changes:
ADD: [Oppo] MasterClear in USER AREA PART tab, Special Task
ADD: New eMMC5x FFU files for eMMC5x Field Firmware Update
MICRON-S0J9K9(16).ffu
SAMSUNG-3H6CAB(210).ffu
SAMSUNG-DH6DAB(210).ffu
SAMSUNG-GD6BMB(5).ffu

BUGFIX: UFI Lite connection issue
BUGFIX: Minor bugfixes and improvements

Android ToolBox changes:
ADD: Oppo EngineeringMode Task in ADB tab, Special Task
ADD: [Oppo] MasterClear for Qualcomm and MediaTek, Special Task
Wipe Data & App Data - Remove user lock, FRP and third party app
Wipe Data Only - Remove user lock
Wipe App Data Only - Remove FRP and third party app
Format Data - Format all user data

ADD: External Loader selection list for Qualcomm firehose and MediaTek DA and auth (Click on the label)
BUGFIX: MediaTek keep in DA mode issue fixed
BUGFIX: Auth specific routine improved
BUGFIX: Nokia Fastboot flashing issue for (Qualcomm platform)
BUGFIX: Oppo MediaTek flashing issue with error S_PRELOADER_INVALID
BUGFIX: MediaTek flashing issue with error S_FTHND_FILE_IS_NOT_LOADED_YET
BUGFIX: Oppo EDL flashing with VIP issue

NOTE:
Bootloader Authorization service is limited as "Bootloader Authorization" which is required for Identify, Flashing, Read, Write, Erase and Special Task menu
If Bootloader Authorization request fails, you may retry 2 more times at no cost
For any issue and refund claim because of software bugs, you may write an email to support[at]ufibox.com, please include your detailed logs



UFI Software Version 1.4.0.1491

There are 4 scenarios in [Oppo] Master Clear operation
For easy understanding, will explain by using two popular user lock issue in Android,
There is a User Lock (Pin/Passcode) and FRP (Google Account).
And we have also User Data Files: User Apps(include contact and SMS), and Media Files(music, pictures, videos)

1. Wipe Data & App:
This will clear User Lock (Pin/Passcode), and FRP (Google Account), User Apps but will not remove media files.
2. Wipe Data Only:
This will clear User Lock (Pin/Passcode), but not remove FRP (Google Account), and Media Files.
3. Wipe App Data:
This will not Clear User Lock (Pin/Passcode), but will bypass FRP (Google Account). All User Apps and Media Files will stay intact.
4. Format Data:
This will clear User Lock (Pin/Passcode), User Apps and Media Files, but not remove FRP (Google Account).

From the description above, you can adjust according to your customer's needs, and negotiate the highest costs possible.



Follow Us..!!
668866896687


Dr.sunilsingh

Product Manager
Aug 2, 2018
321
562
india
Skype
[email protected]
Sonork ID
1681209

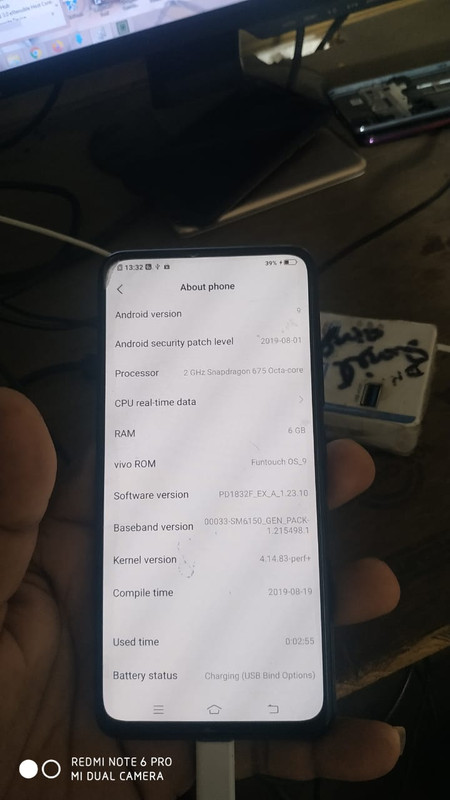

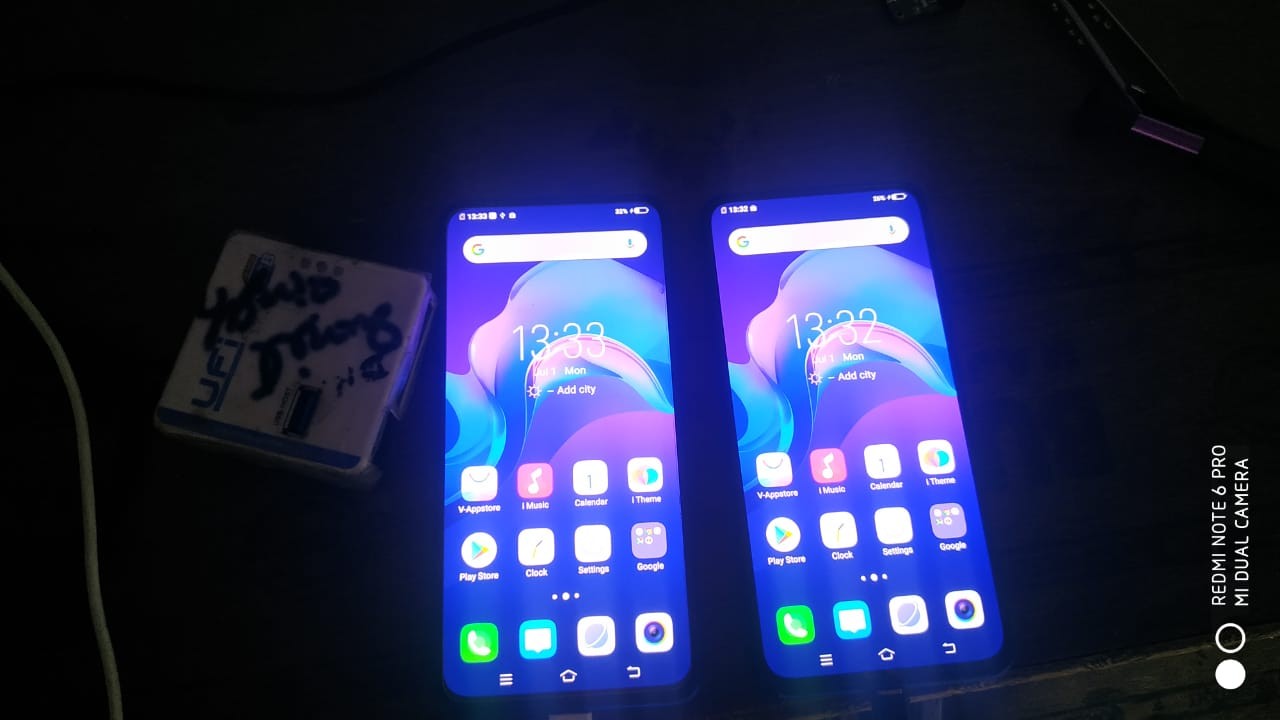

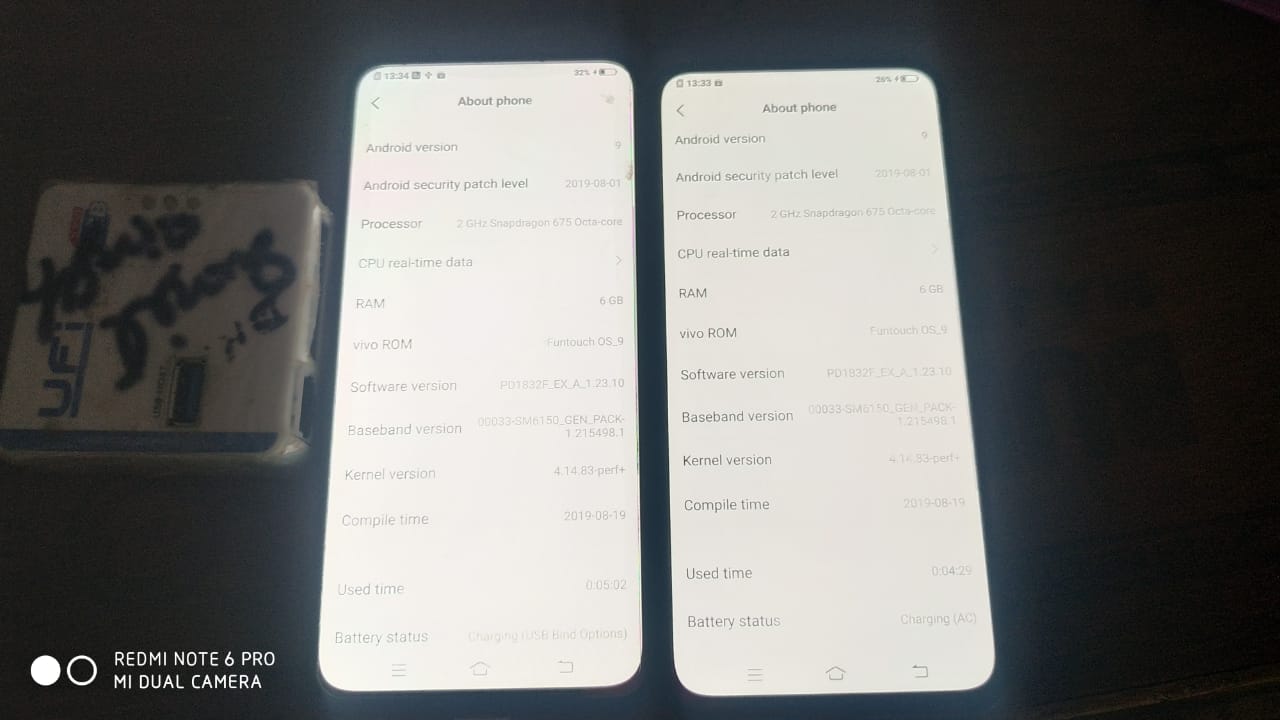

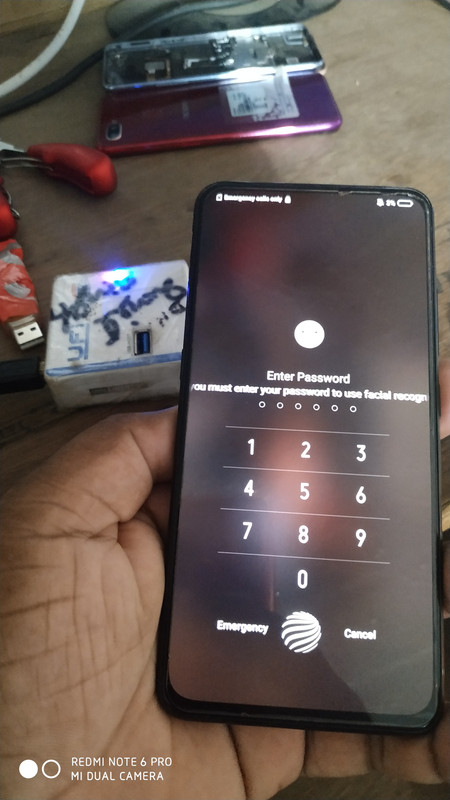

VIVO V15 PRO ( VIVO-1818 ) PD1832F_EX_A_1.23.10___ ANDROID Version : 9 Pie __ RAM - 6GB __Remove Userlocks+Frp

Lock
Done Without Any Risk Of Stuck On Logo All Job Successfully Done Ufi-Box Dr.Research-Center-Team

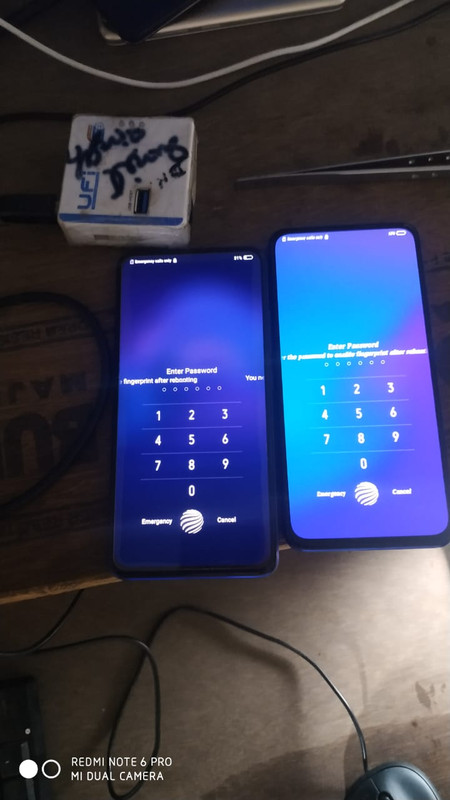

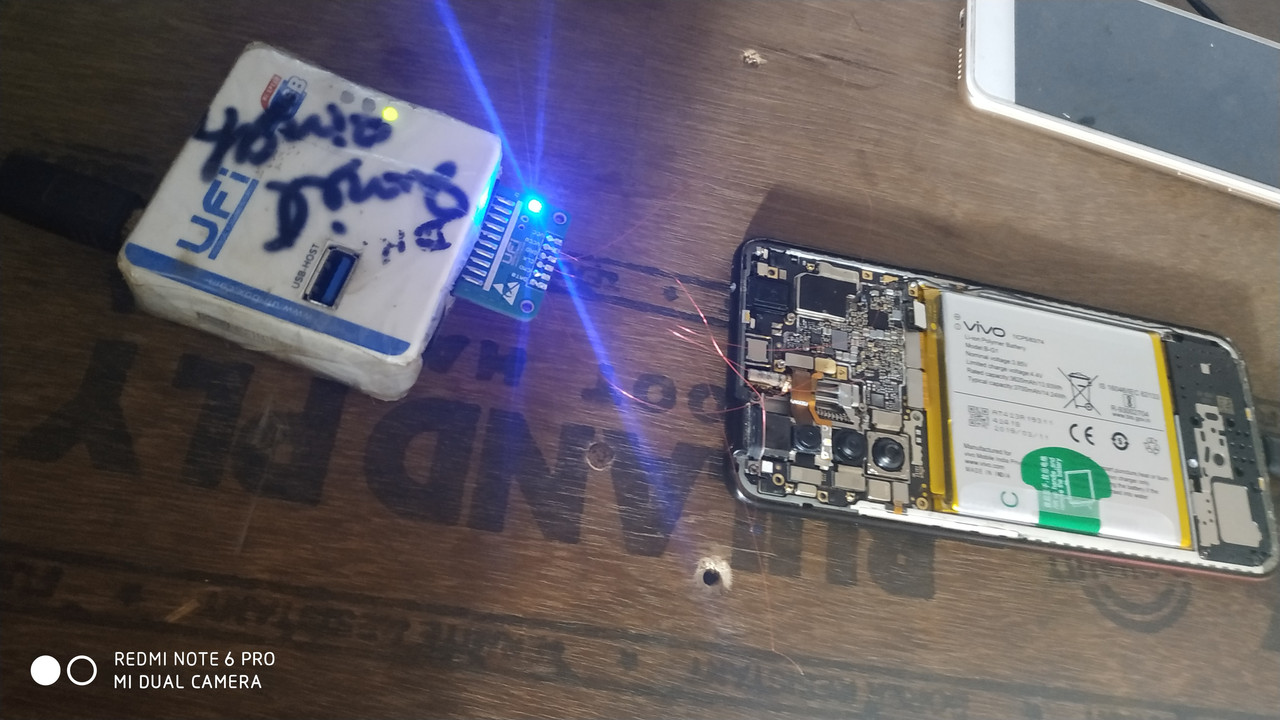

IDENTFY EMMC ERROR

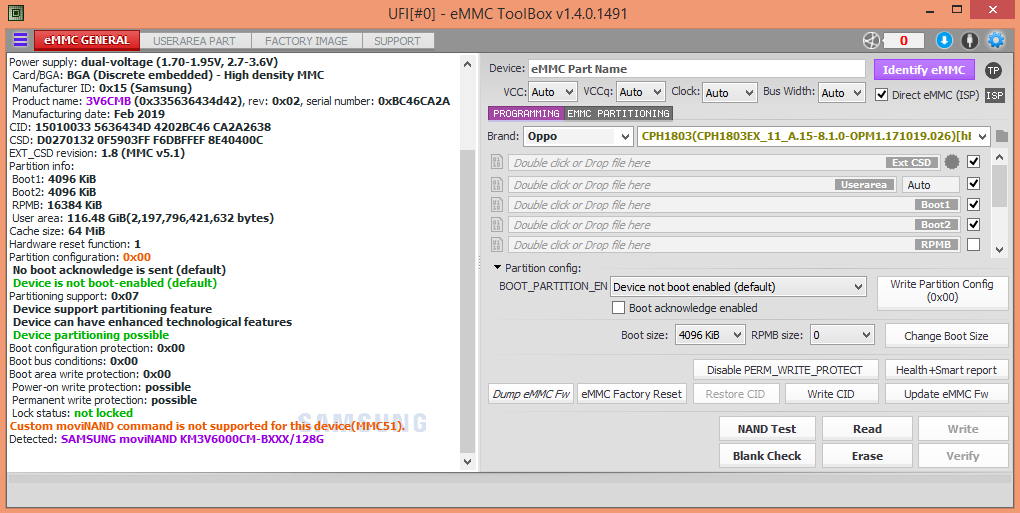

:Y::Y: IDENTFY EMMC INFORMATION:G::G:

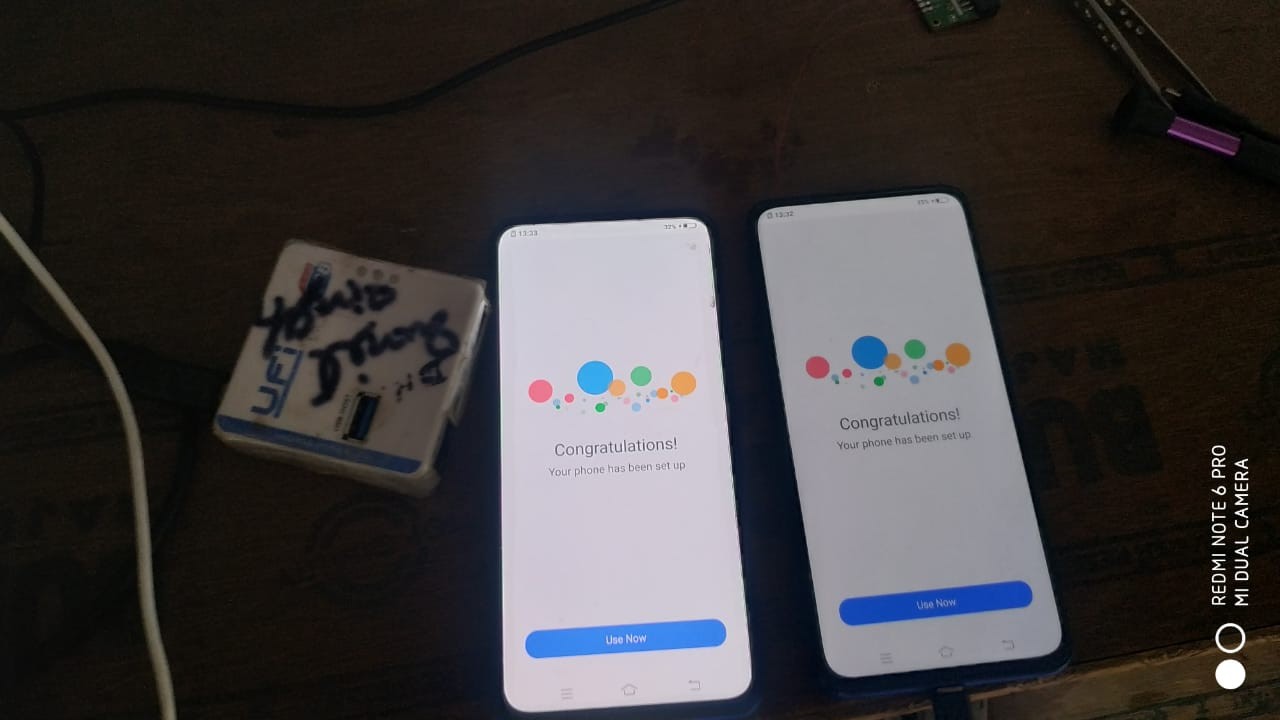

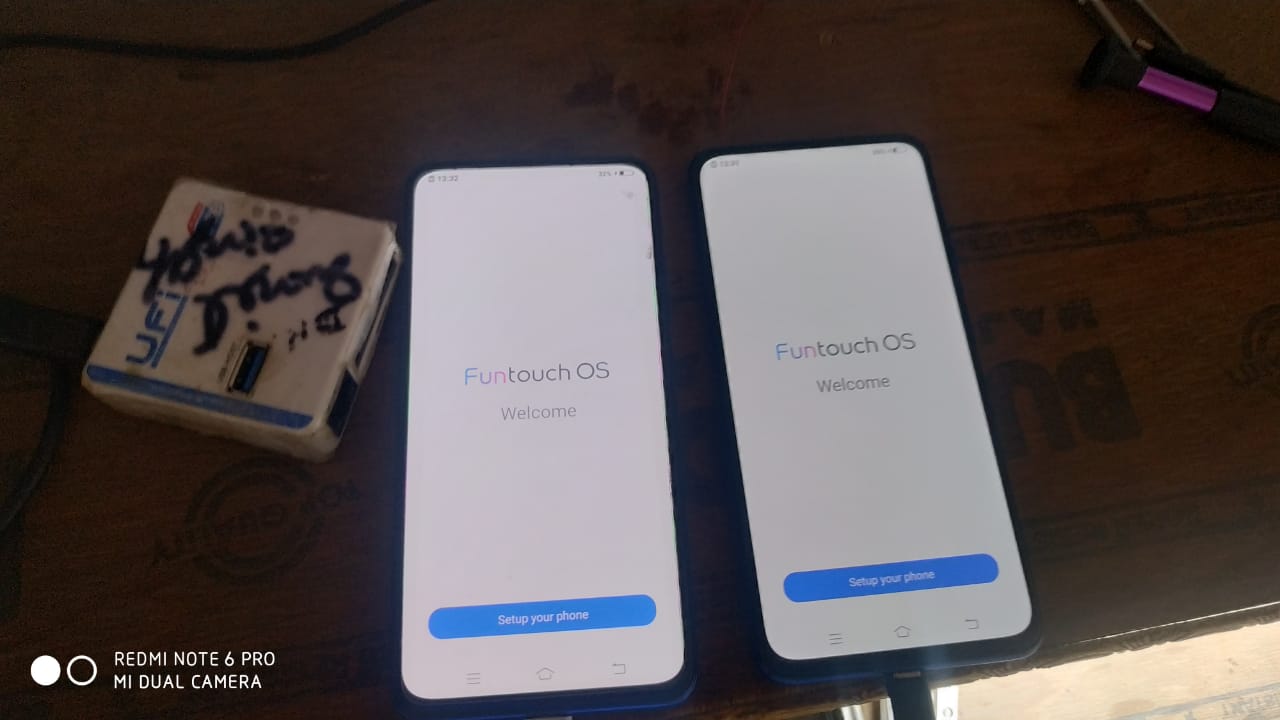

Factory Reset Done

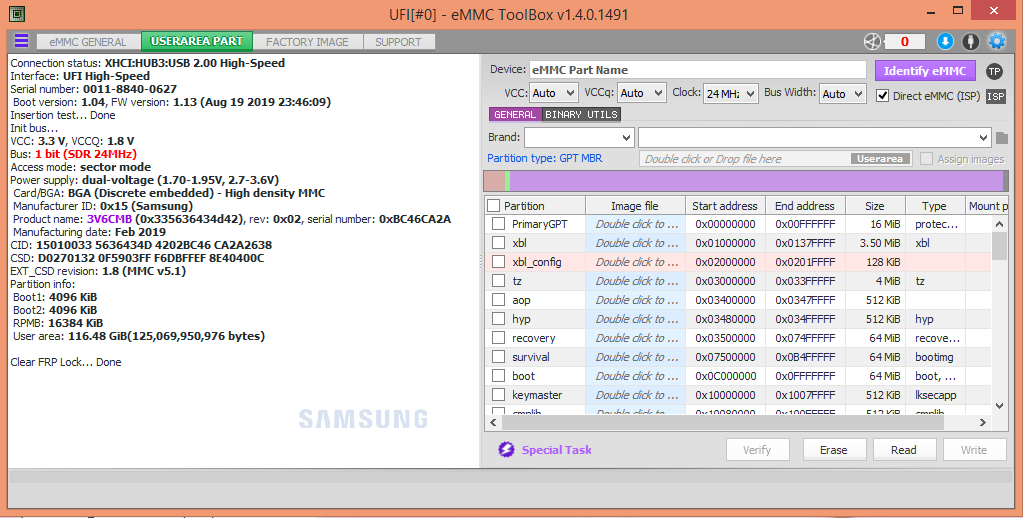

Clear FRP Lock Done (Google Account)

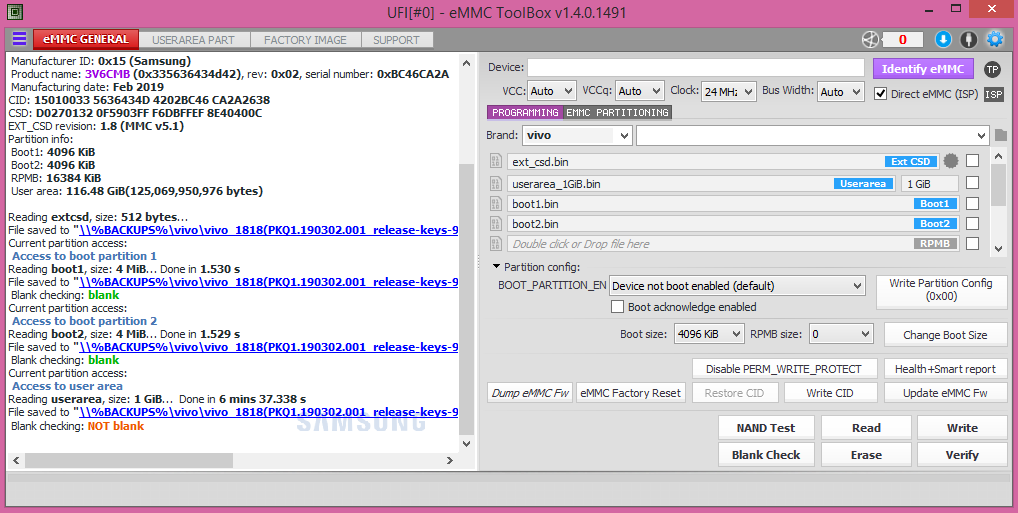

DUMP









Dr.Research-Center-Team


Al-Amin

Junior Member
Aug 16, 2017
1
0
Mirpur,Dhaka,1216,Bangladesh
Skype
alamin.com
VIVO V15 PRO ( VIVO-1818 ) PD1832F_EX_A_1.23.10___ ANDROID Version : 9 Pie __ RAM - 6GB __Remove Userlocks+Frp

Lock
Done Without Any Risk Of Stuck On Logo All Job Successfully Done Ufi-Box Dr.Research-Center-Team





IDENTFY EMMC ERROR



:Y::Y: IDENTFY EMMC INFORMATION:G::G:



Factory Reset Done



Clear FRP Lock Done (Google Account)






DUMP







Dr.Research-Center-Team
Brother. Please Share isp and dump with us


R41011

Member
Sep 7, 2019
6
1
VIVO V15 PRO ( VIVO-1818 ) PD1832F_EX_A_1.23.10___ ANDROID Version : 9 Pie __ RAM - 6GB __Remove Userlocks+Frp

Lock
Done Without Any Risk Of Stuck On Logo All Job Successfully Done Ufi-Box Dr.Research-Center-Team





IDENTFY EMMC ERROR



:Y::Y: IDENTFY EMMC INFORMATION:G::G:



Factory Reset Done



Clear FRP Lock Done (Google Account)






DUMP








Dr.Research-Center-Team
DUMP LINK PLZ


GSMserver

Product Manager
Sep 10, 2018
7
0
Skype
gsmserver_support
Hello!
User reported that same chip is detected in previous software version , but is not detected on latest Screenshot.
What it could be?


Dr.sunilsingh

Product Manager
Aug 2, 2018
321
562
india
Skype
[email protected]
Sonork ID
1681209
VIVO V15 PRO ( VIVO-1818 ) PD1832F_EX_A_1.23.10___ ANDROID Version : 9 Pie __ RAM - 6GB __Remove Userlocks+Frp

Lock Done Without Any Risk Of Stuck On Logo All Job Successfully Done Ufi-Box Dr.Research-Center-Team

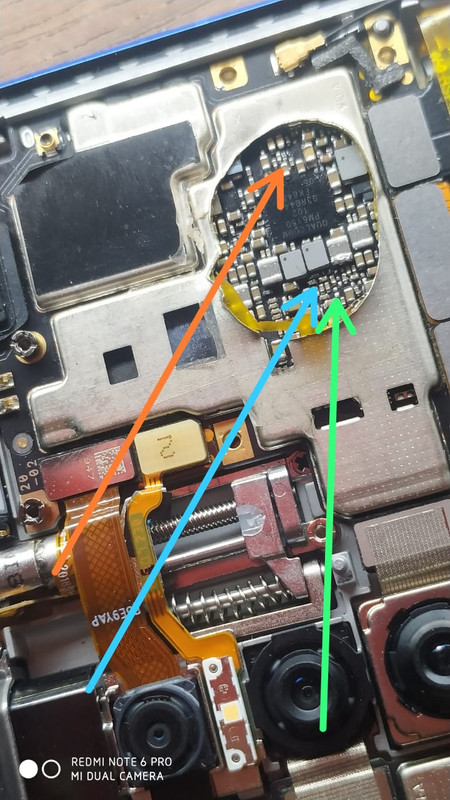

2 piss Userlocks+Frp


1 piss Dead

6653

Userlocks+Frp





6652

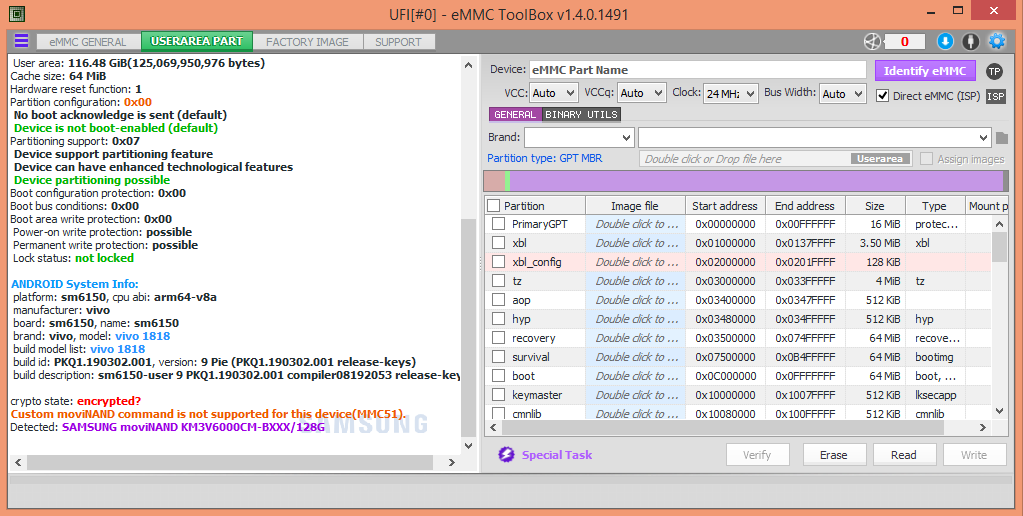

Connection status: XHCI:HUB3:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-0627
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0xBC46CA2A
Manufacturing date: Feb 2019
CID: 15010033 5636434D 4202BC46 CA2A2638
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x00
No boot acknowledge is sent (default)
Device is not boot-enabled (default)
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked

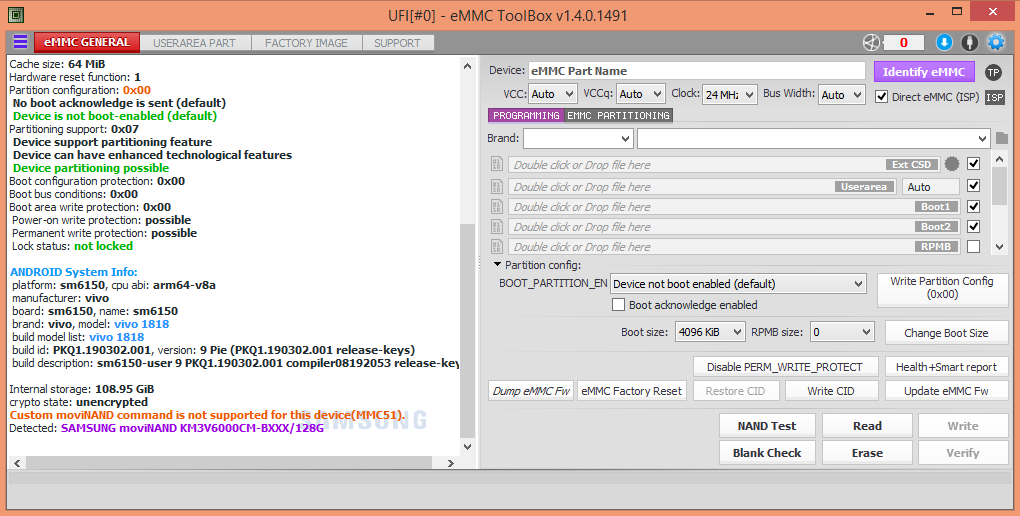

ANDROID System Info:
platform: sm6150, cpu abi: arm64-v8a
manufacturer: vivo
board: sm6150, name: sm6150
brand: vivo, model: vivo 1818
build model list: vivo 1818
build id: PKQ1.190302.001, version: 9 Pie (PKQ1.190302.001 release-keys)
build description: sm6150-user 9 PKQ1.190302.001 compiler08192053 release-keys

Internal storage: 108.95 GiB
crypto state: unencrypted
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KM3V6000CM-BXXX/128G




Connection status: XHCI:HUB3:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-0627
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0xBC46CA2A
Manufacturing date: Feb 2019
CID: 15010033 5636434D 4202BC46 CA2A2638
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)

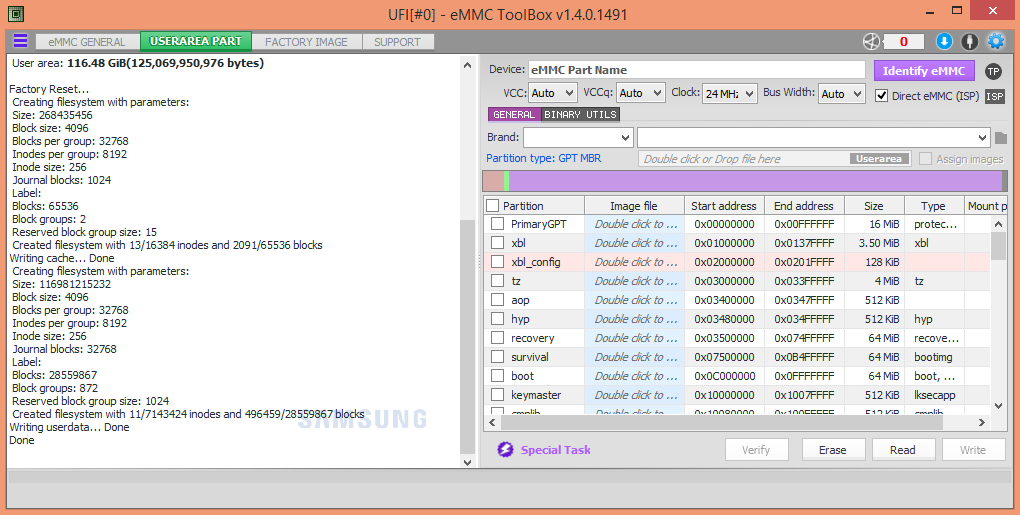

Factory Reset...
Creating filesystem with parameters:
Size: 268435456
Block size: 4096
Blocks per group: 32768
Inodes per group: 8192
Inode size: 256
Journal blocks: 1024
Label:
Blocks: 65536
Block groups: 2
Reserved block group size: 15
Created filesystem with 13/16384 inodes and 2091/65536 blocks
Writing cache... Done
Creating filesystem with parameters:
Size: 116981215232
Block size: 4096
Blocks per group: 32768
Inodes per group: 8192
Inode size: 256
Journal blocks: 32768
Label:
Blocks: 28559867
Block groups: 872
Reserved block group size: 1024
Created filesystem with 11/7143424 inodes and 496459/28559867 blocks
Writing userdata... Done
Done












Dead Fix
