Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,183
India
Sonork ID
100.1614172
Samsung Galaxy J4Plus(J415F) Always Auto Recovery Mode Problem

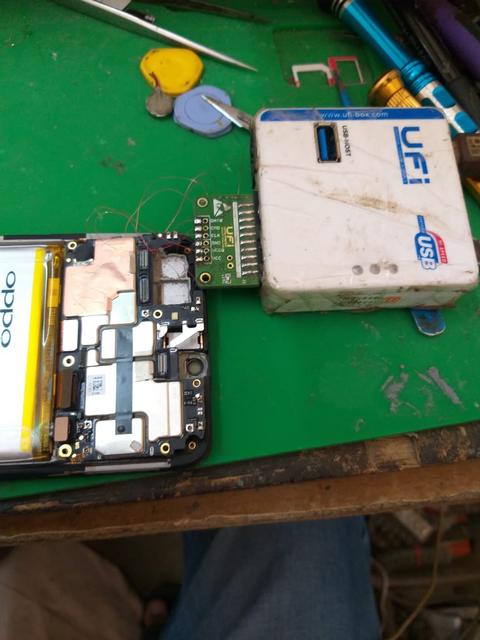

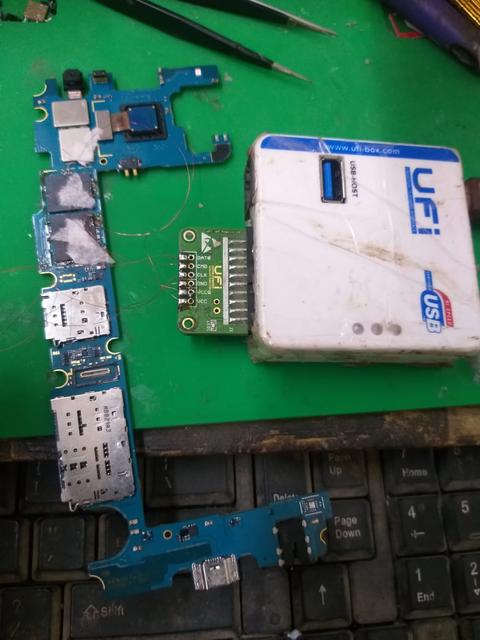

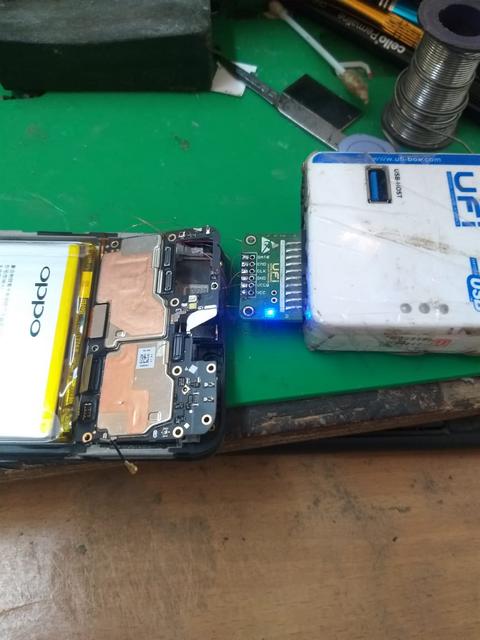

Handset Successfully Alive BY Repair Emmc With Ufi-Box Via Isp Connection

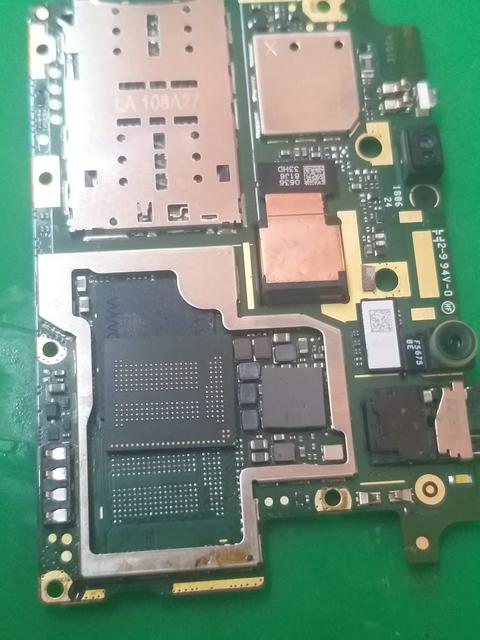

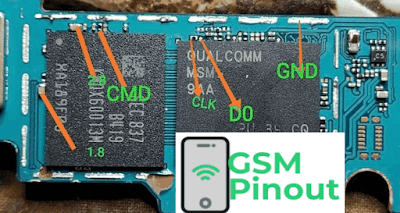

Emmc Isp Pinout

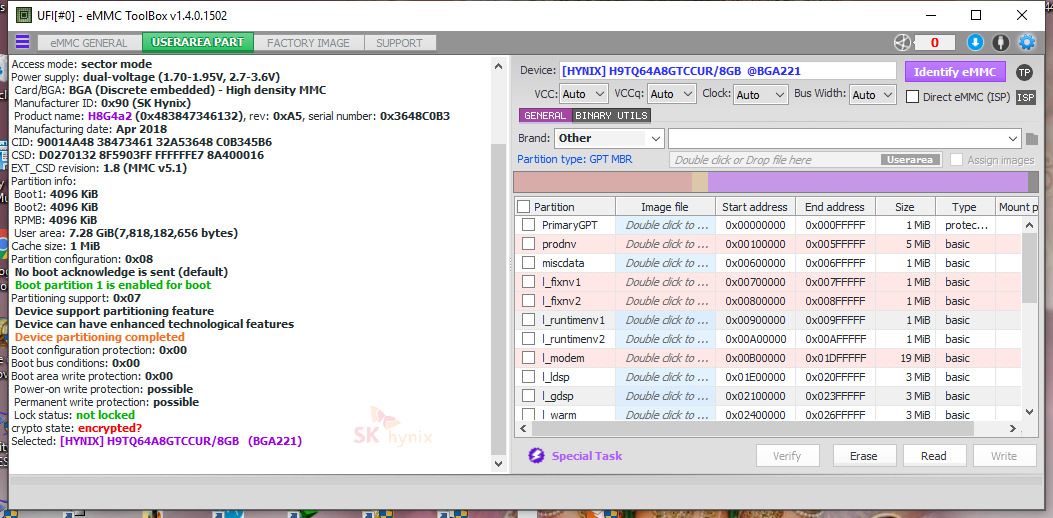

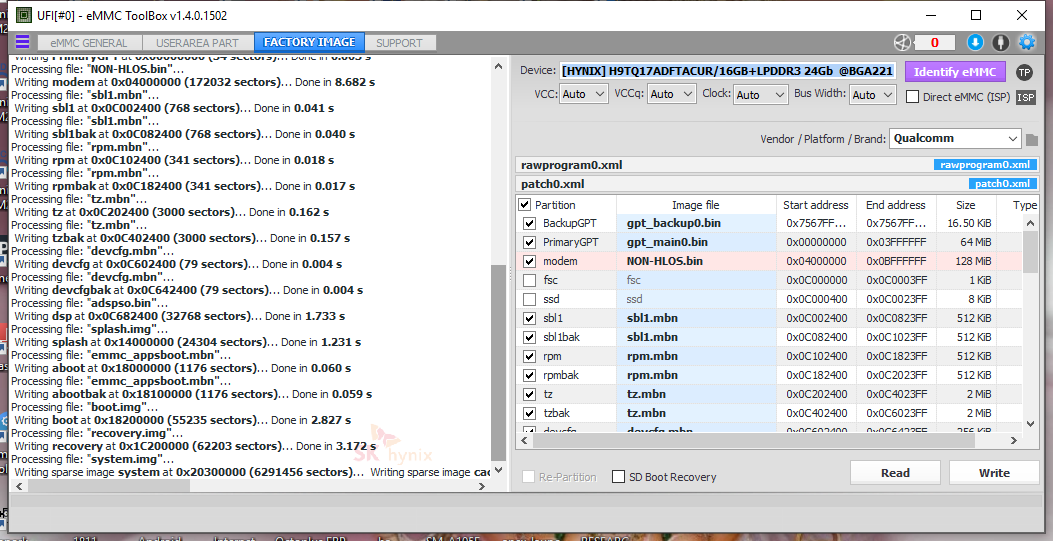

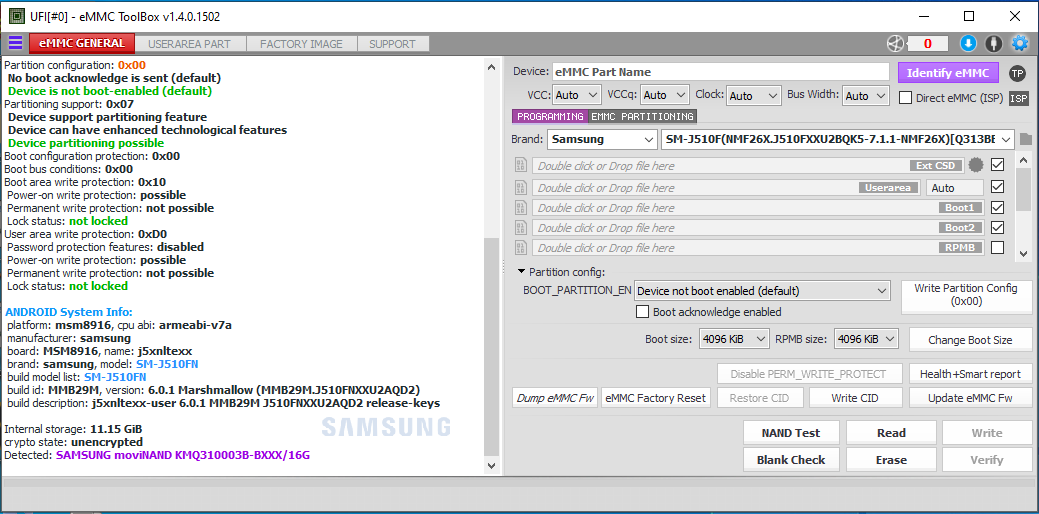

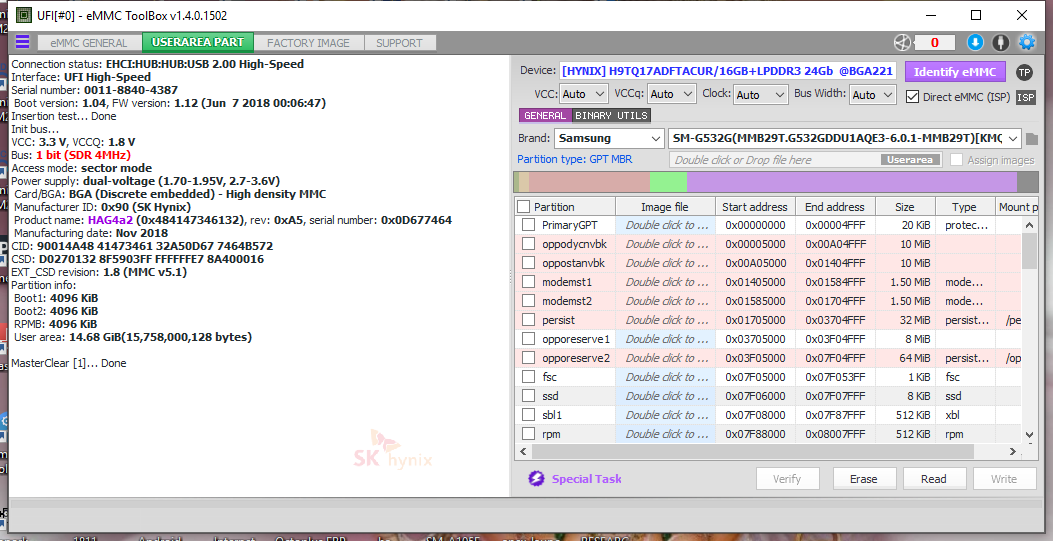

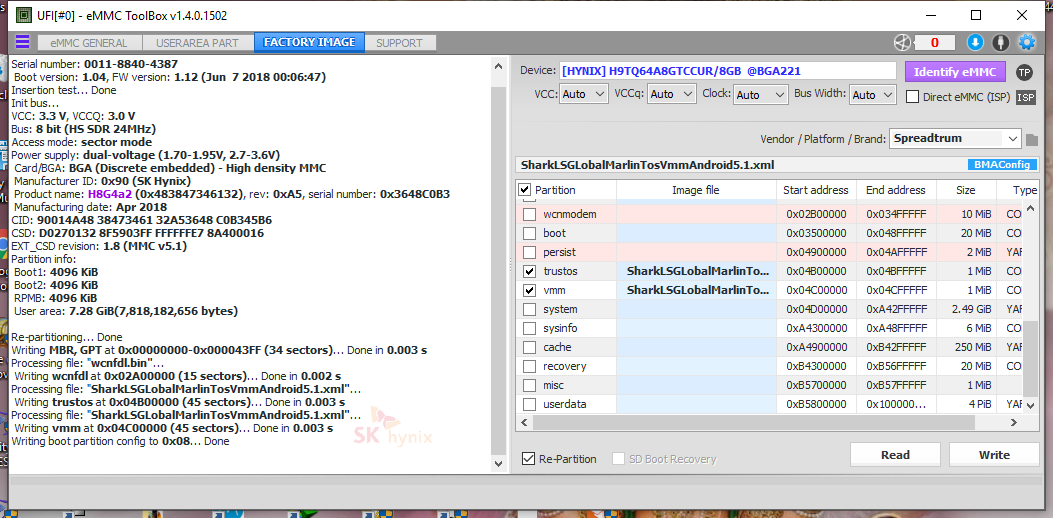

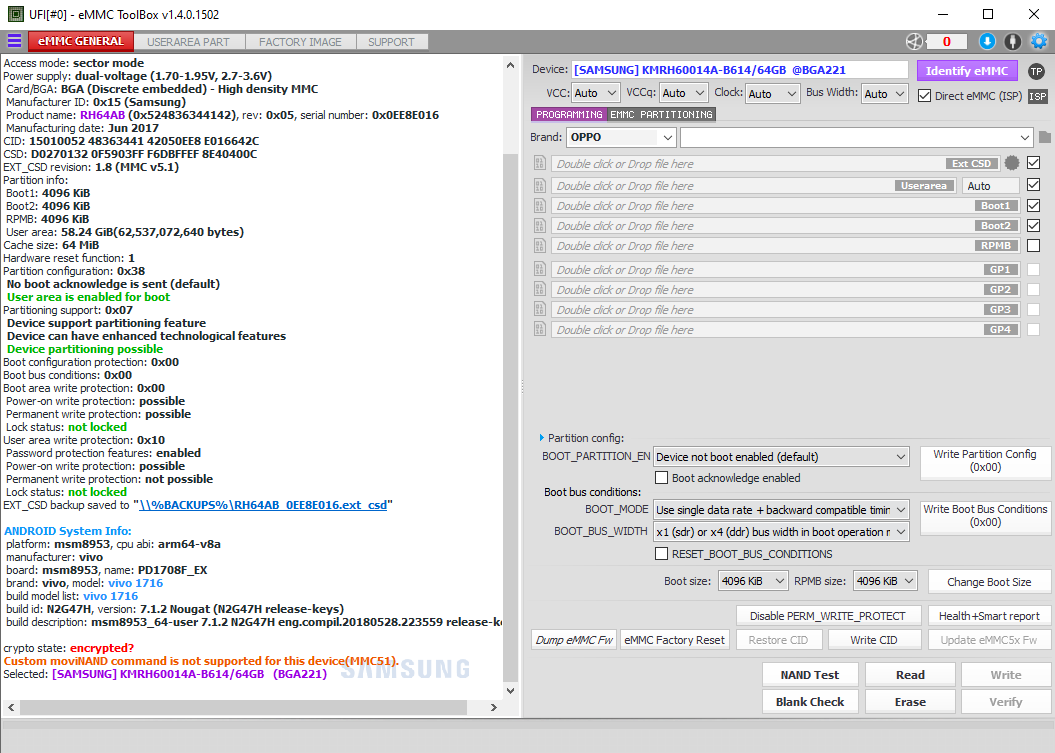

Ufi-Box Log

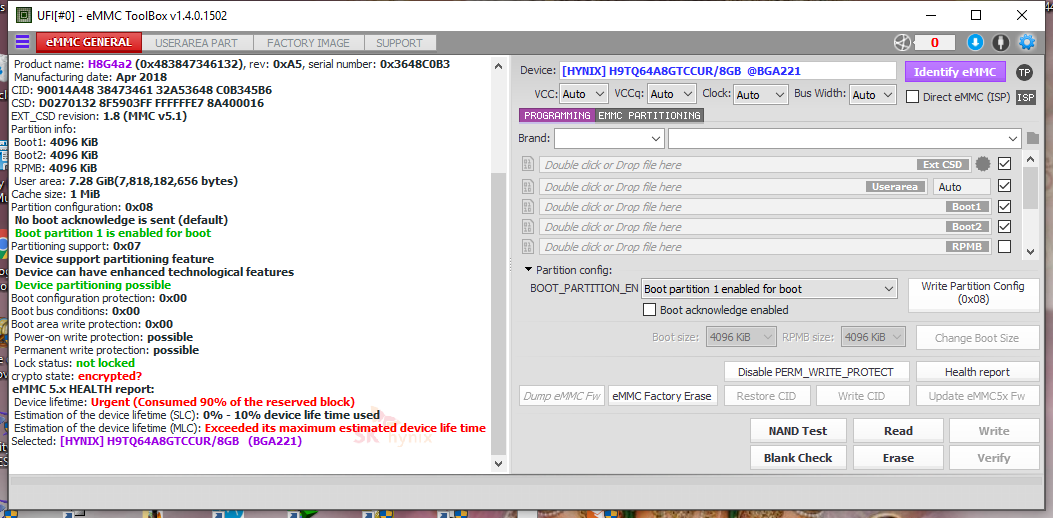

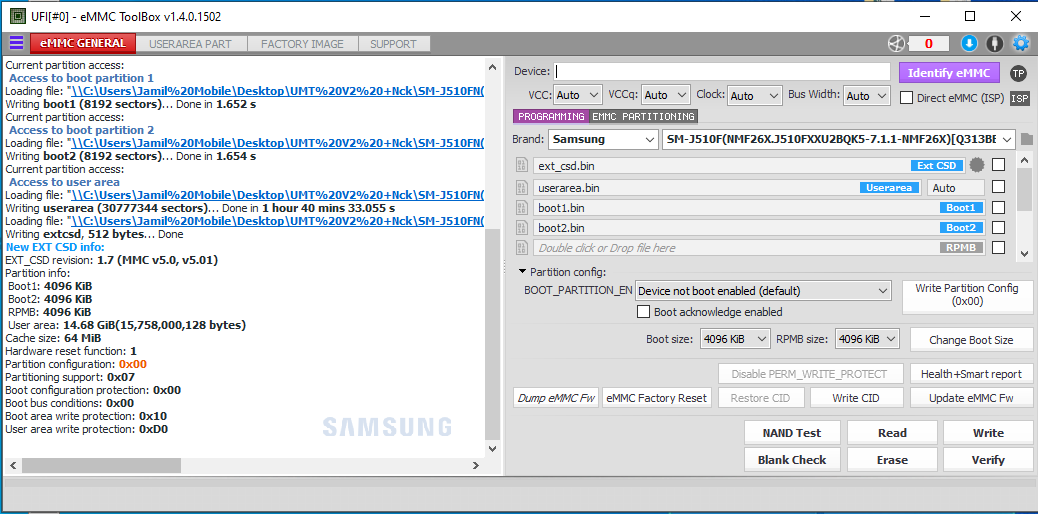

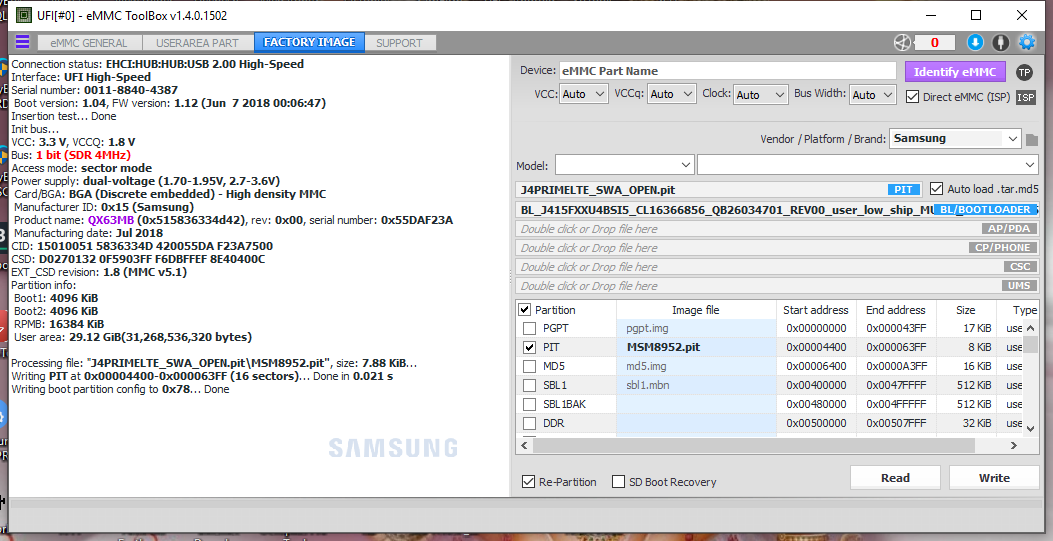

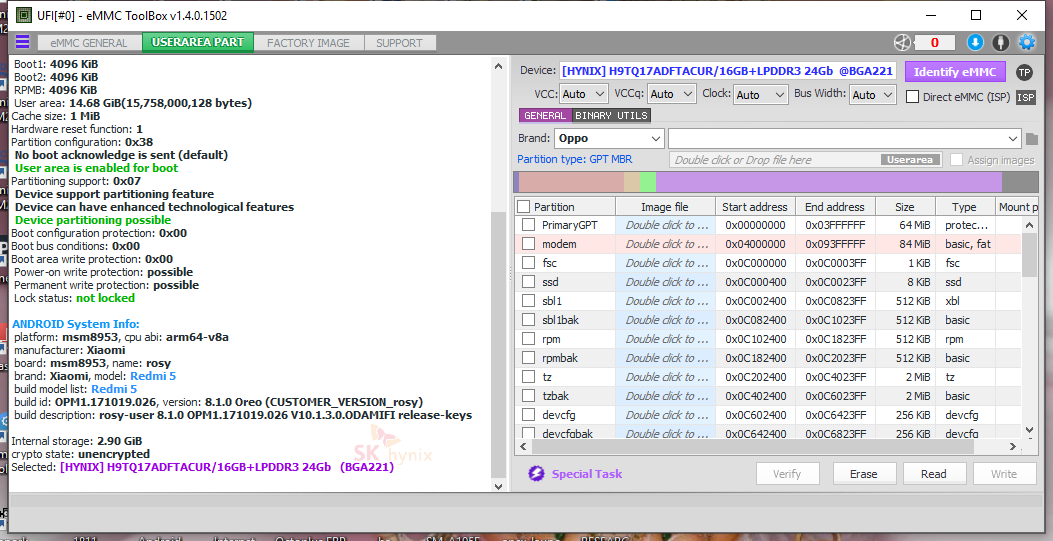

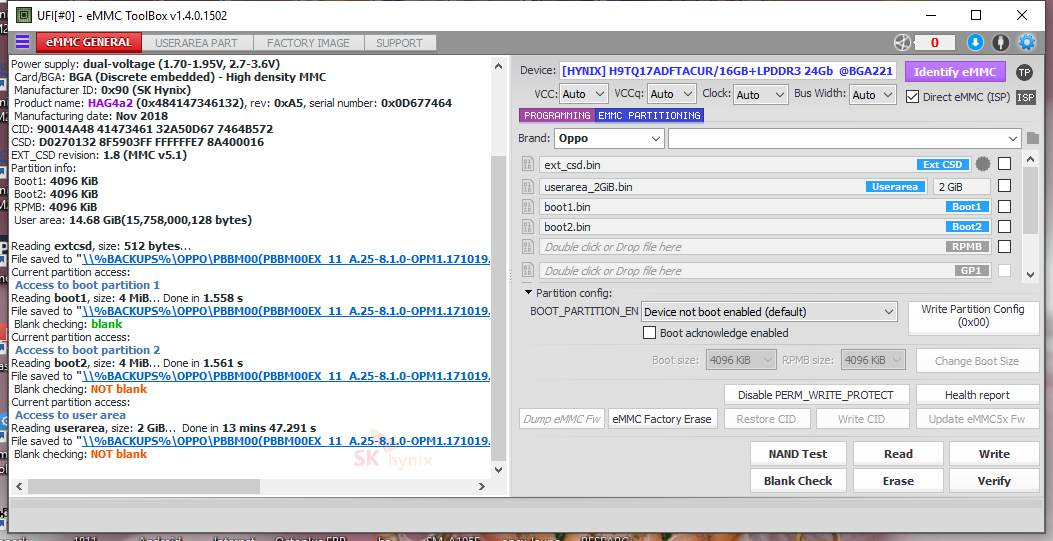

After REpair Emmc Log

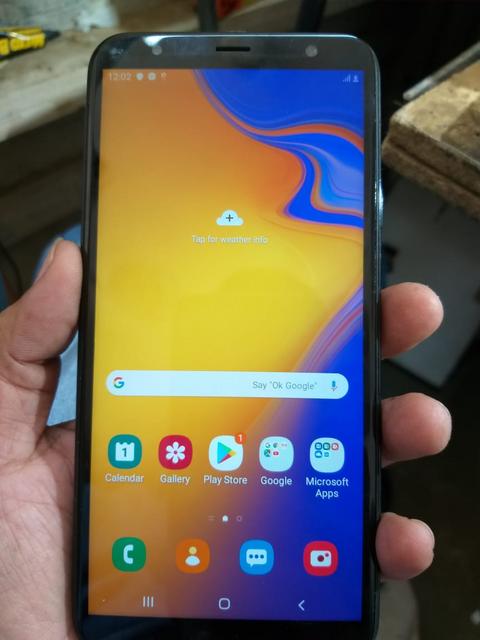

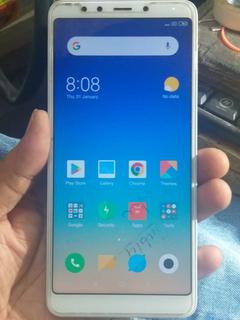

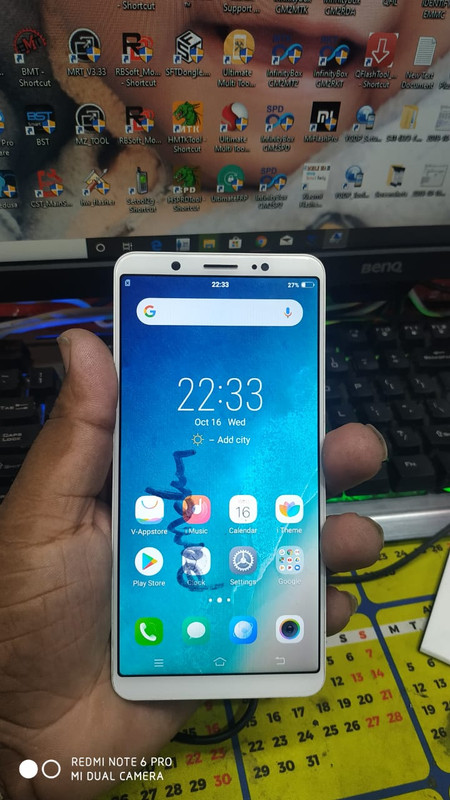

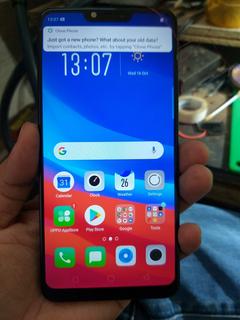

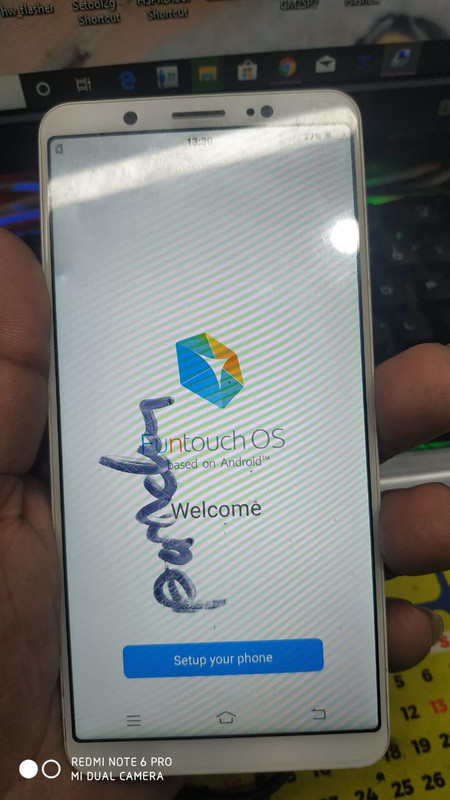

Handset Successfully Alive

Last edited:
  • Like
  • Love
Reactions: prince aftab, GSMSK, lpservice and 3 others
Dr.sunilsingh

Dr.sunilsingh

Friend's Martview
Aug 2, 2018
402
825
india
Skype
[email protected]
Sonork ID
1681209
  • Like
Reactions: Deepesh Sharma and shyam504
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,183
India
Sonork ID
100.1614172
  • Like
Reactions: samzhen_23, ANDROID BOSS, prince aftab and 2 others
ferouzkassim

ferouzkassim

Active Member
Oct 11, 2018
51
34
Uganda
Skype
ferouz_kassim
oppo f11 pro offline job remove password done

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x90 (SK Hynix)
Product name: hC8aP (0x68433861503e), rev: 0x03, serial number: 0x484A6625
Manufacturing date: Feb 2019
CID: 90014A68 43386150 3E03484A 6625261C
CSD: D0270032 8F5903FF FFFFFFEF 8E400042
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 2 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\hC8aP_484A6625.ext_csd"

ANDROID System Info:
platform: MT6771, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6771_18531, name: CPH1969
brand: OPPO, model: CPH1969 (OPPO F11 Pro)
build model list: CPH1985 (OPPO R15), CPH1987 (OPPO F11 Pro), CPH1969 (OPPO F11 Pro)
build id: PPR1.180610.011, version: 9 Pie (CPH1969EX_11_A.23)
build description: full_oppo6771_18531-user 9 PPR1.180610.011 eng.root.20190824.180751 release-keys

crypto state: encrypted?
crypto state: encrypted?

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x90 (SK Hynix)
Product name: hC8aP (0x68433861503e), rev: 0x03, serial number: 0x484A6625
Manufacturing date: Feb 2019
CID: 90014A68 43386150 3E03484A 6625261C
CSD: D0270032 8F5903FF FFFFFFEF 8E400042
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 58.24 GiB(62,537,072,640 bytes)

[Oppo] MasterClear [1]... Done

ferouzkassim

ferouzkassim

Active Member
Oct 11, 2018
51
34
Uganda
Skype
ferouz_kassim
OPPO A5 (model: PBAM00 (OPPO A5)) CHINA VERSION USERDATA RESET DONE

NO ONLINE TOOL CAN DO ONLY OPTION IS THROUGH EMMC / ISP

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0x73C0DED3
Manufacturing date: Nov 2018
CID: 15010052 48363441 420573C0 DED3B5B0
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\RH64AB_73C0DED3.ext_csd"

ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: PBAM00
brand: OPPO, model: PBAM00 (OPPO A5)
build model list: PBAM00 (OPPO A5)
build id: OPM1.171019.026, version: 8.1.0 Oreo (PBAM00_11_A.18)
build description: msm8953_64-user 8.1.0 OPM1.171019.026 eng.root.20190330.172044 release-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMRH60014A-B614/64GB (BGA221)


Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0x73C0DED3
Manufacturing date: Nov 2018
CID: 15010052 48363441 420573C0 DED3B5B0
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)

MasterClear [2]... Done

  • Like
Reactions: Ngoclamgsm
ferouzkassim

ferouzkassim

Active Member
Oct 11, 2018
51
34
Uganda
Skype
ferouz_kassim
OPPO R15 (OPPO, model: PAAT00 (OPPO R15 )

CHINA VERSION USERDATA RESET DONE

NO ONLINE TOOL CAN DO ONLY OPTION IS THROUGH EMMC / ISP




Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x54BEC4D6
Manufacturing date: Apr 2018
CID: 15010033 5636434D 420254BE C4D64524
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\3V6CMB_54BEC4D6.ext_csd"

ANDROID System Info:
platform: sdm660, cpu abi: arm64-v8a
manufacturer: OPPO
board: sdm660, name: PAAT00
brand: OPPO, model: PAAT00 (OPPO R15 梦镜版)
build model list: PAAM00 (OPPO R15 梦镜版)
build id: OPM1.171019.011, version: 8.1.0 Oreo (PAAT00_11_A.28)
build description: sdm660_64-user 8.1.0 OPM1.171019.011 eng.root.20190816.013703 release-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KM3V6000CM-BXXX/128G


Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x54BEC4D6
Manufacturing date: Apr 2018
CID: 15010033 5636434D 420254BE C4D64524
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)

MasterClear [2]... Done

  • Like
Reactions: ymmij
