Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

mobilecarekgf

Member
Nov 24, 2019
8
3

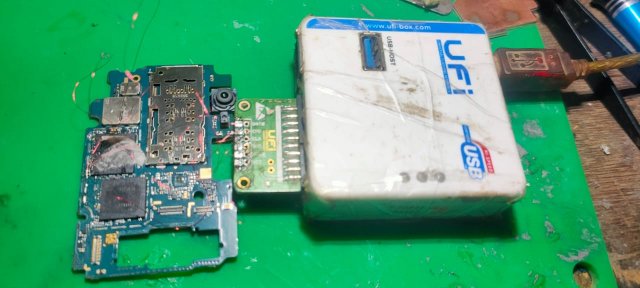

OPPO F11 ( CPH1911 ) Dead Handset ( Other Shop Return ) Successfully By UFI BOX










Dr.Research-Center-Team

if it is cph1911 then in brand colom of ufi i see cph1803 why ?
mine still dead cph1911 set came with lock
did factory reset and got error and set dead
then write ext csd still dead please help


vkdsai

Junior Member
Mar 11, 2019
4
0
can u give me a260g isp pinout cause i cant remove emmc from bord
plz give me a favor plz


Hassani143143

Junior Member
Mar 27, 2017
2
0
Pakistan
oppo r15 chinese model password remove done(ufi emmc) with no risk

Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... CLK not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0xD31CC817
Manufacturing date: Mar 2018
CID: 15010033 5636434D 4202D31C C81735B8
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\3V6CMB_D31CC817.ext_csd"

ANDROID System Info:
platform: sdm660, cpu abi: arm64-v8a
manufacturer: OPPO
board: sdm660, name: PAAM00
brand: OPPO, model: OPPO PAAM00(OPPO R15 梦镜版)
build id: OPM1.171019.011, version: 8.1.0 Oreo (PAAM00_11_A.21_181205)
build description: sdm660_64-user 8.1.0 OPM1.171019.011 eng.root.20181205.154632 dev-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KM3V6000CM-BXXX/128G



Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... CLK not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0xD31CC817
Manufacturing date: Mar 2018
CID: 15010033 5636434D 4202D31C C81735B8
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)

Factory Reset...
Creating filesystem... Done.
Writing cache... Done.
Creating filesystem... Done.
Writing userdata... Done.
Done.
Bro You Have oppo r15 Chinese model paam00 Dump file plz help me I need dump file


cellbhai

No Life Poster
Sep 26, 2018
305
96
OPPO F7,A7,A1K PATTERN AND FRP DONE
OPPO CPH 1819 PATTERN DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
[Oppo] MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
[Oppo] MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Reading cache at 0x19A800000-0x1B57FFFFF size: 432 MiB... cmd response: 0x0, card status: 0x0, card state: 0 (Card is in unknown state)
OS error code: 0x000003E3(The I/O operation has been aborted because of either a thread exit or an application request)
Operation aborted by user request.
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: MT6771, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6771_17331, name: CPH1819
brand: OPPO, model: CPH1819 (OPPO F7)
build model list: CPH1811 (A73), CPH1837 (A73), CPH1839 (A73), CPH1835 (OPPO R15), CPH1819 (OPPO F7)
build id: PPR1.180610.011, version: 9 Pie (CPH1819EX_11_C.10)
build description: full_oppo6771_17331-user 9 PPR1.180610.011 eng.root.20191119.143355 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMDH6000DM-BXXX/64G

OPPOCPH 1901 PATTERN AND FRP DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\RH64AB_A12E9B7F.ext_csd"
ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: CPH1901
brand: OPPO, model: CPH1901 (OPPO A7)
build model list: CPH1901 (OPPO A7)
build id: OPM1.171019.026, version: 9 Pie (CPH1901EX_11_A.10)
build description: msm8953_64-user 8.1.0 OPM1.171019.026 eng.root.20190823.123130 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMRH60014A-B614/64GB (BGA221)
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: CPH1901
brand: OPPO, model: CPH1901 (OPPO A7)
build model list: CPH1901 (OPPO A7)
build id: OPM1.171019.026, version: 9 Pie (CPH1901EX_11_A.10)
build description: msm8953_64-user 8.1.0 OPM1.171019.026 eng.root.20190823.123130 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMRH60014A-B614/64GB (BGA221)

OPPO CPH 1923 PATTERN AND FRP DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\QD63MB_9FB2076B.ext_csd"
ANDROID System Info:
platform: MT6765, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6762_18540, name: CPH1923
brand: OPPO, model: CPH1923 (OPPO A1k)
build model list: CPH1923 (OPPO A1k)
build id: PPR1.180610.011, version: 9 Pie (CPH1923EX_11_A.19)
build description: full_oppo6762_18540-user 9 PPR1.180610.011 eng.root.20190716.170229 release-keys
crypto state: encrypted?
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMQD60003M-BXXX/32G
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
[Oppo] MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
[Oppo] MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: MT6765, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6762_18540, name: CPH1923
brand: OPPO, model: CPH1923 (OPPO A1k)
build model list: CPH1923 (OPPO A1k)
build id: PPR1.180610.011, version: 9 Pie (CPH1923EX_11_A.19)
build description: full_oppo6762_18540-user 9 PPR1.180610.011 eng.root.20190716.170229 release-keys
crypto state: encrypted?
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMQD60003M-BXXX/32G
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++


rsm7161

Junior Member
Mar 16, 2019
2
0
hello team, i have problem with ufi plz help when i connect mtk chipset mobile to ufi android toolbox then it take driver but stuck only on connecting brom plz help and reply its urgent


Attachments
