Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

Deepesh Sharma

No Life Poster
 : Apr 4, 2017
 : 1,731
 : 2,540
 :  India
Sonork ID
 :  100.1614172
Honor 7A(AUM-L20) Always Fastboot Mode During Frp Remove By Other Technician Flashing Failed

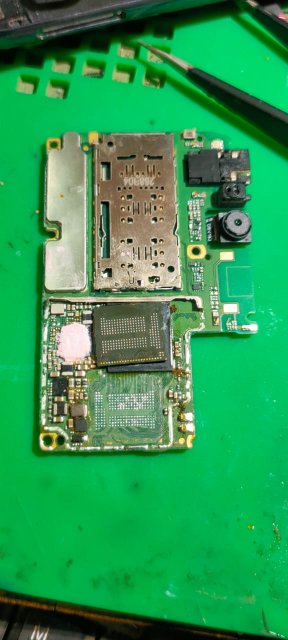

Emmc Successfully Repaired Set Alive Done By Ufi-Box



Emmc Reprogram

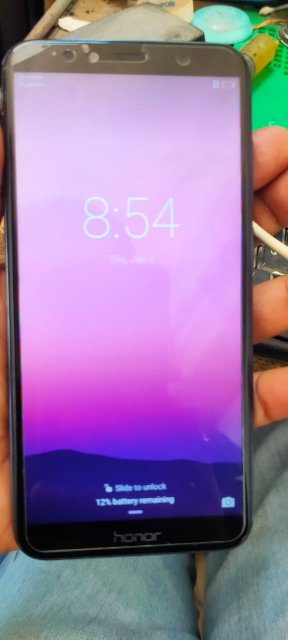

Set Sucessfully Alive

Special Thank To My N Jerry'S Friend Mentor Kamal Singla N Dr. Sunil Singh For Help Me find Correct FW. Ver And For His Guide.


ferouzkassim

Active Member
 : Oct 11, 2018
 : 47
 : 32
 :  Uganda
Skype
 :  ferouz_kassim
oppo a7x
chinese variant
PBCT00 (OPPO A7x), password remove done


Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x13 (Micron)
Product name: S0J9K9 (0x53304a394b39), rev: 0x10, serial number: 0x0556075C
Manufacturing date: Aug 2018
CID: 13014E53 304A394B 39100556 075C85C4
CSD: D05F0132 8F5913FF FFFFFFEF 964000A8
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,074,145,280 bytes)
Cache size: 2 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\S0J9K9_0556075C.ext_csd"

ANDROID System Info:
platform: MT6771, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6771_18011, name: PBBM00
brand: OPPO, model: PBBM00 (OPPO A7x)
build model list: PBCM00 (OPPO A7x), PBCT00 (OPPO A7x), PBBM00 (OPPO A7x)
build id: PPR1.180610.011, version: 9 Pie (PBBM00_11_C.10)
build description: full_oppo6771_18011-user 9 PPR1.180610.011 eng.root.20191114.225659 release-keys

crypto state: encrypted?


Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x13 (Micron)
Product name: S0J9K9 (0x53304a394b39), rev: 0x10, serial number: 0x0556075C
Manufacturing date: Aug 2018
CID: 13014E53 304A394B 39100556 075C85C4
CSD: D05F0132 8F5913FF FFFFFFEF 964000A8
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,074,145,280 bytes)

[Oppo] MasterClear [1]... Done

Reactions: Deepesh Sharma

ferouzkassim

Active Member
 : Oct 11, 2018
 : 47
 : 32
 :  Uganda
Skype
 :  ferouz_kassim
vivo v15 pro password remove done

Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... CLK not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x0E9D6A61
Manufacturing date: Apr 2019
CID: 15010033 5636434D 42020E9D 6A6146D2
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x00
No boot acknowledge is sent (default)
Device is not boot-enabled (default)
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\3V6CMB_0E9D6A61.ext_csd"

ANDROID System Info:
platform: sm6150, cpu abi: arm64-v8a
manufacturer: vivo
board: sm6150, name: sm6150
brand: vivo, model: vivo 1818
build model list: vivo 1818
build id: PKQ1.190302.001, version: 9 Pie (PKQ1.190302.001 release-keys)
build description: sm6150-user 9 PKQ1.190302.001 compiler12161832 release-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KM3V6000CM-BXXX/128G


Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x0E9D6A61
Manufacturing date: Apr 2019
CID: 15010033 5636434D 42020E9D 6A6146D2
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)

MasterClear [2]... Done

Reactions: samzhen_23

ymmij

Junior Member
 : Oct 16, 2019
 : 1
 : 0
OPPO R15 (OPPO, model: PAAT00 (OPPO R15 )

CHINA VERSION USERDATA RESET DONE

NO ONLINE TOOL CAN DO ONLY OPTION IS THROUGH EMMC / ISP




Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x54BEC4D6
Manufacturing date: Apr 2018
CID: 15010033 5636434D 420254BE C4D64524
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\3V6CMB_54BEC4D6.ext_csd"

ANDROID System Info:
platform: sdm660, cpu abi: arm64-v8a
manufacturer: OPPO
board: sdm660, name: PAAT00
brand: OPPO, model: PAAT00 (OPPO R15 梦镜版)
build model list: PAAM00 (OPPO R15 梦镜版)
build id: OPM1.171019.011, version: 8.1.0 Oreo (PAAT00_11_A.28)
build description: sdm660_64-user 8.1.0 OPM1.171019.011 eng.root.20190816.013703 release-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KM3V6000CM-BXXX/128G


Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: 3V6CMB (0x335636434d42), rev: 0x02, serial number: 0x54BEC4D6
Manufacturing date: Apr 2018
CID: 15010033 5636434D 420254BE C4D64524
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 116.48 GiB(125,069,950,976 bytes)

MasterClear [2]... Done
ISP PLZZ,,TNX


ferouzkassim

Active Member
 : Oct 11, 2018
 : 47
 : 32
 :  Uganda
Skype
 :  ferouz_kassim
OPPO, model: PBBM00 (PBBM00) Realme c1 china version password reset done

Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... CLK not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: GP6BMB (0x475036424d42), rev: 0x01, serial number: 0xB103D38A
Manufacturing date: Aug 2019
CID: 15010047 5036424D 4201B103 D38A86B6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\GP6BMB_B103D38A.ext_csd"

ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: PBBM00
brand: OPPO, model: PBBM00 (PBBM00)
build model list: PBBM00 (PBBM00)
build id: OPM1.171019.026, version: 8.1.0 Oreo (PBBM00_11_A.16)
build description: S88051AA1-user 8.1.0 OPM1.171019.026 eng.root.20190919.211818 release-keys

crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMGP6000BM-BXXX/64G


Connection status: EHCI:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4224
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... CLK not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: GP6BMB (0x475036424d42), rev: 0x01, serial number: 0xB103D38A
Manufacturing date: Aug 2019
CID: 15010047 5036424D 4201B103 D38A86B6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 58.24 GiB(62,537,072,640 bytes)

MasterClear [2]... Done
